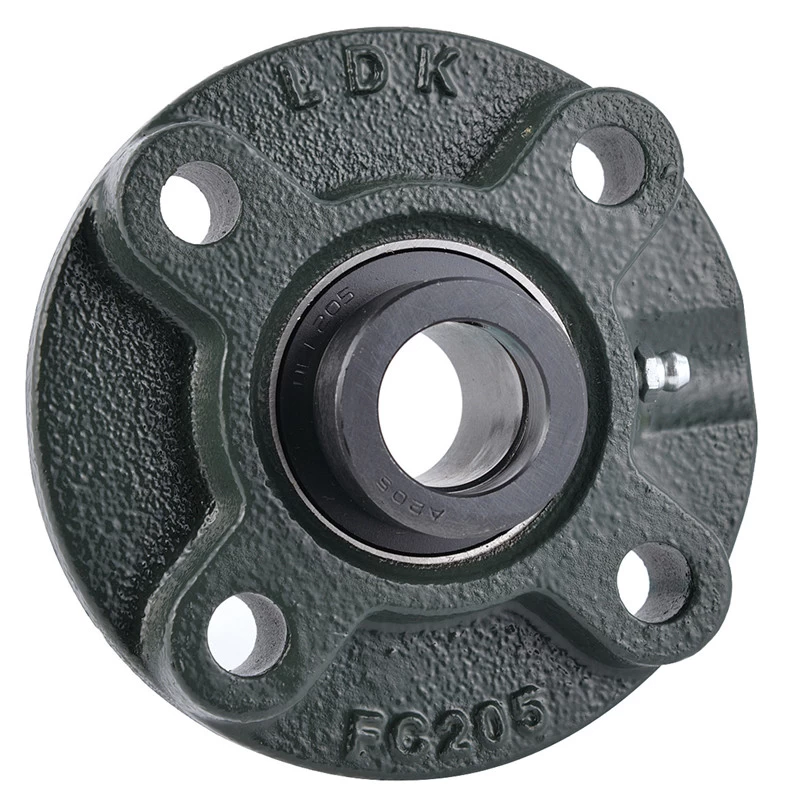

Flange Cartridge Bearing Units NAFC2

NAFC  Standard duty,Wider inner ring bearing, Eccentric locking,Cast gray iron housing .

Cast DUCTILE iron housing available upon request.

Facebook Twitter Pinterest LinkedIn 分享

Flange Cartridge Bearing Housing NAFC206

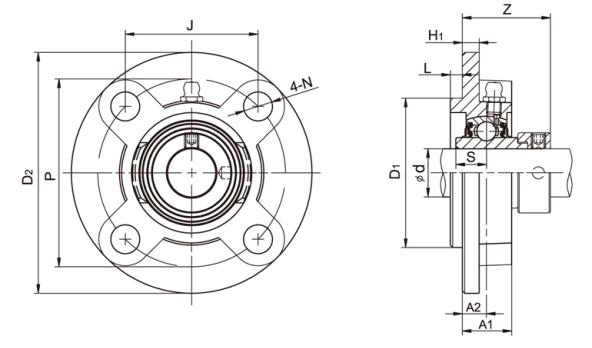

Unit No. Shaft Dia Dimensions (mm) Bolt Size (mm) Weight (kg)
d D2 P J A2 N L H1 A1 D1 S z
(in) (mm)
NAFC201S    12 90 70 49.5 10 10 4 5 19 55 13.9 33.4 M8 0.6
NAFC201-8S  1/2    90 70 49.5 10 10 4 5 19 55 13.9 33.4 M8 0.6
NAFC202S    15 90 70 49.5 10 10 4 5 19 55 13.9 33.4 M8 0.6
NAFC202-10S  5/8    90 70 49.5 10 10 4 5 19 55 13.9 33.4 M8 0.6
NAFC203S    17 90 70 49.5 10 10 4 5 19 55 13.9 33.4 M8 0.6
NAFC203-11S 11/16   90 70 49.5 10 10 4 5 19 55 13.9 33.4 M8 0.6
NAFC201    12 100 78 55.1 10 12 5 7 20.5 62 17.1 36.5 M10 0.83
NAFC201-8  1/2    100 78 55.1 10 12 5 7 20.5 62 17.1 36.5 M10 0.83
NAFC202   15 100 78 55.1 10 12 5 7 20.5 62 17.1 36.5 M10 0.83
NAFC202-10  5/8    100 78 55.1 10 12 5 7 20.5 62 17.1 36.5 M10 0.83
NAFC203   17 100 78 55.1 10 12 5 7 20.5 62 17.1 36.5 M10 0.83
NAFC203-11  11/16    100 78 55.1 10 12 5 7 20.5 62 17.1 36.5 M10 0.83
NAFC204   20 100 78 55.1 10 12 5 7 20.5 62 17.1 36.5 M10 0.83
NAFC204-12 3/4   100 78 55.1 10 12 5 7 20.5 62 17.1 36.5 M10 0.83
NAFC205    25 115 90 63.6 10 12 6 7 21 70 17.5 36.9 M10 1.0
NAFC205-14  7/8   115 90 63.6 10 12 6 7 21 70 17.5 36.9 M10 1.0
NAFC205-15  15/16    115 90 63.6 10 12 6 7 21 70 17.5 36.9 M10 1.0
NAFC205-16 1   115 90 63.6 10 12 6 7 21 70 17.5 36.9 M10 1.0
NAFC206    30 125 100 70.7 10 12 8 8 23 80 18.3 40.1 M10 1.5
NAFC206-18  1-1/8    125 100 70.7 10 12 8 8 23 80 18.3 40.1 M10 1.5
NAFC206-19  1-3/16    125 100 70.7 10 12 8 8 23 80 18.3 40.1 M10 1.5
NAFC206-20 1-1/4   125 100 70.7 10 12 8 8 23 80 18.3 40.1 M10 1.5
NAFC207    35 135 110 77.8 11 14 8 9 26 90 18.8 43.3 M12 1.8
NAFC207-20  1-1/4    135 110 77.8 11 14 8 9 26 90 18.8 43.3 M12 1.8
NAFC207-21  1-5/16    135 110 77.8 11 14 8 9 26 90 18.8 43.3 M12 1.8
NAFC207-22  1-3/8    135 110 77.8 11 14 8 9 26 90 18.8 43.3 M12 1.8
NAFC207-23 1-7/16   135 110 77.8 11 14 8 9 26 90 18.8 43.3 M12 1.8
NAFC208    40 145 120 84.8 11 14 10 9 26 100 21.4 45.9 M12 2.2
NAFC208-24  1-1/2    145 120 84.8 11 14 10 9 26 100 21.4 45.9 M12 2.2
NAFC208-25 1-9/16   145 120 84.8 11 14 10 9 26 100 21.4 45.9 M12 2.2
NAFC209    45 160 132 93.3 10 16 12 14 26 105 21.4 44.9 M14 2.8
NAFC209-26  1-5/8    160 132 93.3 10 16 12 14 26 105 21.4 44.9 M14 2.8
NAFC209-27  1-11/16    160 132 93.3 10 16 12 14 26 105 21.4 44.9 M14 2.8
NAFC209-28 1-3/4   160 132 93.3 10 16 12 14 26 105 21.4 44.9 M14 2.8
NAFC210    50 165 138 97.6 10 16 12 14 28 110 24.6 48.1 M14 3.3
NAFC210-30  1-7/8    165 138 97.6 10 16 12 14 28 110 24.6 48.1 M14 3.3
NAFC210-31 1-15/16   165 138 97.6 10 16 12 14 28 110 24.6 48.1 M14 3.3
NAFC211    55 185 150 106.1 13 19 12 15 30 125 27.8 56.6 M16 4.5
NAFC211-32  2   185 150 106.1 13 19 12 15 30 125 27.8 56.6 M16 4.5
NAFC211-34  2-1/8    185 150 106.1 13 19 12 15 30 125 27.8 56.6 M16 4.5
NAFC211-35 2-3/16   185 150 106.1 13 19 12 15 30 125 27.8 56.6 M16 4.5
NAFC212    60 195 160 113.1 17 19 12 15 35 135 31 63.8 M16 5.7
NAFC212-36  2-1/4    195 160 113.1 17 19 12 15 35 135 31 63.8 M16 5.7
NAFC212-38  2-3/8    195 160 113.1 17 19 12 15 35 135 31 63.8 M16 5.7
NAFC212-39 2-7/16   195 160 113.1 17 19 12 15 35 135 31 63.8 M16 5.7
NAFC213    65 205 170 120.2 16 19 14 15 36 145 34.3 67.6 M16 6.5
NAFC213-40 2-1/2   205 170 120.2 16 19 14 15 36 145 34.3 67.6 M16 6.5
NAFC214    70 215 177 125.1 17 19 14 18 38 150 34.3 68.6 M16 7.2
NAFC214-44 2-3/4   215 177 125.1 17 19 14 18 38 150 34.3 68.6 M16 7.2
NAFC215    75 220 184 130.1 18 19 16 18 39 160 37.3 72.8 M16 8
NAFC215-48 3   220 184 130.1 18 19 16 18 39 160 37.3 72.8 M16 8
