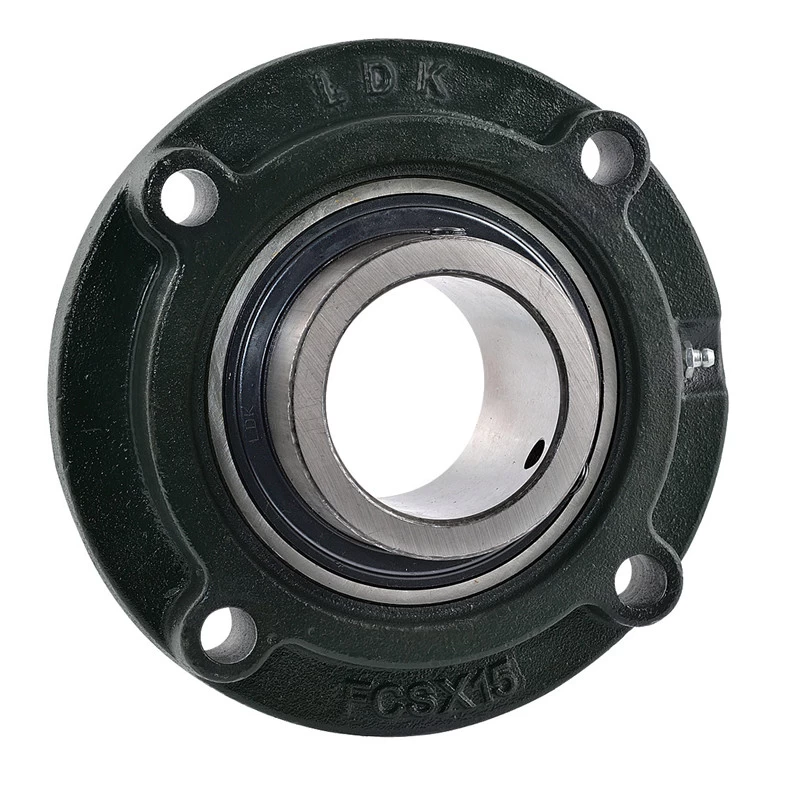

Flange Cartridge Bearing Units UCFCSX

UCFCSX  Medium duty,Wider inner ring bearing,Inch-based housing,Setscrew locking,Cast gray iron housing .

Cast DUCTILE iron housing available upon request.

Facebook Twitter Pinterest LinkedIn 分享

UCFCSX06 Flange Cartridge Bearing Housing

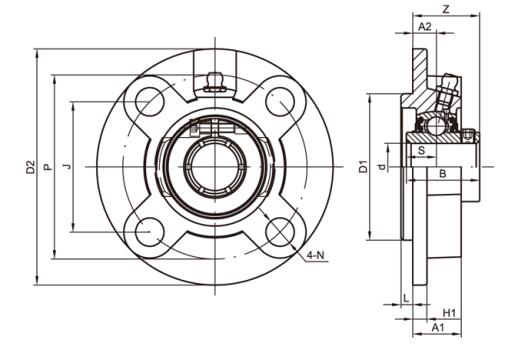

Unit No. Shaft Dia Dimensions (mm) Weight
d D2 P J A2 N L H1 A1 D1 S B Z (kg)
(in) (mm)
UCFCSX05    25 111.0 92.08 65.11 9.9 12.0 6.1 9.4 23.9 76.2 15.9 38.1 32.1 1.34
UCFCSX05-13  13/16   
UCFCSX05-14  7/8   
UCFCSX05-15  15/16   
UCFCSX05-16 1  
UCFCSX06    30 127.0 104.78 74.09 7.9 12.0 9.4 9.4 22.6 85.725 17.5 42.9 33.3 2.06
UCFCSX06-17  1-1/16  
UCFCSX06-18  1-1/8  
UCFCSX06-19  1-3/16  
UCFCSX06-20 1-1/4  
UCFCSX07   35 133.1 111.1 78.56 8.9 12.0 10.9 10.9 25.9 92.075 19.0 49.2 39.1 2.21
UCFCSX07-21  1-5/16  
UCFCSX07-22  1-3/8  
UCFCSX07-23 1-7/16  
UCFCSX08   40 155.5 130.18 92.05 7.9 14.0 10.9 10.9 25.4 107.95 19.0 49.2 38.1 3.03
UCFCSX08-24  1-1/2  
UCFCSX08-25 1-9/16  
UCFCSX09   45 155.5 130.18 92.05 7.9 14.0 11.9 10.9 24.9 107.95 19.0 51.6 40.5 2.98
UCFCSX09-26  1-5/8  
UCFCSX09-27  1-11/16  
UCFCSX09-28 1-3/4  
UCFCSX10   50 162.0 136.5 96.52 7.1 14.0 16.0 10.9 25.9 114.3 22.2 55.6 40.5 3.57
UCFCSX10-30  1-7/8  
UCFCSX10-31 1-15/16  
UCFCSX10-32 2  
UCFCSX11   55 180.8 152.4 107.76 4.0 14.0 22.1 13.0 25.9 127.0 25.4 65.1 43.7 5.00
UCFCSX11-33  2-1/16  
UCFCSX11-34 2-1/8  
UCFCSX11-35 2-3/16  
UCFCSX11-36 2-1/4  
UCFCSX12   60 193.8 165.1 116.74 10.9 14.0 20.0 14.0 33.0 139.7 25.4 65.1 50.6 6.32
UCFCSX12-38 2-3/8  
UCFCSX12-39 2-7/16  
UCFCSX13   65 193.7 165.1 116.74 10.9 14.0 20.0 14.0 33.3 139.7 30.2 74.6 55.3 8.25
UCFCSX13-40 2-1/2  
UCFCSX13-41 2-9/16  
UCFCSX14    70 222.2 190.5 134.7 14.0 17.5 20.0 16.0 36.0 161.925 33.3 77.8 58.5 8.60
UCFCSX14-42 2-3/8  
UCFCSX14-43 2-11/16  
UCFCSX14-44 2-3/4  
UCFCSX15   75 222.2 190.5 134.7 11.9 17.5 22.1 16.0 35.0 161.925 33.3 82.6 61.2 8.76
UCFCSX15-45 2-13/16  
UCFCSX15-46 2-7/8  
UCFCSX15-47 2-15/16  
UCFCSX15-48 3  
UCFCSX17    85 260 218.95 154.82 9.9 20.6 24.9 19.0 36.0 187.325 39.7 96.0 66.2 13.41
UCFCSX17-53  3-5/16   
UCFCSX17-55 3-7/16  
UCFCSX20   100 276.0 238.0 168.29 22.0 23.0 28.0 22.0 66.0 206.375 79.2 117.5 90.3 18.5
UCFCSX20-63 3-15/16  
UCFCSX20-64 4  
