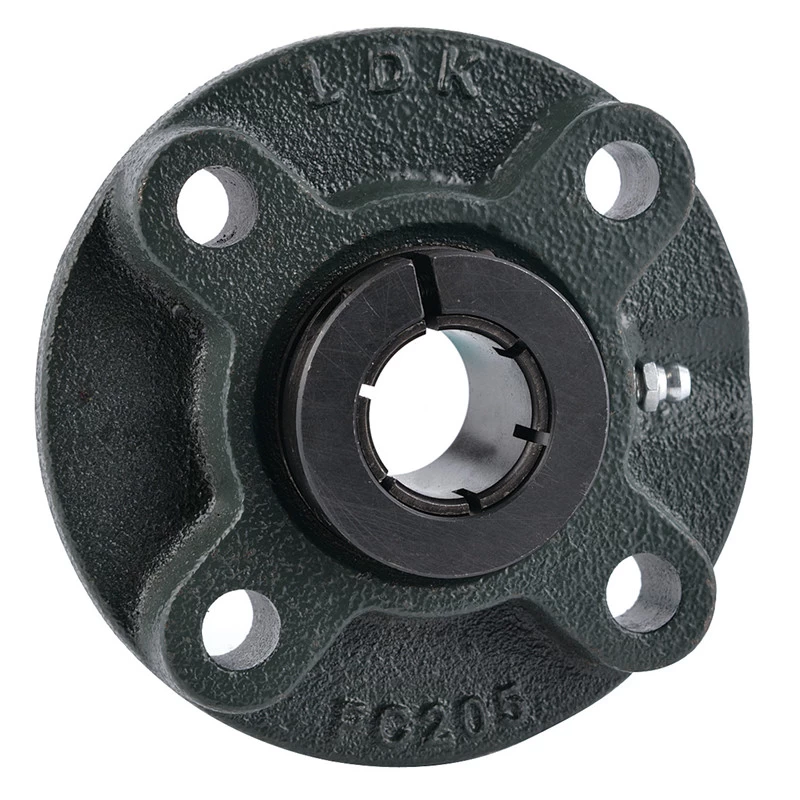

Flange Cartridge Bearing Units UEFC2

UEFC Standard duty,Wider inner ring bearing, Concentric locking,Cast gray iron housing .

Cast DUCTILE iron housing available upon request.

Facebook Twitter Pinterest LinkedIn 分享

Description

Flange Cartridge Bearing Housing UEFC207

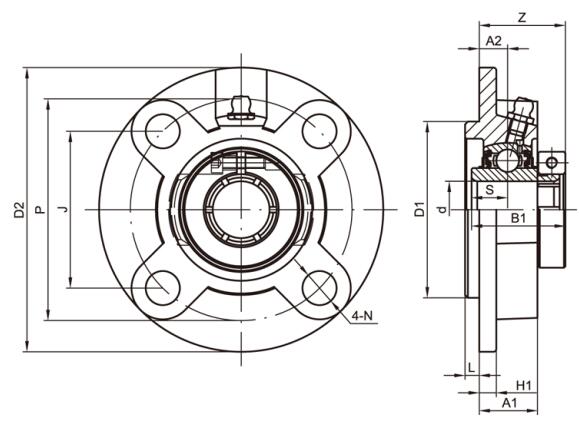

Unit No.	Shaft Dia		Dimensions(mm)												Bolt Size (mm)	Weight (kg)
	d		D2	P	J	A2	N	L	H1	A1	D1	B1	S	Z
	(in)	(mm)
UEFC204		20	100	78	55.1	10	12	5	7	20.5	62	33	12.7	30.3	M10	0.75
UEFC204-12	3/4
UEFC205		25	115	90	63.6	10	12	6	7	21	70	35.4	14.3	31.1	M10	1.06
UEFC205-14	7/8
UEFC205-15	15/16
UEFC205-16	1
UEFC206		30	125	100	70.7	10	12	8	8	23	80	39.8	15.9	33.9	M10	1.54
UEFC206-17	1-1/16
UEFC206-18	1-1/8
UEFC206-19	1-3/16
UEFC206-20	1-1/4
UEFC207		35	135	110	77.8	11	14	8	9	26	90	43.9	17.5	37.4	M12	1.82
UEFC207-20	1-1/4
UEFC207-21	1-5/16
UEFC207-22	1-3/8
UEFC207-23	1-7/16
UEFC208		40	145	120	84.8	11	14	10	9	26	100	50.2	19	42.2	M12	2.23
UEFC208-24	1-1/2
UEFC208-25	1-9/16
UEFC209		45	160	132	93.3	10	16	12	14	26	105	50.2	19	41.2	M14	2.72
UEFC209-26	1-5/8
UEFC209-27	1-11/16
UEFC209-28	1-3/4
UEFC210		50	165	138	97.6	10	16	12	14	28	110	52.6	19	43.6	M14	3.24
UEFC210-30	1-7/8
UEFC210-31	1-15/16
UEFC210-32	2
UEFC211		55	185	150	106.1	13	19	12	15	30	125	56.6	22.2	47.4	M16	4.32
UEFC211-32	2
UEFC211-34	2-1/8
UEFC211-35	2-3/16
UEFC212		60	195	160	113.1	17	19	12	15	35	135	66.6	25.4	58.2	M16	5.33
UEFC212-36	2-1/4
UEFC212-38	2-3/8
UEFC212-39	2-7/16
