Overview

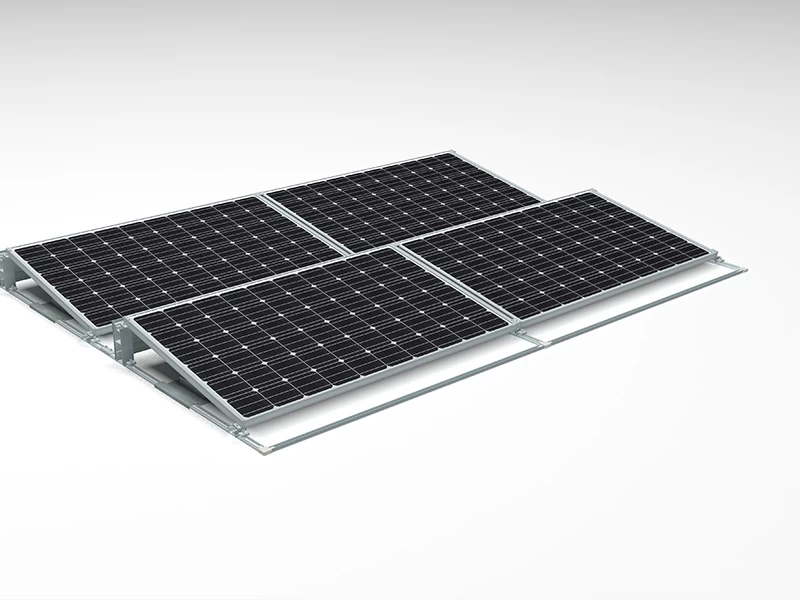

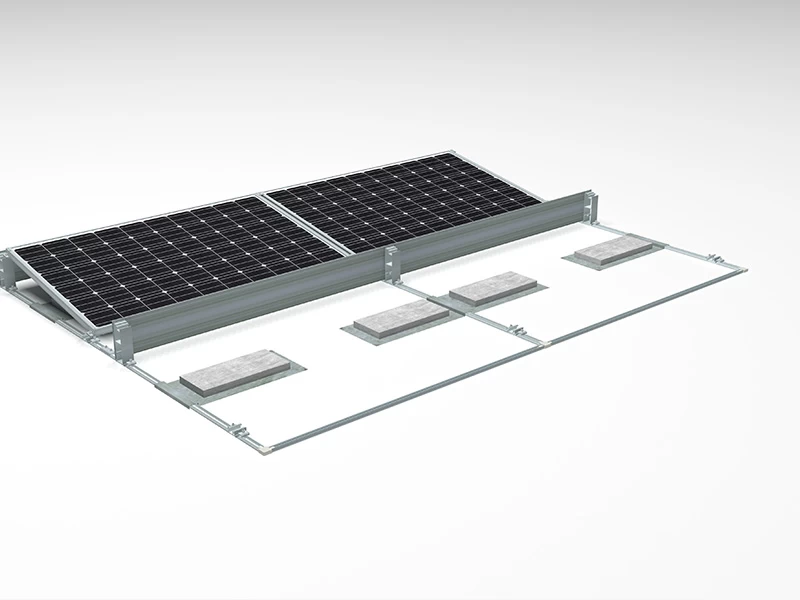

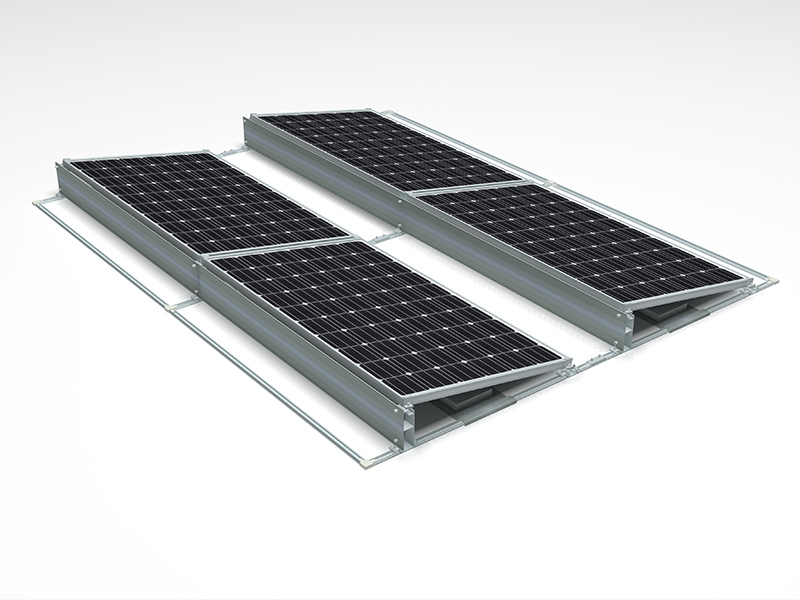

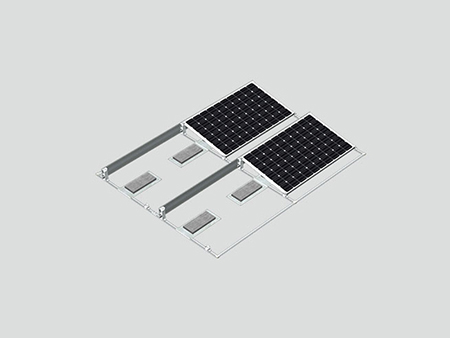

MRac Roof Solar PV Mounting System Matrix I is a non-penetration
solution for flat rooftop. The system achieves high wind resistance
performance and fast onsite installation with concrete ballast and
patented structure design.
Features
1.High Durability Ensure the Structure Strength
Professional structure design and high-density aluminum material ensure the stability and strength of the structure.
2.Unique Matrix Design

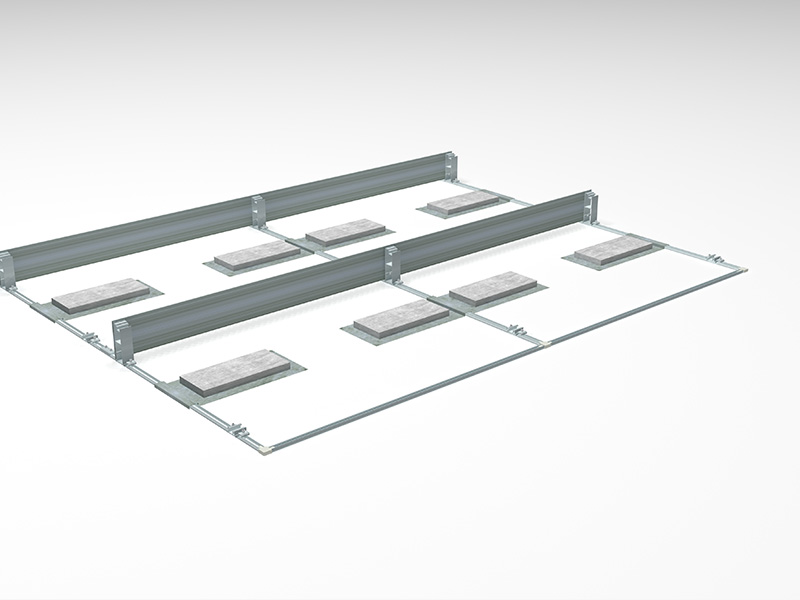

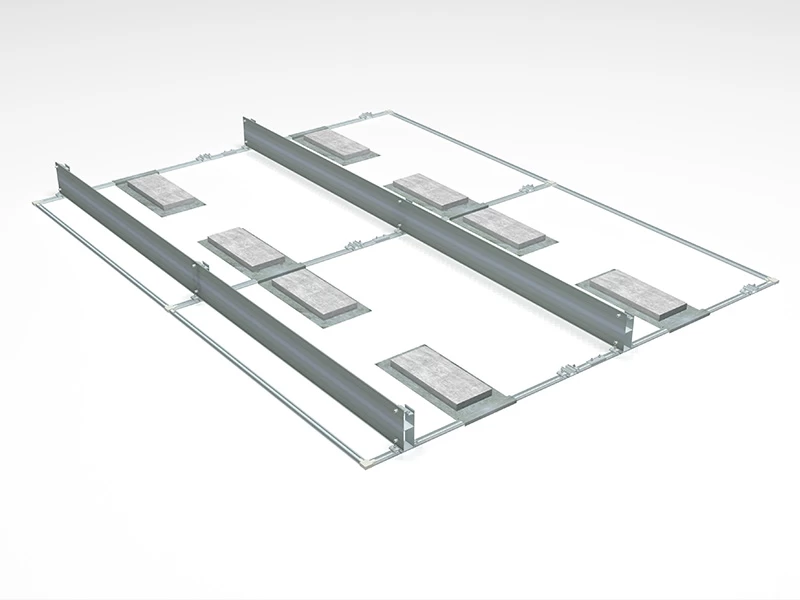

The matrix design further assures the stability of the whole system, and flexibly compatible with concrete block or ballast foundation.
3.Reasonable Installation and Package Design
Simplified components configuration lead to quicker installation and smaller package size, saving installation cost and freight.

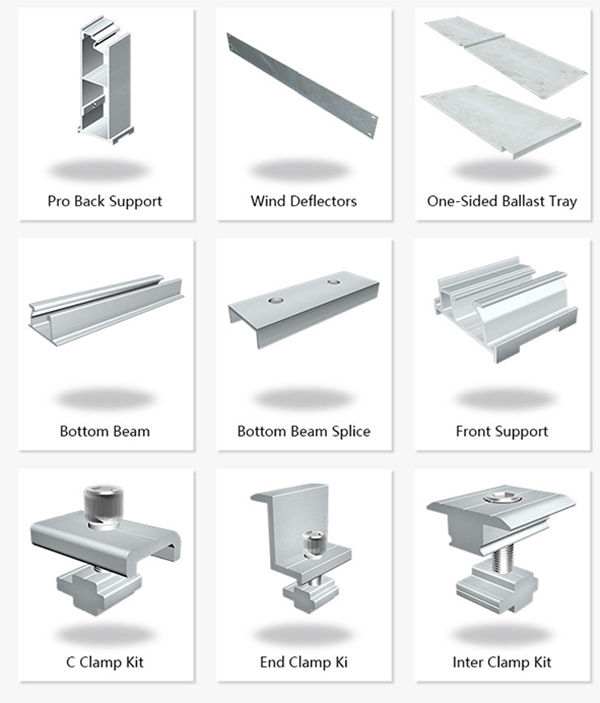

Component Data

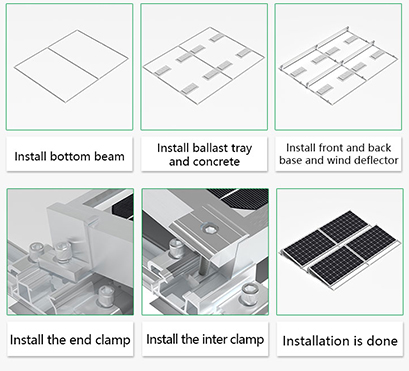

Installation Step
|
Technical Parameter
|
|
System Name
|
Flat RoofMRac Roof Matrix I
|
|
Installation Site
|
Flat Roof
|
Roof Type
|
Concrete Base
|
|
Tilt Angle
|
5°,10°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/㎡
|
|
Applicable Solar Module
|
Framed
|
|
Panel Layout
|
Landscape
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Q235B(Hot-Dip Galvanized), Al6005-T5(Anodized)
|
|
Fastener
|
SUS304, Hot Dip Galvanized, Zinc-Nickel Alloy Electroplated Steel
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
Technology Certification
