roof solar ballasted structure

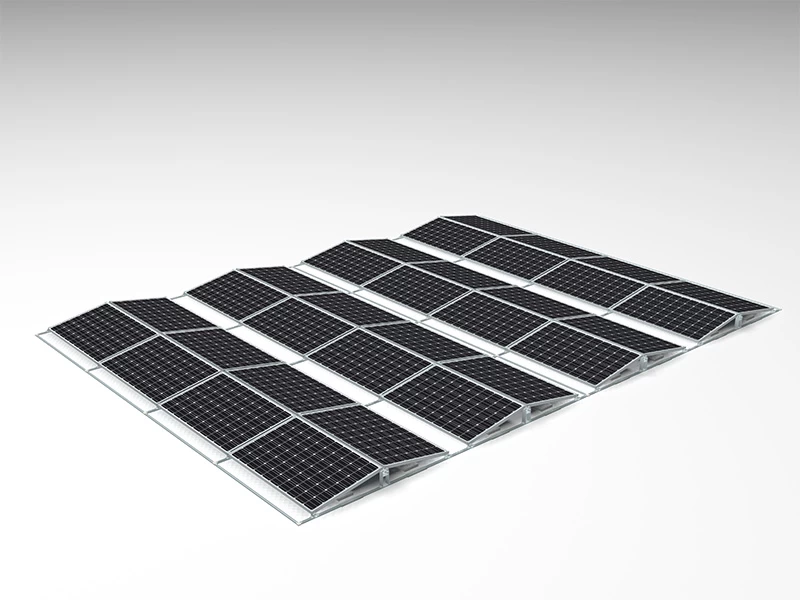

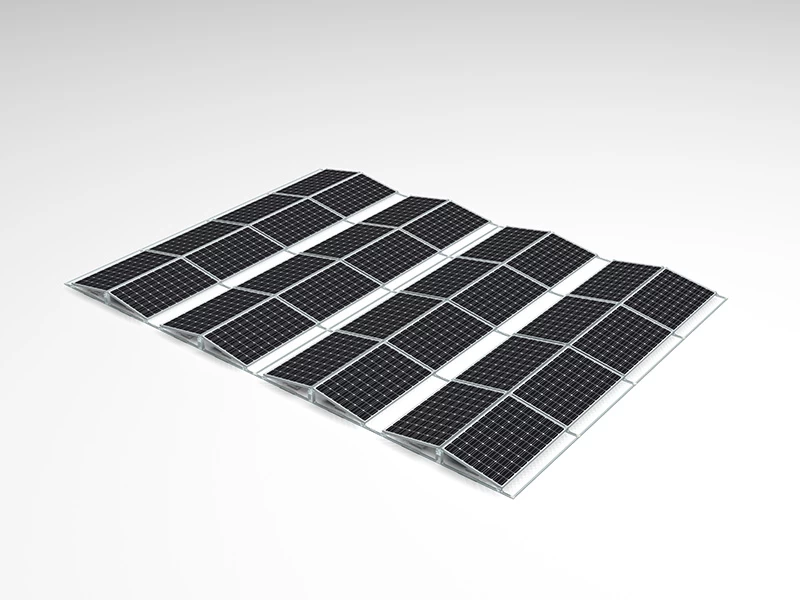

MRac Roof Solar PV Mounting System Matrix I is a non-penetration solution for flat rooftop.



Overview

MRac Roof Solar PV Mounting System Matrix I is a non-penetration solution for flat rooftop. The system achieves high wind resistance performance and fast onsite installation with concrete ballast and patented structure design.

Technical Parameter

System Name

  Flat RoofMRac Roof Matrix I

Installation Site

  Flat Roof

Roof Type
  Concrete Base

Tilt Angle

  5°,10°

Wind Load

  60m/s

Snow Load

  1.6KN/㎡

Applicable Solar Module

  Framed

Panel Layout

  Landscape

Design Standard

  AS/NZS 1170 , DIN 1055 , JIS C 8955:2017,


  International Building Code IBC 2009,


  California  Building Code CBC 2010

Material

  Q235B(Hot-Dip Galvanized), Al6005-T5(Anodized)

Fastener

  SUS304, Hot Dip Galvanized, Zinc-Nickel Alloy Electroplated Steel

Small Components

  Al6005-T5(Anodized)

Color

  Silver or Customized

Warranty

  10-Year Warranty


Solar panel brackets tile roof

Features

High Durability Ensure the Structure Strength

Professional structure design and high-density aluminum material ensure the stability and strength of the structure.


Unique Matrix Design

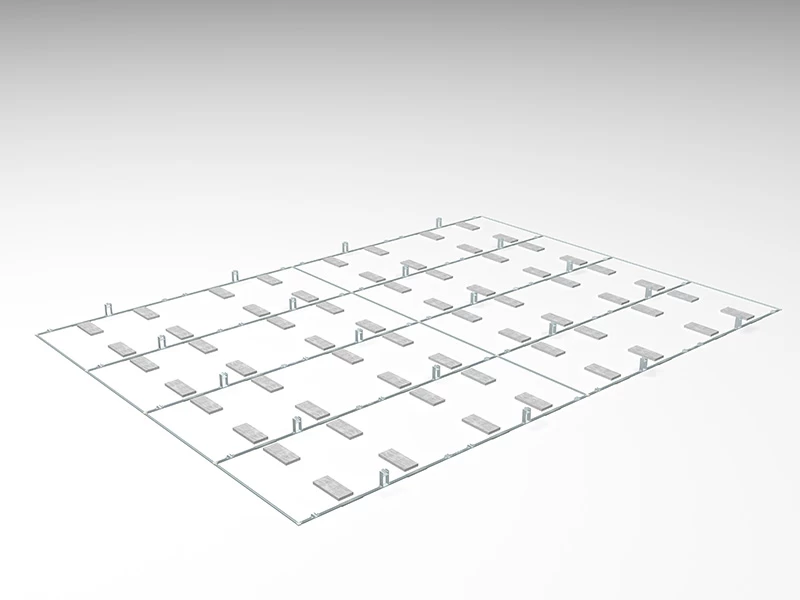

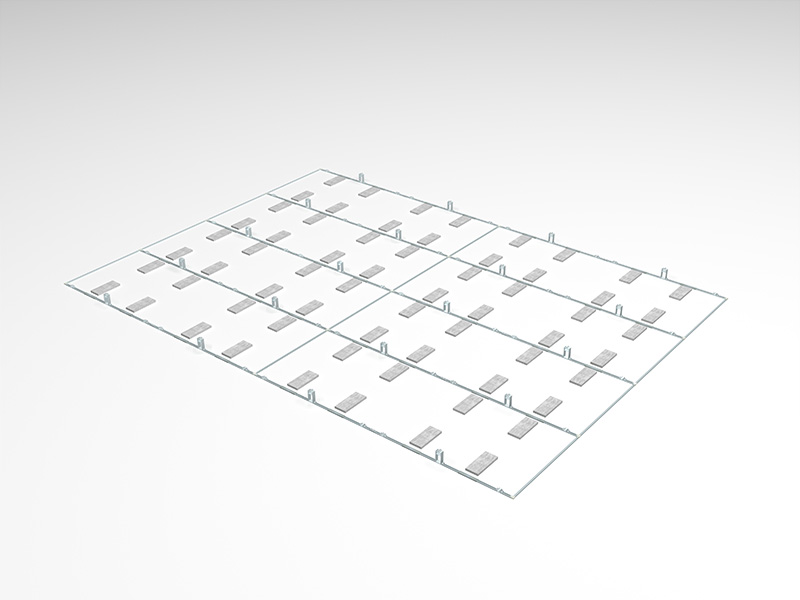

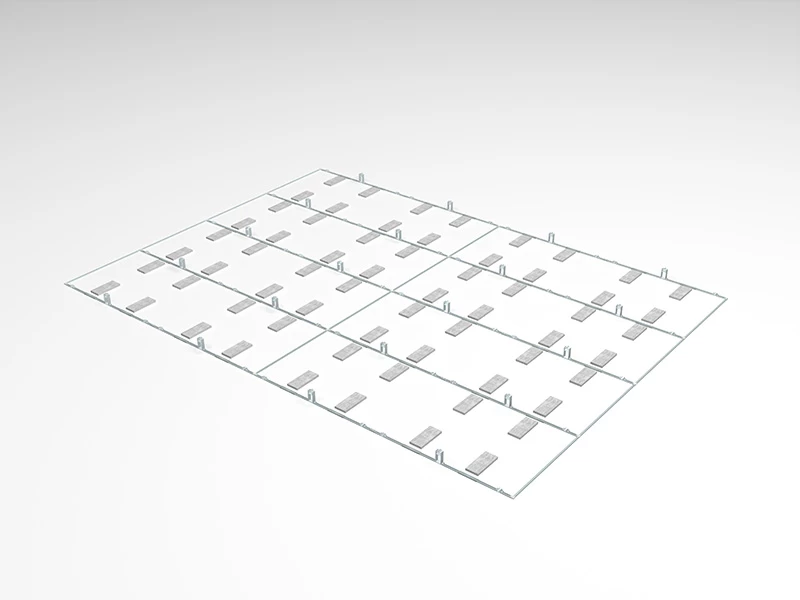

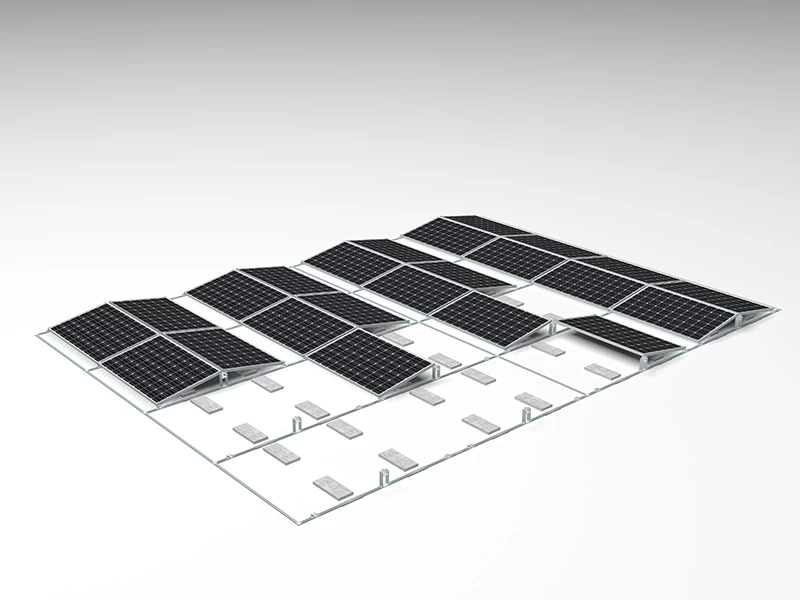

The matrix design further assures the stability of the whole system, and flexibly compatible with concrete block or ballast foundation.


Reasonable Installation and Package Design

Simplified components configuration lead to quicker installation and smaller package size, saving installation cost and freight.




Technology Certification


Product Tags mrac tile roof pv structure          flat roof pv          mrac ground pv system          flat roof structure          flat roof structures          flat roof pv mounting          pv panels on flat roof          solar pv flat roof          flat roof solar pv
