Flat Roof Solar PV Ballasted Mounting System
Solar Aluminum Ballasted PV Mounting System is applied for open flat roof ,suitable for both framed and framless module installation.Jesfer system achieves high wind resistance performance and fast onsiteinstalltion with concrete ballast .we adopt high level quality ,firm and beautiful profiles and component to ensure the stucture safety .

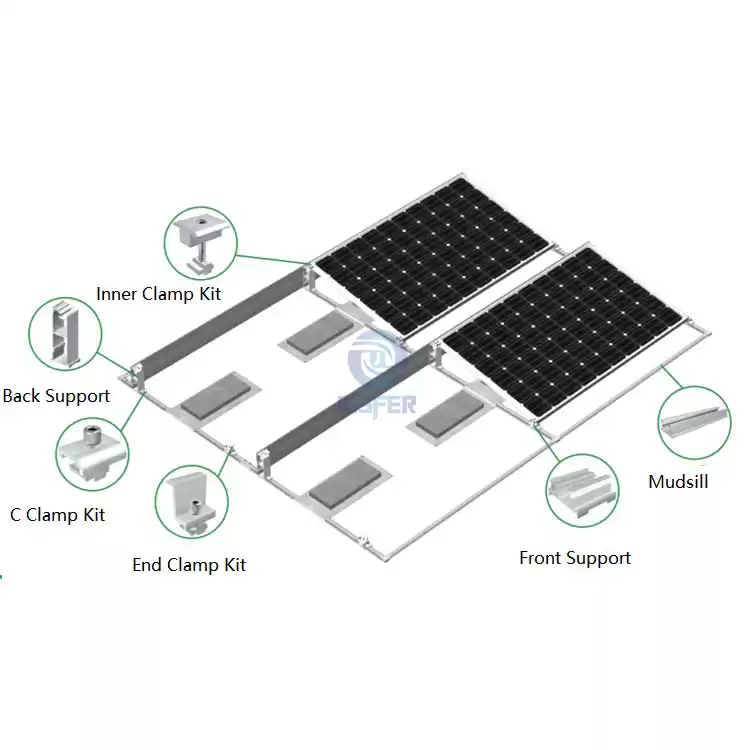

Structure

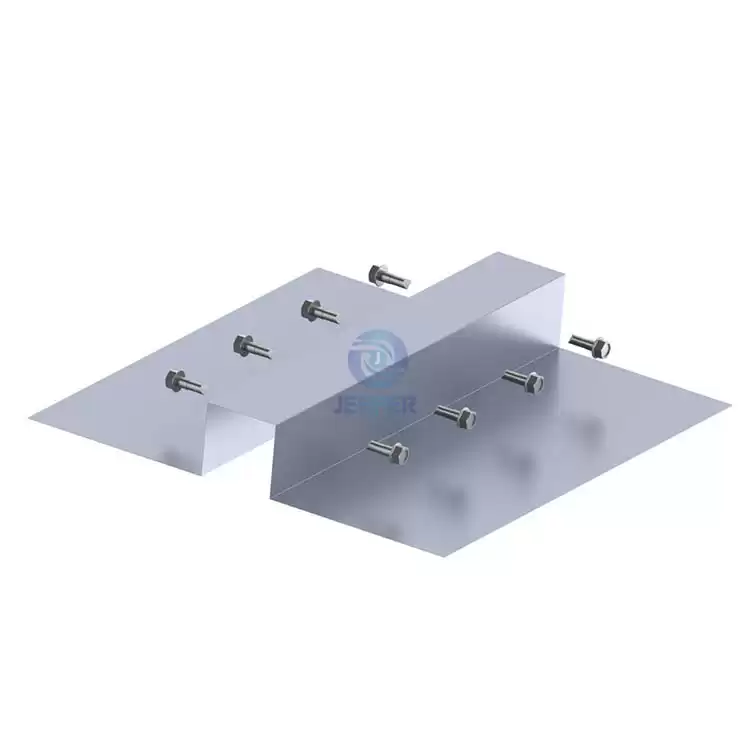

Components Details
Product Features:
*Excellent Anti-Corrosion Ability:
use the 6063 - T5 aluminum alloy components,very high anti-corrosion ability in the harsh environmen, meanwhile the high strength of material guarantee the loading capacity of stent;
*Quick Convenient Installation:
each system as an independent unit, can be any combination, mixing;
*Safety:
there is no damage to the roof, so as not to cause the leaking roof, the building materials/precast concrete can be used load the weight, the weight is light to reducing the strees on flat roof.
Technical Parameters
System Name
|
Solar Ballast Bracket System
|
Panel Layout
|
Landscape
|
Foundation
|
Concrete Roof
|
Material
|
Anodized AL6005-T5
|
Tilt Angle
|
5degree ,10degree
|
Fastener
|
SUS304 &Zinc-Nickel Alloy Electroplated Steel
|
Snow Load
|
1.6KN/㎡
|
Color
|
Customized or Silver
|
|
Wind Load
|
60m/s
|
Design Standard
|
AN/NZS1170,DIN1055,JIS C8955,etc.
|
Applicable Solar Module
|
Framed
|
Warranty
|
10 Years
|
|
Installation Site
|
Flat Roof ,Ground
|
Small Components
|
Anodized AL6005-T5
|
Installation Guide
Adding solar power to flat roofs is inherently complex and requires multiple options to meet building requirements, we offer a complete flat roof solar mounting system solution with customizable support for any roof.

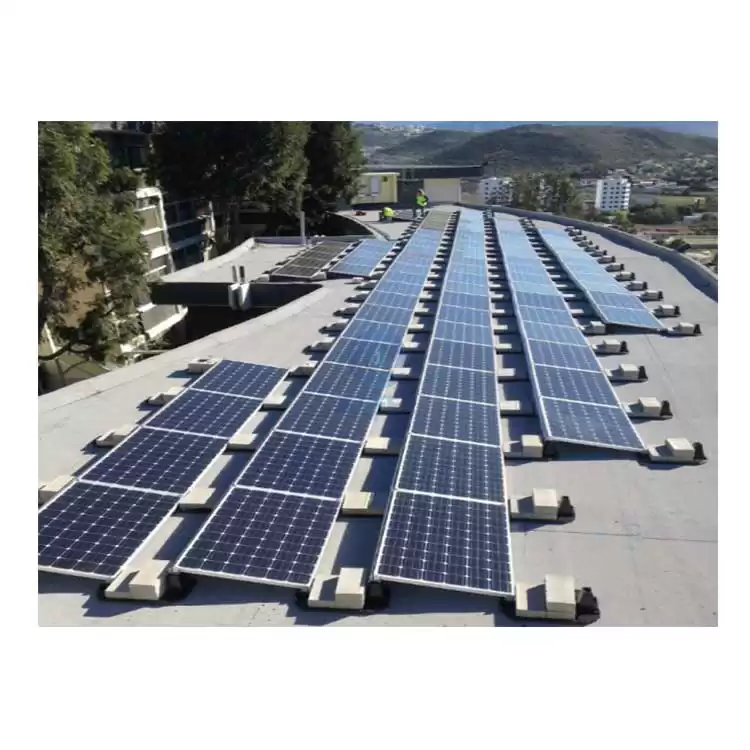

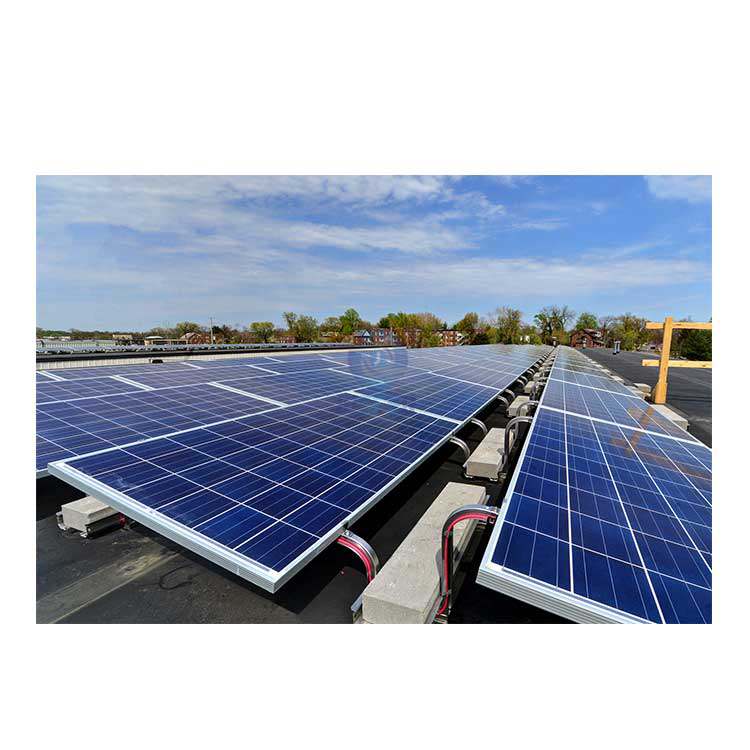

Project Case
Our mission is uphold quality as we do in Health, Safety and Environment.
