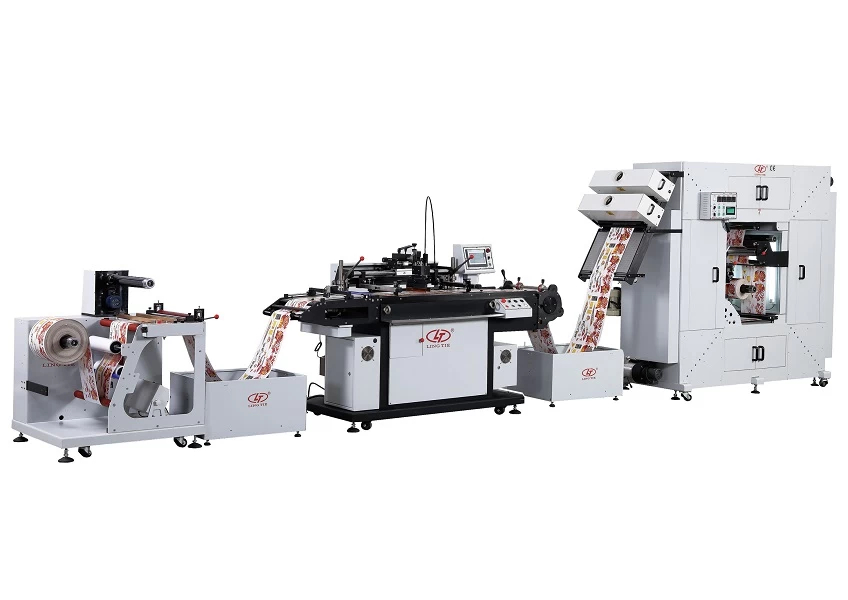

• This Flexible Circuit board Screen Printing Machine line is composed of a feeding machine, a printing machine, and a hot air dryer.
• High level of automation, only one worker operate the whole printing line.
• High printing accuracy, 1-6 color overprint can be done by the full automatic screen printing machine.
• High productivity, production capacity equal to six sets of the semi-automatic screen printing machine.
• It has a vacuum table with air suction to fasten PET film to ensure overprinting precision.
• It is equipped with three photocell sensors for automatic registration in X-Y directions, carrying the exclusive.

Application

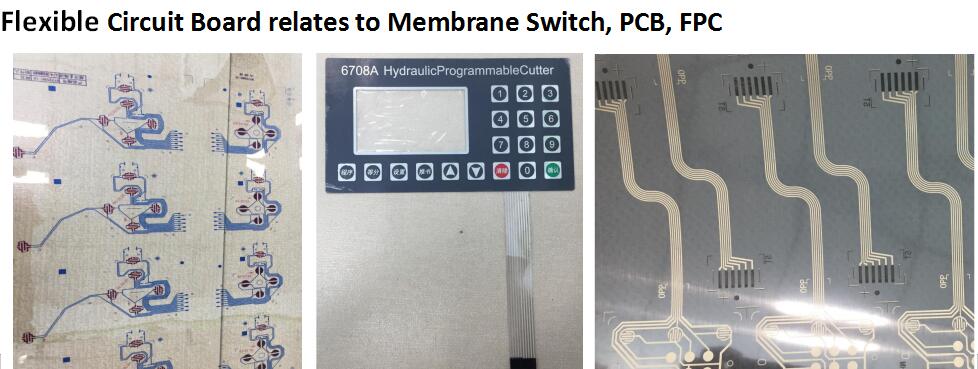

Flexible electronics, also known as flex circuits, is a technology for assembling electronic circuits by mounting electronic devices on flexible plastic substrates. Additionally, flex circuits can be screen printed silver circuits on polyester film, which can print by Flexible Circuit board Screen Printing Machine

The Features for the Feeding Machine

1. The feeding machine has dust removal function ensuring film cleaning
2. Air shaft for the roll unwinding with tension control
3. Air shaft for protective film peel off
4. Splicer with cutting guide slot for easy film connection
5. Static eliminator----Ionizing Air Blower
6. Automatic stop and alarm when the film run out

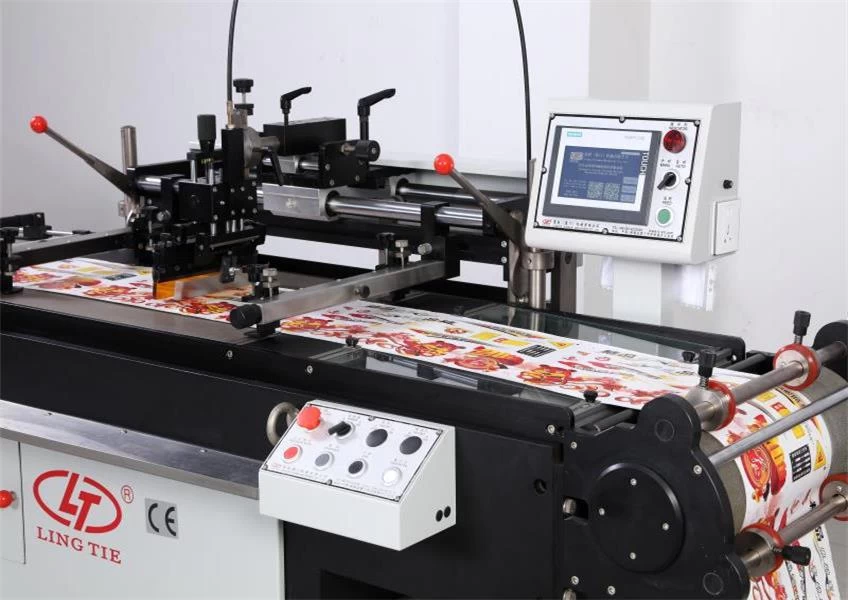

The Specification for the Screen Printing Printing Machine

1. Max.web width   470 mm
2. Max.printing size    460 x 560 mm
3. Max.aluminium frame size    700 x 830 mm
4. Printable Substrate thickness     0.02--0.5 mm
5. Printing speed range    0--4200 pcs/h
6. Main Drive Motor 0.7 KW
7. Pulling Drive Motor 1.5 KW
8. Air Suction Motor  0.75 KW
9. Powder 220v, 3KW, 15A
10. Dimensions 2720 x 1240 x 1370 mm

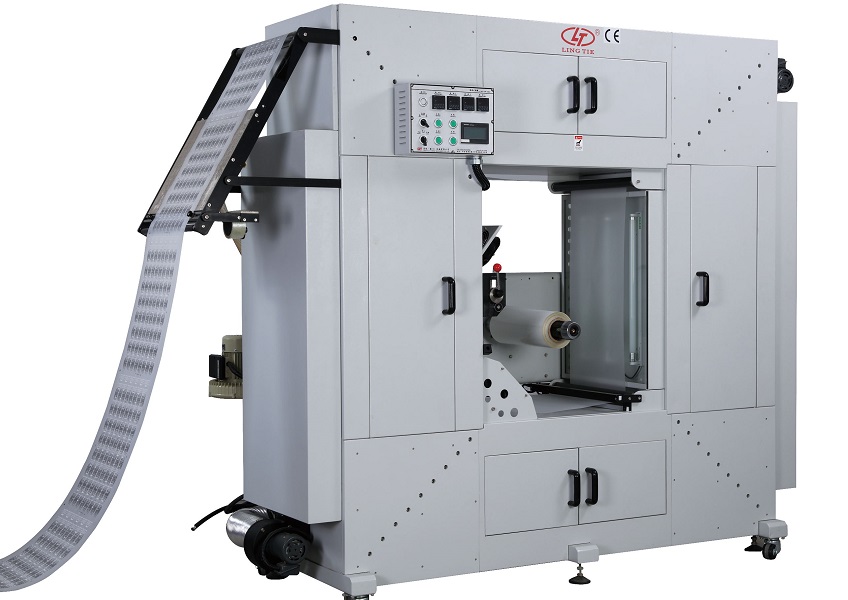

The Specification for the Curing Oven

1. Power  22 KW
2. Electricity voltage  380/50 V/HZ
3. Temperature  room temp.---200 ℃
4. Chamber pass length  60 m
5. Heater  4 pcs
6. Dimensions  2830 x 1060 x 2150 mm

 FAQ
1, How much printing accuracy can be achieved?
We can reach 0.01 mm overprint precision
2, How many colors do you machine can print?
We can print 1 color, 2 colors, 3 colors, 4 colors, 5 colors, 6 colors, 7 colors and more.
3, What's your printing speed?
10-20 meters /minuter in generally, 600-1200 meters / Hour.
4, What's the power consumption of this roll to roll printing machine system?
It's about 40 KWH /day,  working 8 hours
5, Could you supply the training by your side?
Yes, we  supply Free Training and Installation overseas, but the round airplane ticket is on your side
6, Are you a manufacturer or a distributor?

-We are a professional manufacturer for 15-years in China.
-There are so many models of the single color roll to roll screen printing machine in our workshop which ensure short delivery time and can reduce your waiting cost.

7, What other kinds of service can you offer?
We can offer screen film, screen ink supplier and various ancillary equipment and accessories
High requirement and High demand label, you can give to Lingtie Brand fully automatic screen printer
 8, What's the roll to roll screen printing machine price?
Tell the truth, the price is not very cheap. As you know, only a reasonable profit can guarantee high quality
9, What are the Certifications of your machines?
We have CE Certificate & ISO Certificate

10, How can you promise that Each Component, 10-years non-rusting?
We have the Self-Machining CNC Center and each process under the strict quality control,  which is one of the conditions that ensure the stability of the Flexible Circuit Board Screen Printing Machine

11, How many countries have you installed fully automatic screen printing machine so far?
We had installed the machine more than 20 countries since 2009( get the export and import right in 2009), the below images show our machine in clients'  factory.
