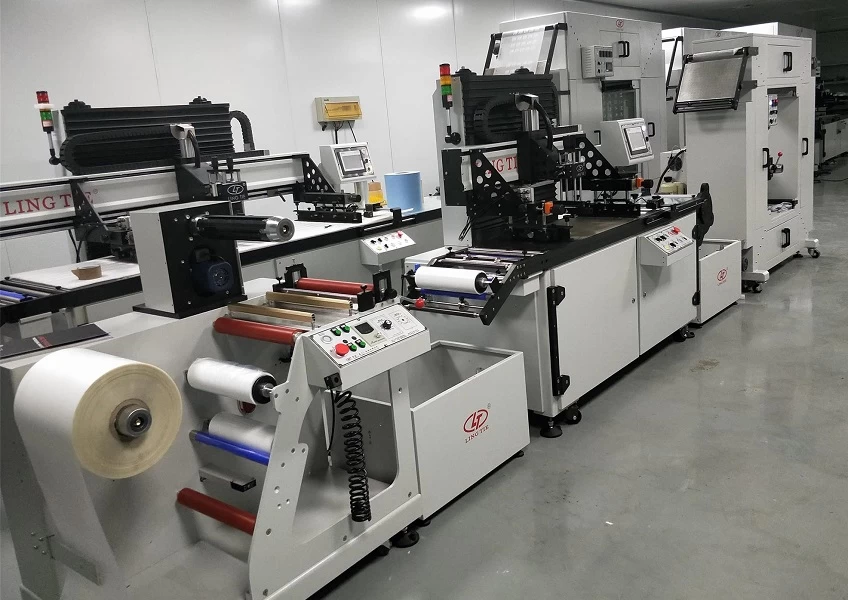

Reel to Reel Screen Printing Machine

The LTA-3040 reel-to-reel screen printing machine is not only maintained high-precision (0.01mm) multi-color overprinting technology and high quality but also the lower price.



Product Name: Reel-to-Reel Screen Printing Machine

The LTA-3040 reel-to-reel screen printing machine is designed for customers who need small-size printing. It is improved and refined on our classic LTA-5060 roll to roll screen printing printer. The LTA-3040 reel-to-reel screen printing machine is not only maintained high-precision (0.01mm) multi-color overprinting technology and high quality but also the lower price. The printing speed doubled, and we are proud of this speed. The printing speed is another breakthrough in Lingtie Machinery technology. Welcome to consult.

 Application:
 It is specially designed for printing for film material in roll form,

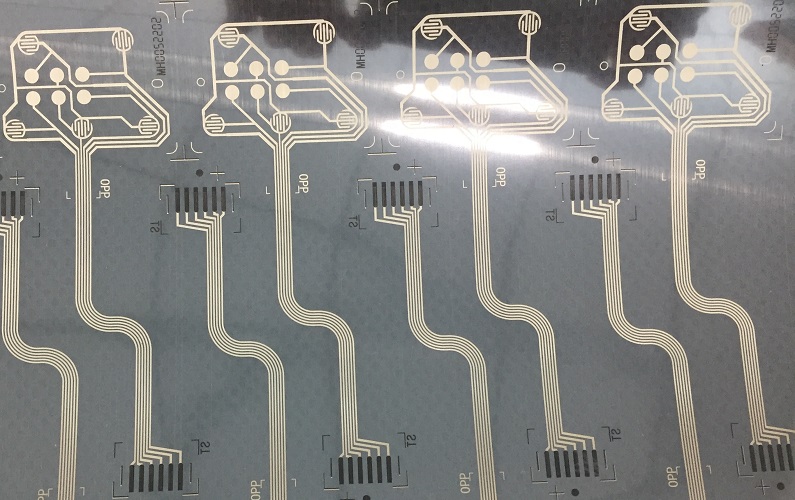

 such as PET, PVC, PE, PV, PP, BOPP film, which has been widely used in heat transfer label, adhesive sticker, Vulcanizing label, membrane switches, soft circuit board (flexible printed circuit ), printed electronics, control panels, graphics overlay, IMD (In-mold decoration label, IML, RFID antenna, FPC, ceramic decals, motorcycle helmet decals, nameplate, etc industry.
The R2R silk screen machine is not direct printed to the garment, is different from the automatic silk screen printing machine, need to transfer process and other finishes, such as heat transfer label, garment label and wash label.
The machine can print solvent ink, water-based ink, and plastisol ink.

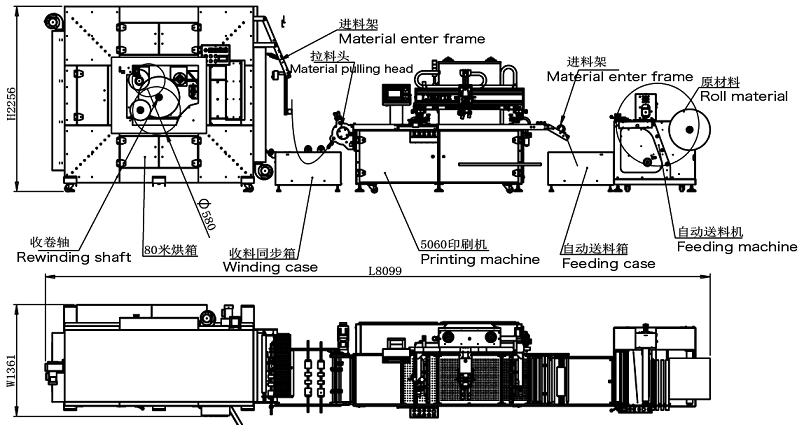

Specification for the LTA-3040 Reel to Reel Screen Printing Machine

1, Feeding Machine

Power  0.3 KW
Electricity voltage  220/50 V/Hz
Dimensions  1100 x 900 x 1200 mm

2, Screen Printing Machine

Max.web width   420 mm
Max.printing size    300 x 400 mm
Max.aluminium frame size    600 x 700 mm
Printable Substrate thickness     0.02--0.5 mm
Printing speed range    0--8000 impression/h
Air Source           0.4-0.6 mpa
Powder 220v, 3KW, 15A
Dimensions 2500 x 1600 x 1100 mm

3, Hot Air Dryer
Power  14 KW
Electricity voltage  380/50 V/Hz
Temperature  room temp.---140 ℃
Chamber pass length  30 m
Heater  4 pcs
Dimensions  1500 x 1100 x 1800 mm

If you work in any of the industries listed below, please contact us directly

Mobile phone touch screen
Glucose sensors for people with diabetes
Many other biomedical sensors
Solar cells
Lithium batteries
Flat screen televisions
Touch panels
Circuit boards
Printed electronics

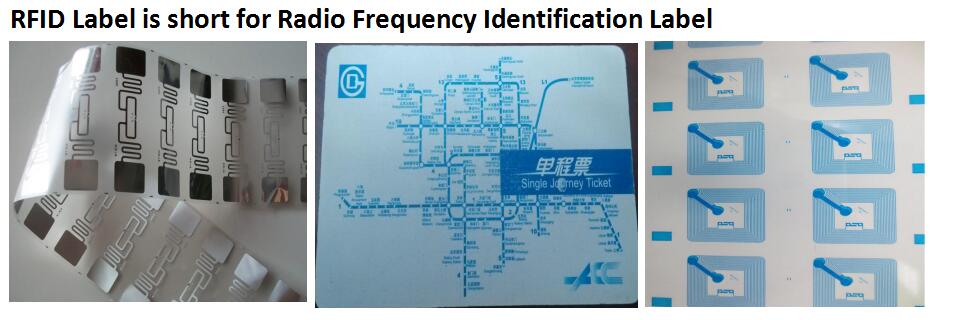

RFID


In-mold transfers switch panels
Membrane switches
Flexible circuit boards


Thin film heating elements
Miniature circuits on ceramics
Heated rear windscreens
Fuel cells
Smart fabrics
Optical discs
Printed textiles flexible led
Automotive Decals
Printed antennae

Electronic camouflage
Special effects graphics printing
Sports-wear decoration
