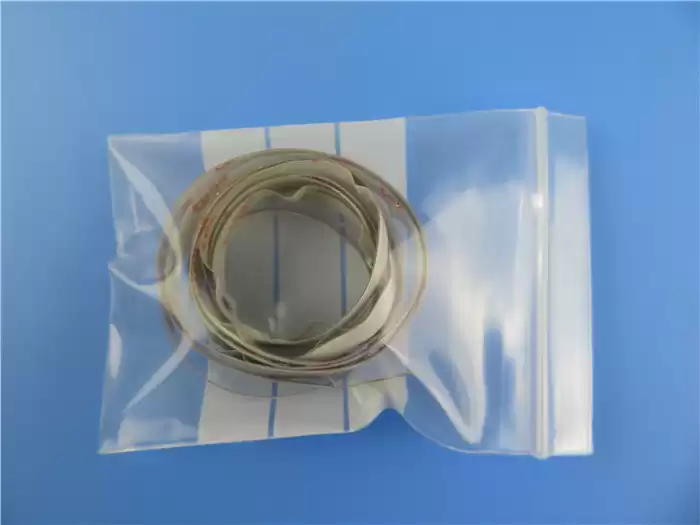

Flexible Printed Circuit FPC on
Polyimide with 2 Meters Long
(Flexible
printed circuits are custom-made products, the picture and parameters shown are
just for reference)
Brief
Introduction
It is built on
polyimide substrate with 7mm wide. It is used in the telemetry systems.
Specifications:
|
PCB SIZE
|
2000 x 8mm=1PCS
|
|
Base Material:
|
Polyimide
|
|
Number of Layers
|
Single sided PCB
|
|
SMT
|
N/A
|
|
Through Hole Components
|
N/A
|
|
LAYER STACKUP
|
Copper
------- 35um(1oz)
|
|
Polyimide
|
|
Minimum
Trace and Space:
|
20mil/20mil
|
|
Minimum / Maximum Holes:
|
3.0mm/
3.0mm
|
|
Final foil external:
|
1oz
|
|
Final foil internal:
|
0oz
|
|
Final height of PCB:
|
0.15mm
±0.05
|
|
Surface Finish
|
Immersion
gold
|
|
Solder Mask Apply To:
|
TOP, bottom
|
|
Solder Mask Color:
|
White Coverlay
|
|
CONTOUR/CUTTING
|
Laser
cut
|
|
Stiffener:
|
N/A
|
|
Side of Component Legend
|
NO
|
|
Colour of Component Legend
|
NO
|
|
VIA
|
N/A
|
|
FLAMIBILITY RATING
|
UL
94-V0 Approval MIN.
|
|
TEST
|
100%
Electrical Test prior shipment
|
|
TYPE OF ARTWORK TO BE SUPPLIED
|
email
file, Gerber RS-274-X, PCBDOC etc
|
|
SERVICE AREA
|
Worldwide,
Globally.
|
Our
Advantages:
Engineering
design prevents problems from occurring in pre-production;
ISO9001,
ISO14001, IATF16949 UL certified manufacturing factory;
No
MOQ, low cost for prototypes and small runs quantity;
More
than 18+ years of PCB experience;
Capability
of 30000㎡output per month;
8000
types of PCB's per month;
Delivery
on time: >98%
Customer
complaint rate: <1%
Applications:
Capacitive
touch screen / panel, Industrial control temperature controller soft board,
consumer card reader soft board
Basic
Types of Flexible Circuit:
There
are five basic types of flexible circuits as described below:
1.
Single-Sided Flexible Circuits
This
is the simplest type, and consists of a thin and flexible base material to
which a copper foil is laminated by means of an adhesive. The finished circuit
is frequently provided with a covercoat bonded to the copper side by means of
an adhesive.
2.
Double-Sided Flexible Circuits
As
the name suggests, the circuit consists of a thin and flexible base material
with copper foil laminated to each side. The outer sides of the finished
circuits are frequently provided with covercoats bonded to the outer sides
(copper).
3.
Multilayer Flexible Circuits
A
multilayer flexible circuit consists of a number of thin and flexible base
laminates and copper foils laminated together by means of adhesive, in very
much the same way as rigid multilayer boards. Also it is common practice to
bond covercoats to the outer sides (copper).
4.
Flex-Rigid Circuits
A
flex-rigid circuit is a combination of rigid boards and flexible circuits, the
latter creating flexible interconnects between the rigid boards to which they
are laminated by means of bond plies.
5.
Flexible Circuits with Rigid Areas
In
some cases, the flexible circuit must support a number of relatively heavy
components or even a connector part. Therefore it is necessary to reinforce
such an area. This is accomplished by bonding a stiffener to that area. The
stiffener can be an extra layer of not too thin polyimide, or it can be a
glass/epoxy laminate.
FPC Capabilities 2022:
|
No.
|
Specifications
|
Capabilities
|
|
1
|
Board
Type
|
Single
layer, Doulbe layer, Multilayer, Rigid-Flex
|
|
2
|
Base
Material
|
PI,
PET
|
|
3
|
Copper
Weight
|
0.5oz,
1oz, 2oz
|
|
4
|
LED
Maximum Size
|
250
x 5000mm
|
|
5
|
General
Maximum Size
|
250
x 2000mm
|
|
6
|
Board
Thickness
|
0.03mm-3.0mm
|
|
7
|
Thickness
Tolerance
|
±0.03mm
|
|
8
|
Mininum
Drill Hole
|
0.05mm
|
|
9
|
Maximum
Drill Hole
|
6.5mm
|
|
10
|
Tolerance
of Drill Hole
|
±0.025mm
|
|
11
|
Thickness
of Hole Wall
|
≧8 um
|
|
12
|
Minimum
Track/Gap of Single Layer Board
|
0.025/0.03mm
|
|
13
|
Minimum
Track/Gap of Double Layer and Multilayer Board
|
0.03/0.040mm
|
|
14
|
Etching
Tolerance
|
±0.02mm
|
|
15
|
Minimum
Width of Silk Legend
|
≧0.125mm
|
|
16
|
Minimum
Heigh of Silk Legend
|
≧0.75mm
|
|
17
|
Distance
from Legend to Pad
|
≧0.15mm
|
|
18
|
Distance
from Opening Solder Mask of Drill Coverlay to Track
|
≧0.03mm
|
|
19
|
Distance
from Opening Solder Mask of Punching Coverlay to Track
|
≧0.03mm
|
|
20
|
Thickness
of Immersion Nickel
|
100-300u"
|
|
21
|
Thickness
of Immersion Gold
|
1-3u"
|
|
22
|
Thicnkess
of Immersion Tin
|
150-400u"
|
|
23
|
Minimum
Electrical Testing Pad
|
0.2mm
|
|
24
|
Minimum
Tolerance of Outline(Normal Steel Mould Punch)
|
±0.1mm
|
|
25
|
Minimum
Tolerance of Outline (Precision Steel Mould Punch)
|
±0.05mm
|
|
26
|
Mininum
Radius of Bevel Angle (Outline)
|
0.2mm
|
|
27
|
Stiffner
Material
|
PI,
FR-4, 3M Adhesive, PET, Steel Sheet
|
|
28
|
RoHs
|
Yes
|
|
29
|
Solder
Mask Colour
|
Yellow,
White, Black, Green
|

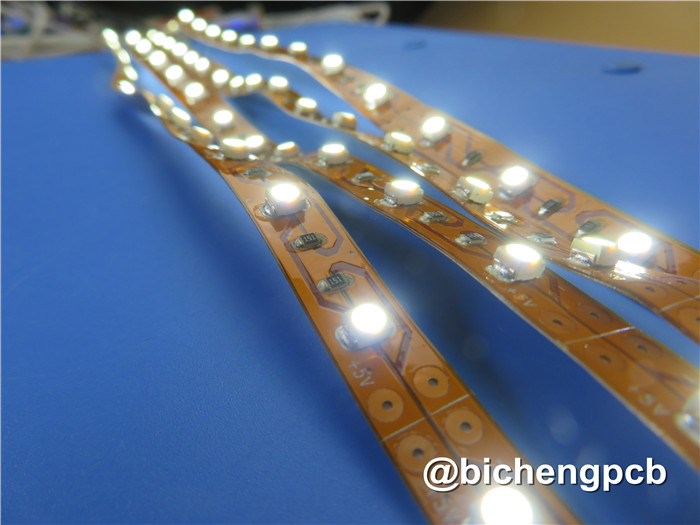

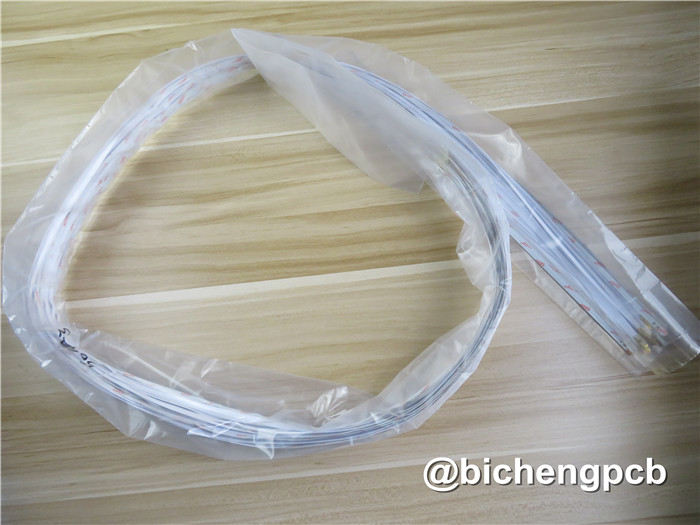

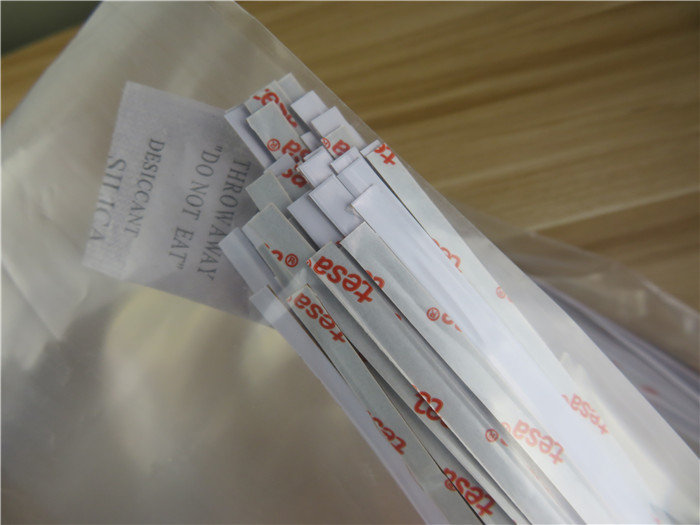

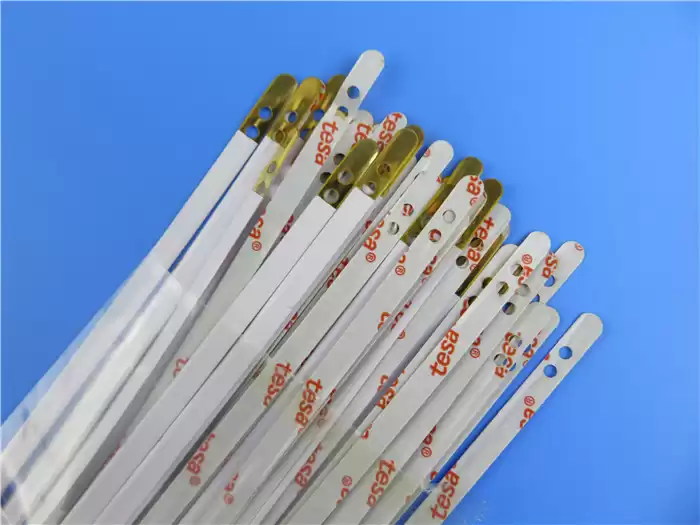

More
displays of Long Flex:
