Floor Deck Forming Machine For YX76-320-960

Easy to operate and running stable.

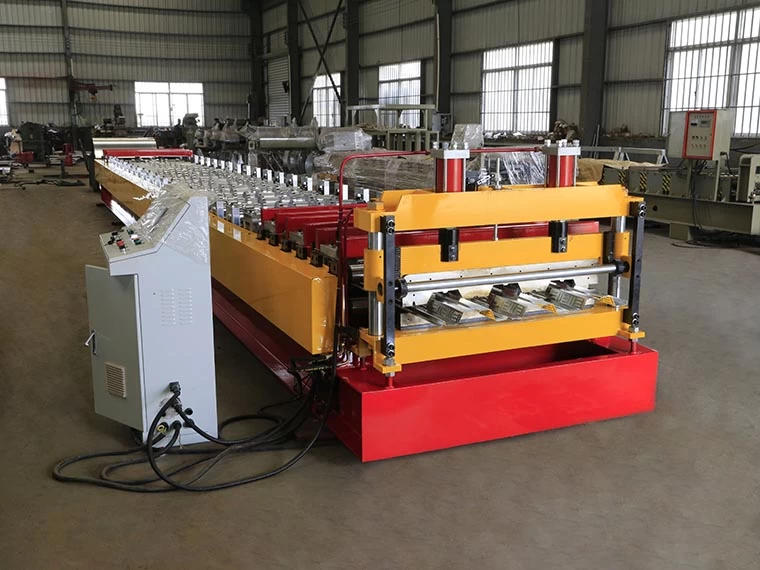

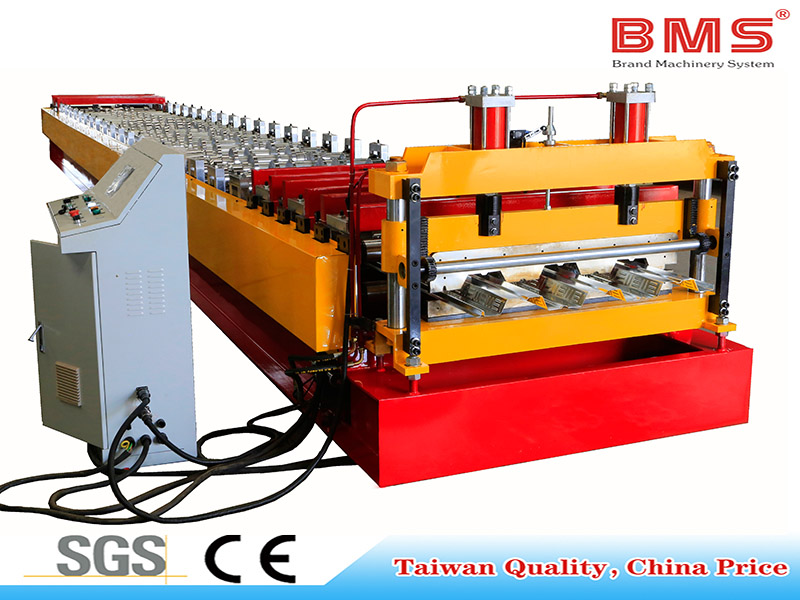

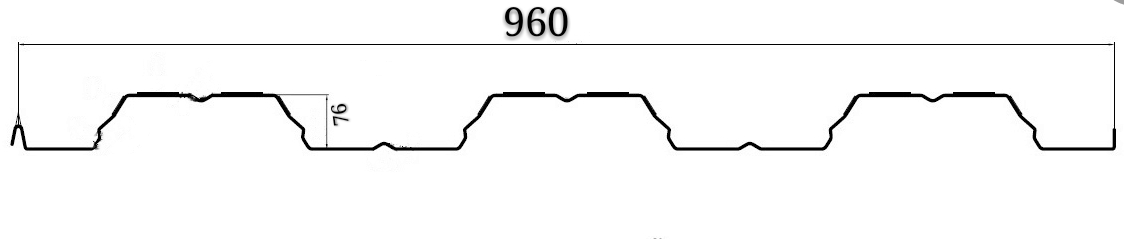

       YX76-960 Floor Decking Roll Forming Machine





 Metal Deck Roll Forming Machine


Click here to check the video:  European style Floor Deck Roll Forming Machine



1.Main features of floor decking roll forming machine




    The advantages of floor decking machine are as follows:

    1.The machine produced floor decking sheet have the features of low cost, light weight but high strength

       short building period, and re-cycle use.

    2.Save material , no waste.

    3.Easy operation, low maintenance cost

    4.One machine for 3 models for optional(by changing spacer)



2.Detailed Images of YX76-960 floor decking forming machine




    Machine Parts

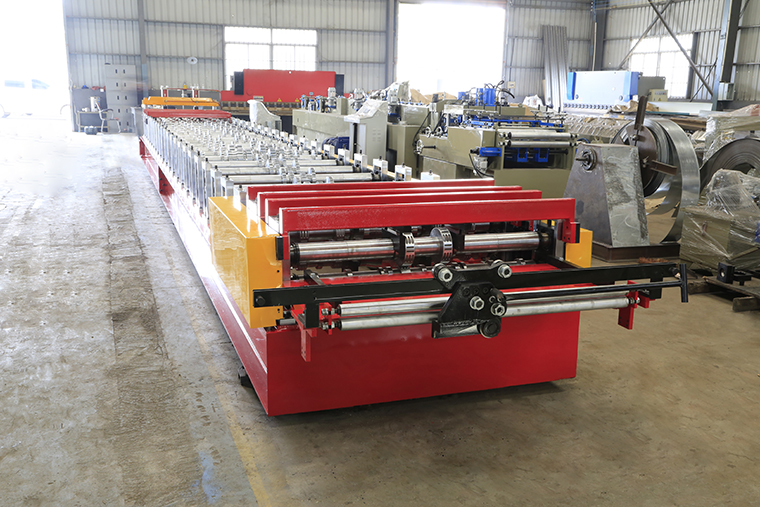

        1) YX76-960 floor decking machine manual pre-cutter

            Brand:  BMS    Original: China

        Only for cutting the first piece and the end of piece of the sheet.For easy operation and save material:

        The precutter is conneted with PLC control system,PLC is calculating profile length within roll forming.

        Once material is required to change,PLC is calculating the length for total quantity and remind operator,

        production finishes and able to manual shearing material before roll forming so as to change material for

        new production.It is the advanced function and good for production to save material, no waste.



      floor deck roll forming machine

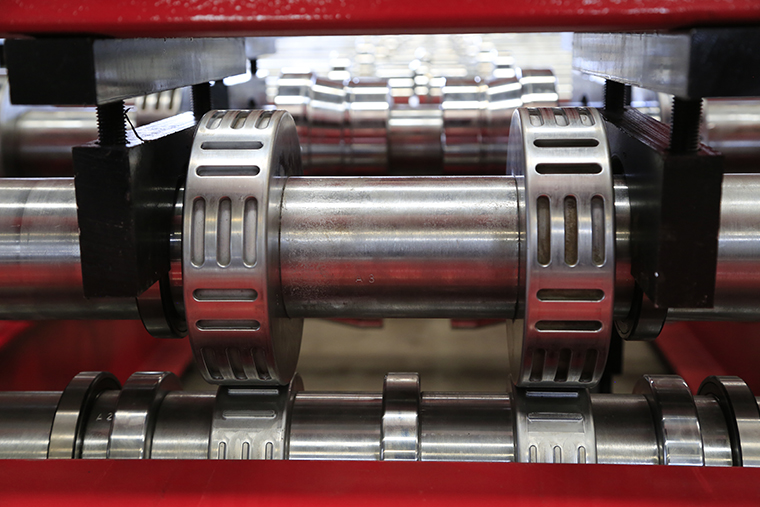

        2) YX76-960 floor decking machine rollers

        Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

        with Hard-Chrome Coating for long working life.

        Body framemade from 400# H type steel by welding

        The material for Embossing roller:bearing steel GCr15, heat treament



floor deck roll forming machine rollers

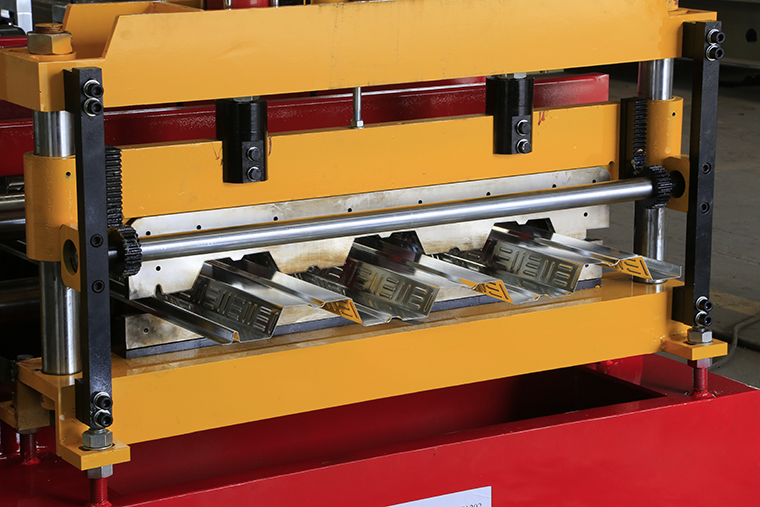

       3) YX76-960 floor decking machine post cutter

        Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding
        hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa



floor deck roll forming machine post cutter

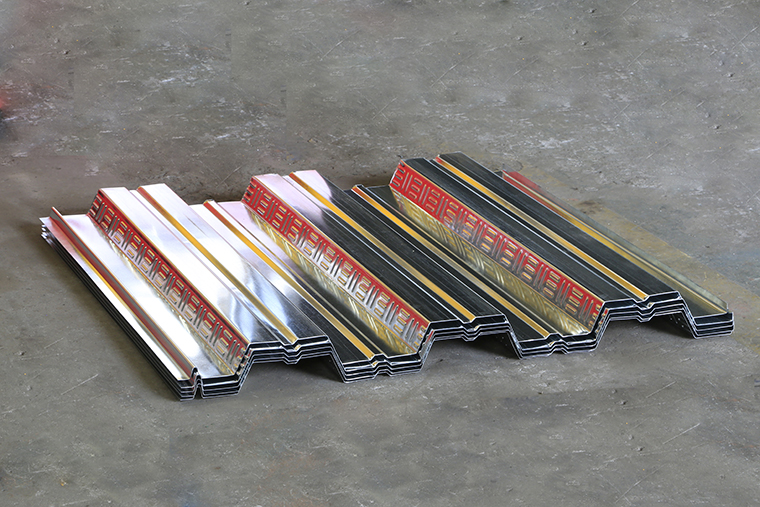

        4) YX76-960 floor decking machine product show



floor deck roll forming machine sample

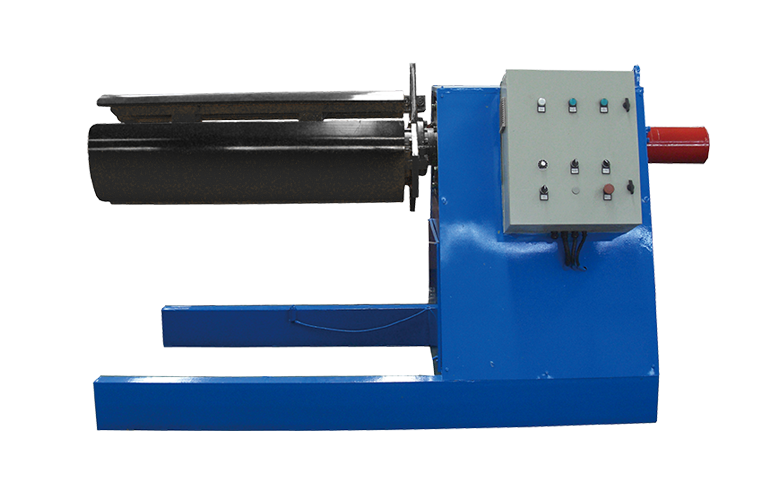

        5) YX76-960 floor decking machine decoiler

        ManualDecoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 1200mm, coil ID range 508mm±30mm

        Capacity: 5-9 Ton





roll forming machine decoiler

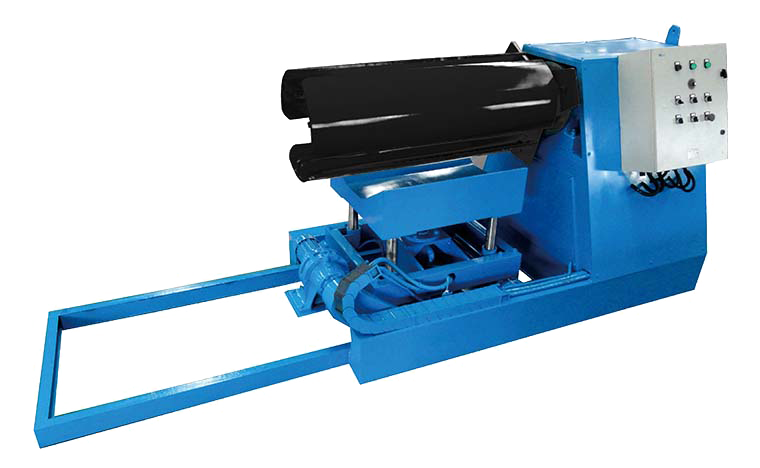

        With 6 tons hydraulic decoiler for option(with coil car or without coil car for optional)

6 tons hydraulic decoiler




        6) YX76-960 floor decking machine exit rack

        Un-powered,one unit



Other detailes of YX76-960 floor decking roll forming machine



Suitable for material with thickness 0.8-1.5mm

Shafts manufactured from 45#,Main shaft diameter=φ90mm,precision machined

Motor driving,Gear chain transmission, 22 steps to form.

Main motor=18.5KW , Frequency speed control. Forming speed approx.12-15m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Taiwan DELTA/SHILIN,Encoder brand:Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of floor decking roll forming machine



1. The warranty of  floor decking roll forming machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
