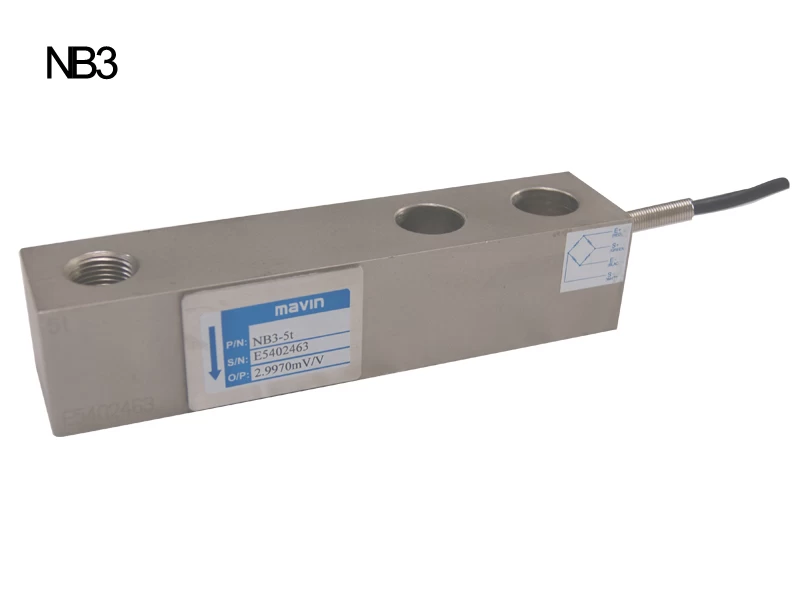

Floor scale beam load cell 2.5-7.5t NB3

NB3 is one of popular Single Ended Shear Beam load cell for applications such as industrial floor scales, barrel scales, and low to medium capacity vessel weighing. The floor scale load cells are available in a range of environmental sealing up to IP67.




  • Protection ClassIP67 / IP68
  • Rated Output2.0 or 3.0mV/V
  • Dimension172*42*38.1mm
  • MaterialSteel Alloy
  • Capacities2.5-7.5t

Floor scale beam load cell 2.5-7.5t

NB3 is one of popular Single Ended Shear Beam load cell for applications such as industrial floor scales, barrel scales, and low to medium capacity vessel weighing. The floor scale load cells are available in a range of environmental sealing up to IP67.


Key Features

Environmentally sealed by potting

Alloy steel construction

Capacity: 2.5-7.5 t


Usage & Applications

Hopper scales
Truck scales
Industrial weighing system

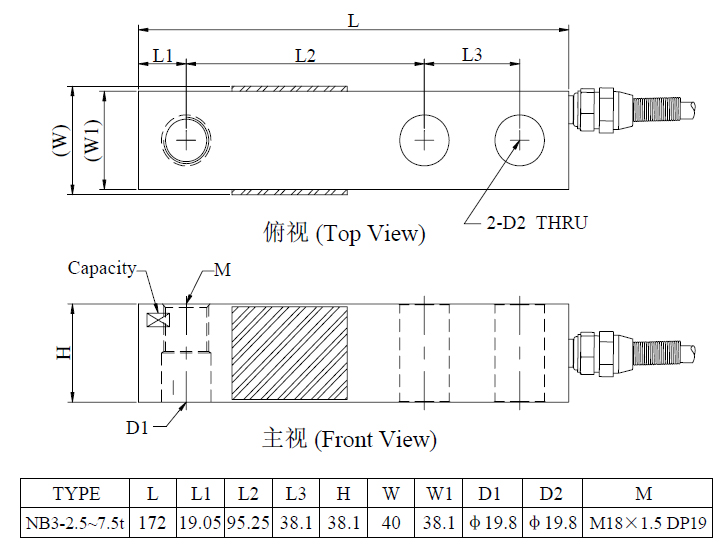

Dimension

NB3 Specification

Rated Capacities

2.5357.5 (t)

Rated Output

2.0 mV/V±0.15%3.0 mV/V±0.15%

Zero Balance

±0.0200 mV/V

Non-linearity

0.03 %R.O.

Hysteresis

0.03 %R.O.

Repeatability

0.03 %R.O.

30mins Creep

0.03 %R.O.

30mins Return

0.03 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.002 %R.O./

Temperature Effect On Zero

0.003 %R.O./

Input Impedance

390±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Steel Alloy

Protection Class

IP67 / IP68

Cable

φ5×6m

Recommended Platform Size

Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
