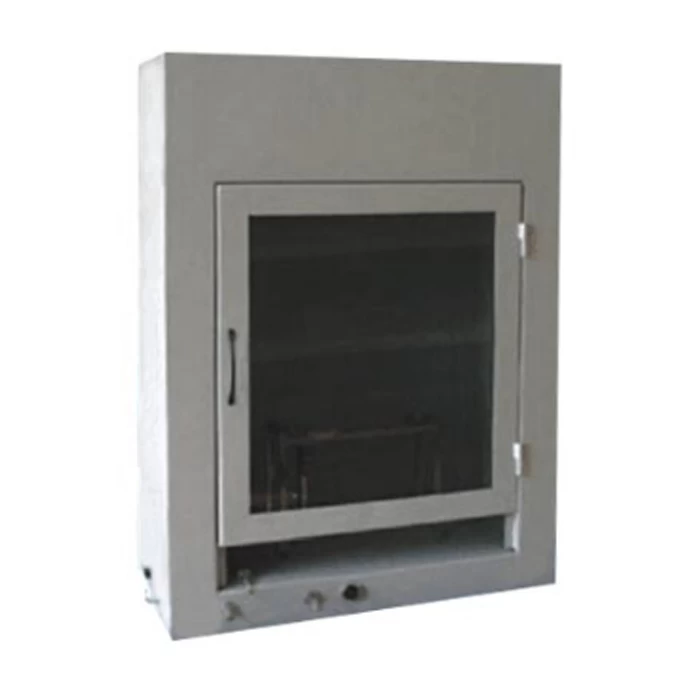

Foam Material Horizontal Combustion Testing Equipment GT-LE01
Product Introduction
Application:
The Combustion Testing Equipment GT-LE01 is suitable for laboratory evaluation under the condition of less than 250 kg/M3of foam under small sample in the small flame combustion performance.
|
Feature
- Use the cold plate which is usually used to automotive manufacturing to CNC machine center molding, beautiful appearance, high-grade.
- Outdoor grade powder paint technology, high quality, long-term use such as new, no discoloration.
- Digital control components, easy to use, safe and reliable.
- Dedicated burner which meets the standard , flame height adjustment convenient and stable.
Key Specifications
Model
|
GT-LE01A
|
GT-LE01B
|
Burning pipe diameter
|
9.5±0.5mm
|
Burner wing top
|
Opening length: 48±1mm,
Width: 1.3±0.05mm
|
Opening length: 48±1mm,
Width: 3±0.2mm
|
Burning nets
|
215×75mm. The ends are folded at right angles. Height 13mm
|
Flame height adjustment
|
10-60mm
|
Flame angle
|
0°
|
Ignition time range
|
0-99.99s
|
Residual combustion time range
|
0-99.99s
|
Time accuracy
|
0.01s
|
Inner box size
|
600×300×760mm
|
Dimensions
|
650×350×1000mm
|
Weight
|
50kg
|
Power
|
1∮, AC 220V 50Hz
|
Standards
|
GB/T8332,ISO9772
|
ISO 3582
|
