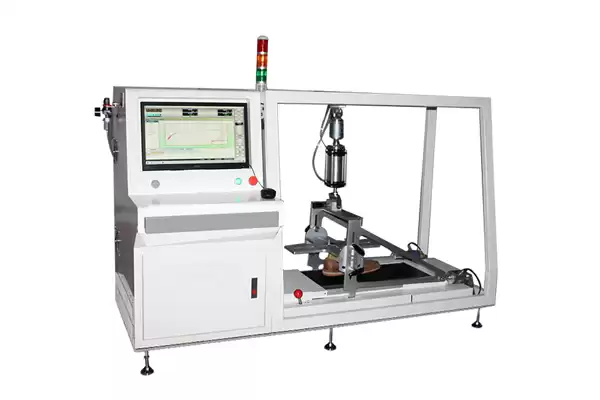

Footwear Slip Resistance Tester

Footwear Slip Resistance Tester is used to determine the friction coefficient of footwear under specified conditions.

Test Standards

ISO 13287-2019, ISO 20344-2011 5.11, ISO 20345-2011 5.3.5, EN ISO 13287-2019, GB/T 28287-2012, SATRA TM144-2011, ASTM F2913-2019, GB/T3903.6-2017, BS EN ISO 13287-2019

Parameters

Model AT-F3028
Vertical load cell range 1000N*1pc
Deviation of test force indication ±0.5%
Horizontal force load cell range  1000N*2pcs
Deviation of test force indication ±0.5%
Drive AC Servo motor, Fujiwara air cylinder (international famous brand)
Slide speed 0.1m/s~0.5m/s (adjustable)
Standard slide speed  0.3m/s±0.03m/s
Test vertical force range 300N~600N(Adjustable)
Test floor Ceramic tile, steel plate, or specify
Static contact time 0.5S
Standard test vertical force For footwear Size≥40, UK size 6.5 and above, (500±25)N
For footwear Size≤40, UK size 6.5 and below (400±20)N
wedge angle 7°
Controller  slip resistance (Friction)of footwear and flooring Test software, Windows operation system
