For Grab 21 inch Single Worm Slewing Drive

Due to the slewing bearing of the core part, the slewing drive can simultaneously support axial force, radial force and tipping moment. The slewing drive is easy to install, easy to maintain, and saves installation space.




For Grab 21 inch Single Worm Slewing Drive

The characteristics of the slewing drive of Maanshan jingwei slewing ring Co., Ltd.:

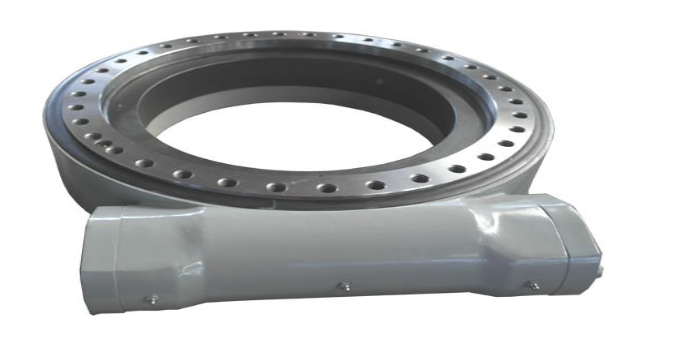

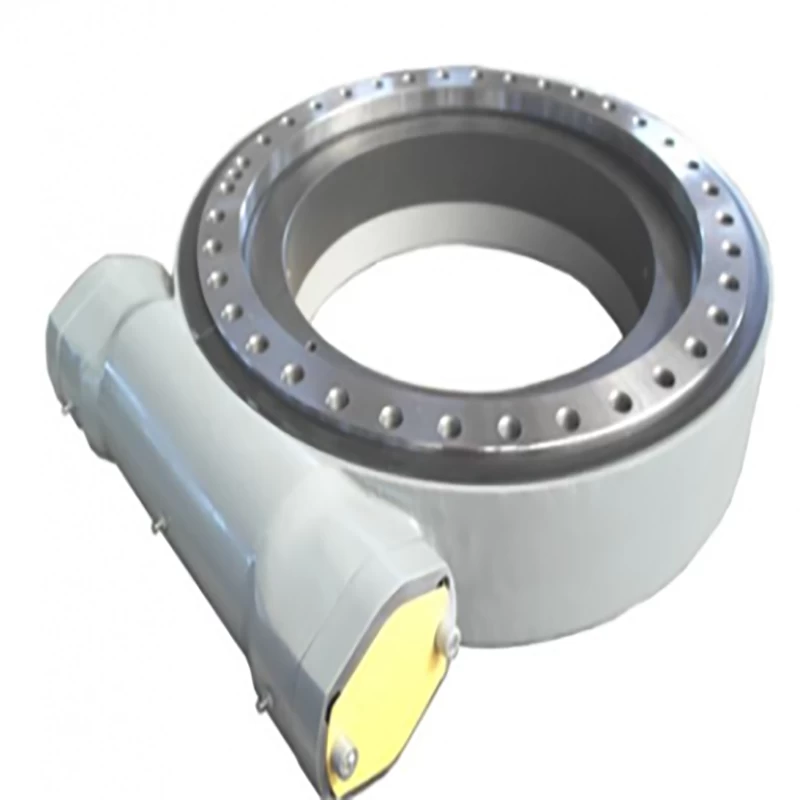

21 inch Single Worm Slewing Drive

1. It can get a lot of transmission force and is more compact than the staggered shaft helical gear mechanism.

2. The two-wheel meshing tooth surface is in line contact, and its bearing capacity is much higher than that of the crossed-axis helical gear mechanism.

3. The worm drive is equivalent to the screw drive, mostly the tooth mesh drive, so the drive is stable and the noise is very small.

4. Self-locking

High Precision 14 inch Slewing drive


Se21 slewing bearing is an honorary product of Maanshan Jingwei.

the Data Model is se21

theOutput Torque is 15KN.m

the Tilting Moment Torque is 203 KN.m

the Holding Torque is 105.8 N.m

the Static Axial Load is 1598KN

the Static Radial Load is 640KN

the Dynamic Axial Load is 335KN

the Dynamic Radial Loadis is 335KN

the Speed reducing ratio is 125:1

the Tracking Precision is 0.15°

the Self-lock is YES

the Weight is 149KG

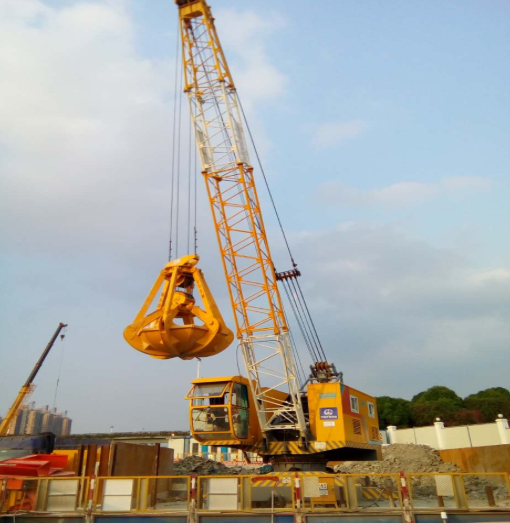

Application in the field of engineering machinery claws: Engineering machinery auxiliary equipment is a brand-new application field of slewing drive. It adopts slewing drive as the claw of the swing mechanism, which makes the design structure more concise, more conducive to use and maintenance, and the worm gear drive has more The large reduction ratio makes the positioning accuracy of engineering tools such as claws greatly improved.
