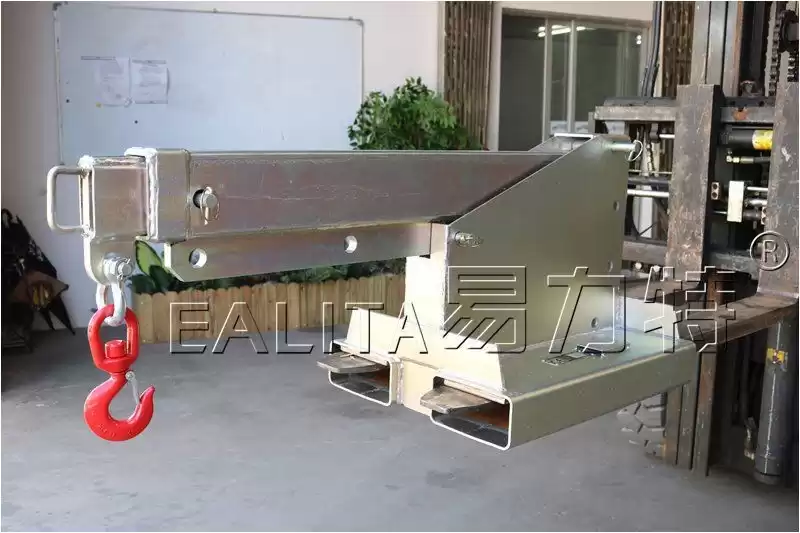

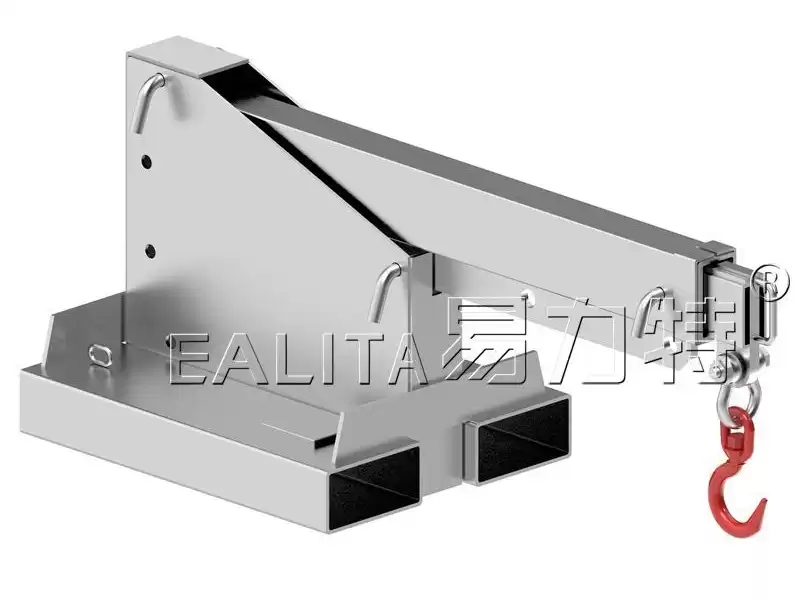

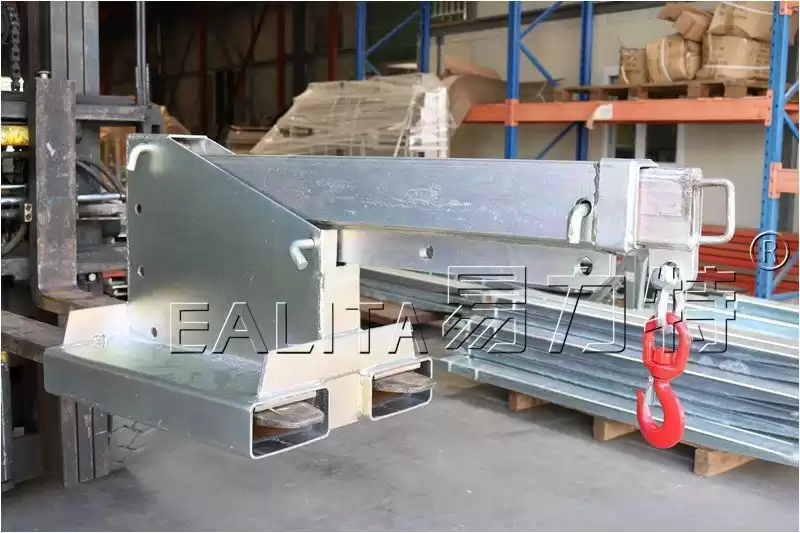

Type F-TJS2.5 Tilt Jib allows for additional height, compensating for length of the hook and slings when lifting.

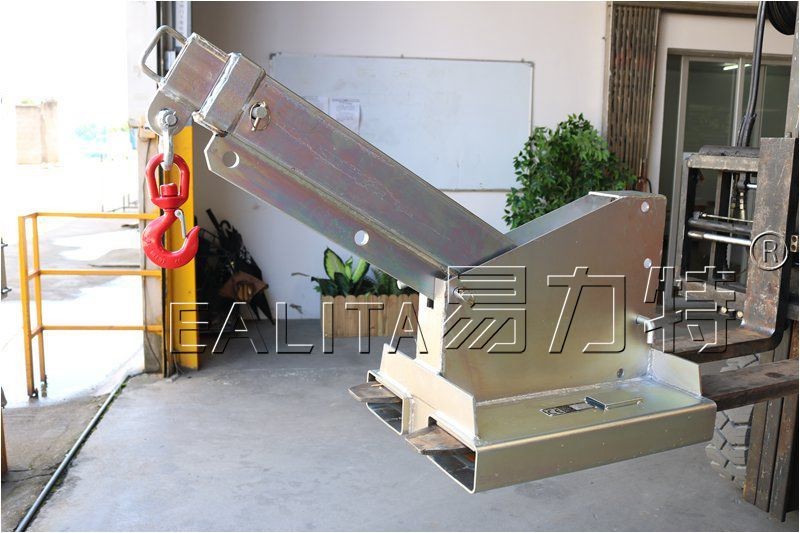

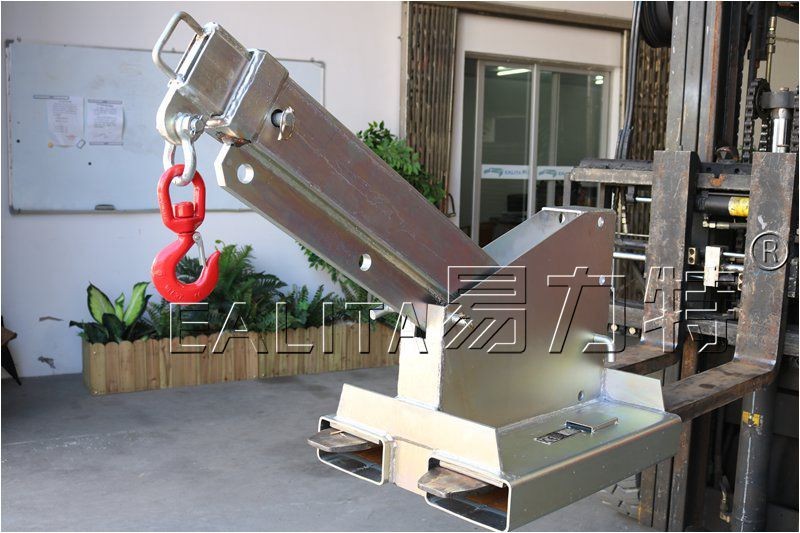

- The jib boom can be set at 3 angled positions as well as level.
- Jib also offers 5 different hook positions, with a 2 metre maximum reach.
- Zinc plated finish.
Specifications
• Code: 03.01.04.0016
• Safe Working Load (SWL) 2500kg Max.
• Unit Weight 130kg
• Load Centre 825mm
• Pocket Size 165 x 65
• Pocket Centres 337 mm
• Horizontal C of G 650mm
• Vertical C of G 300mm
