Truck Description
Crane Truck are made by components mainly including the lifting arm, hydraulic winch, range changing oil cylinder, slewing reducer, outrigger cylinder, oil feeder, hydraulic system, safety device, hook block as well as the beam and post. The working principle is: An external power drives the hydraulic oil pump to provide high pressure oil to the hydraulic system and then the oil is distributed to various working units through the manual plug valve, outrigger reversing valve, and multi-way reversing valve to perform the lifting works as needed.
Advantages:
1.Has the function that self discharging.
2.Advanced development & analysis means make sure design is very reliable.
3.Equip XCMG straight arm crane between the cab and van box.
4.Advanced key hydraulic components make the operation safe and reliable.
5.Anti-slewing impulse equipment that make vehicle running safely.
|

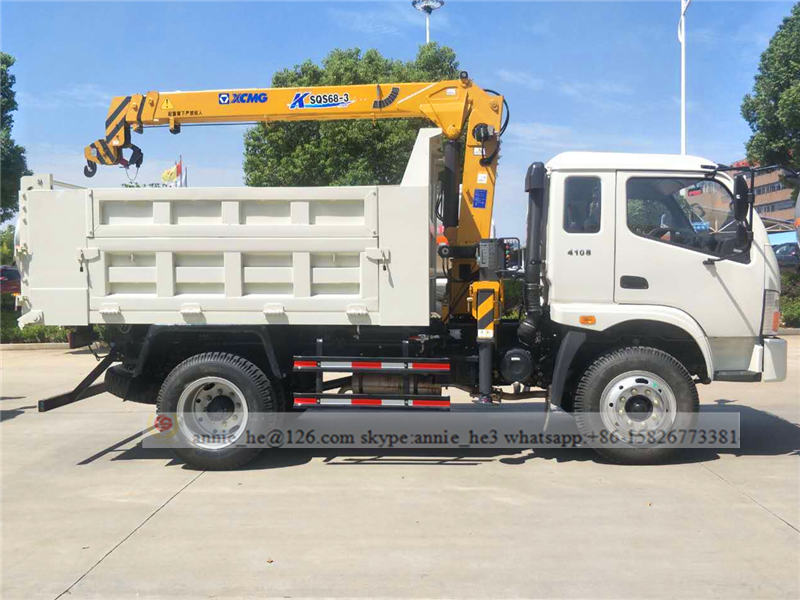

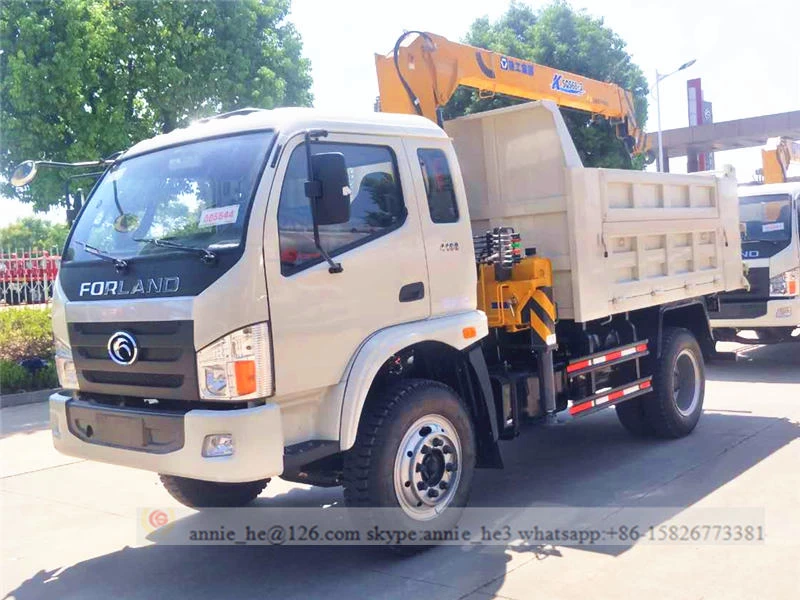

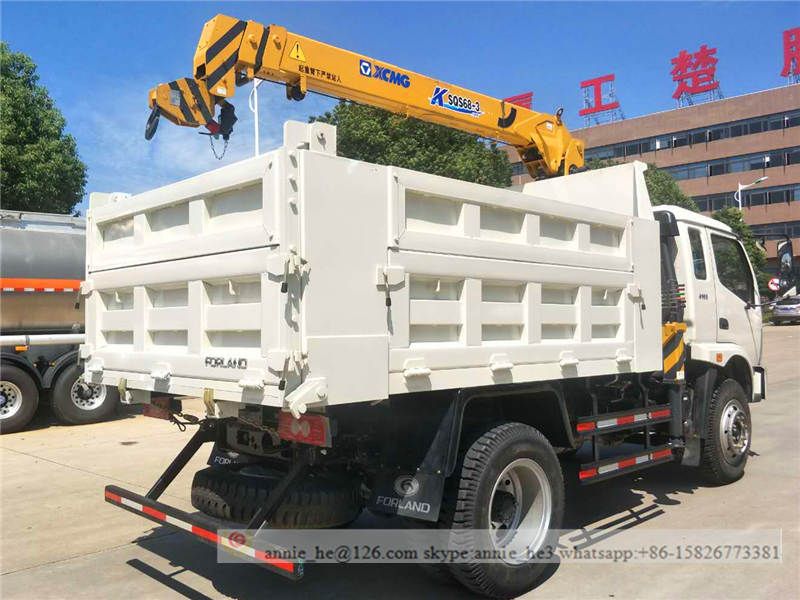

FOTON Dump Truck With 3T Crane
|
|
Truck description
|
GVW (kg)
|
4480
|
|
Kerb weight (kg)
|
3360
|
|
Overall
dimension (mm)
|
Length
|
5995
|
|
Width
|
2400
|
|
Height
|
2720
|
|
Box dimension(mm)
|
Length
|
2400
|
|
Width
|
2070
|
|
Height
|
700
|
|
Chassis
|
Number of axles
|
2
|
|
Allowable Passengers in cab
|
2
|
|
Transmission
|
5speed
|
|
Wheel base(mm)
|
3000
|
|
Rear Axle
|
1089C/6.33
|
|
Output
|
105kw
|
|
Tire specification
|
8.25R16
|
|
Crane Description
|
Max lifting Capacity
|
3200kg
|
|
Lifting height
|
9.5m
|
|
Working radius
|
7.5m
|
|
Rotation Angle
|
360°
|
|
Other remark
|
Above specification is just for reference, please send us your request details.
|
|
