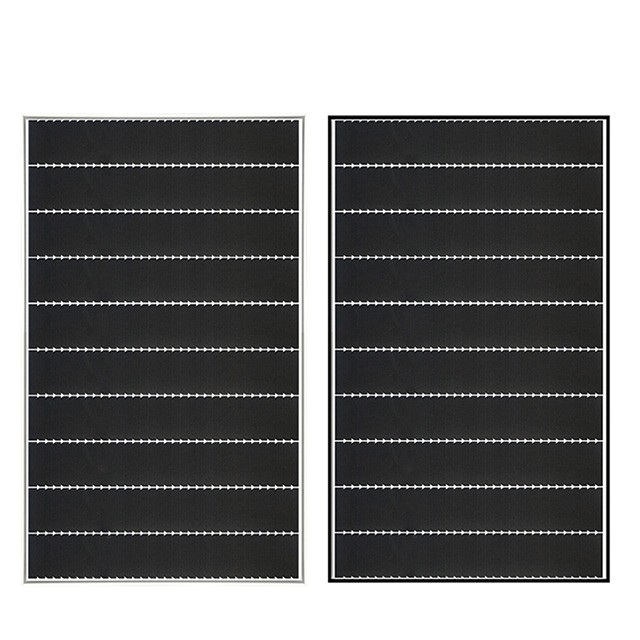

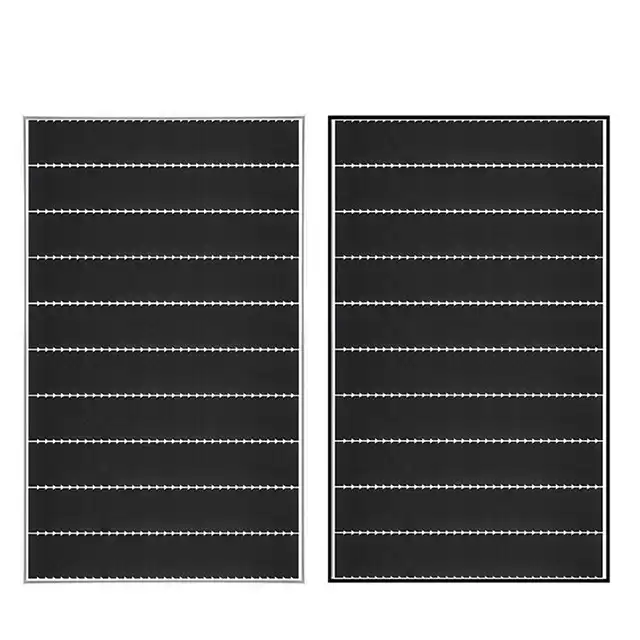

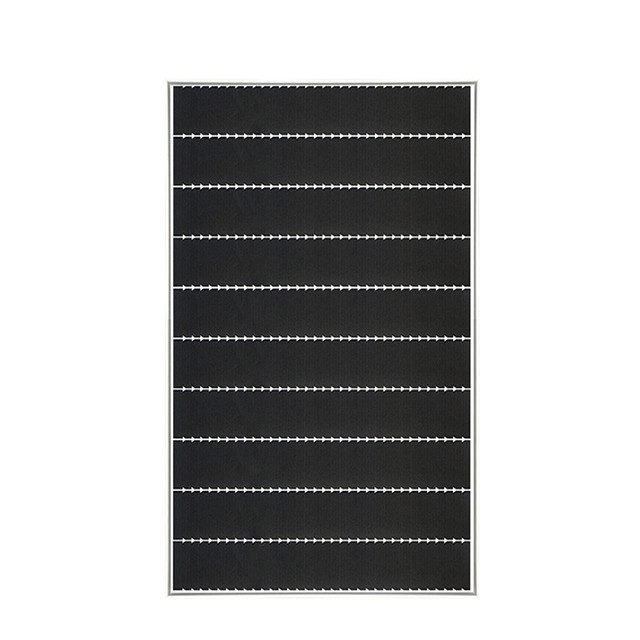

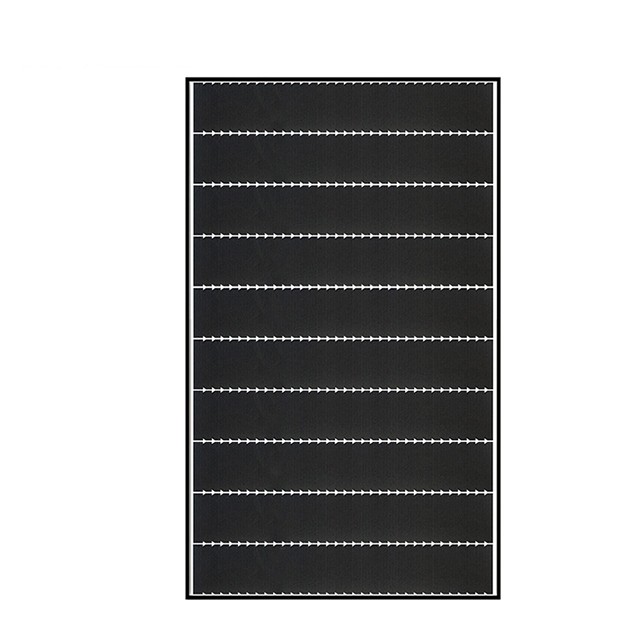

FOTOVO 520-530W Mono-facial Single Glass Shingled Solar Panel with Monocrystalline cell

Compared with normal solar panel, shingle solar panel is more efficient and has more beautiful design.Shingled solar module with no welding crack, low operating temperature, high compressive strength is safe and reliable.



  • Warranty25 years linear warranty
  • CertificateTUV, CE, SUD

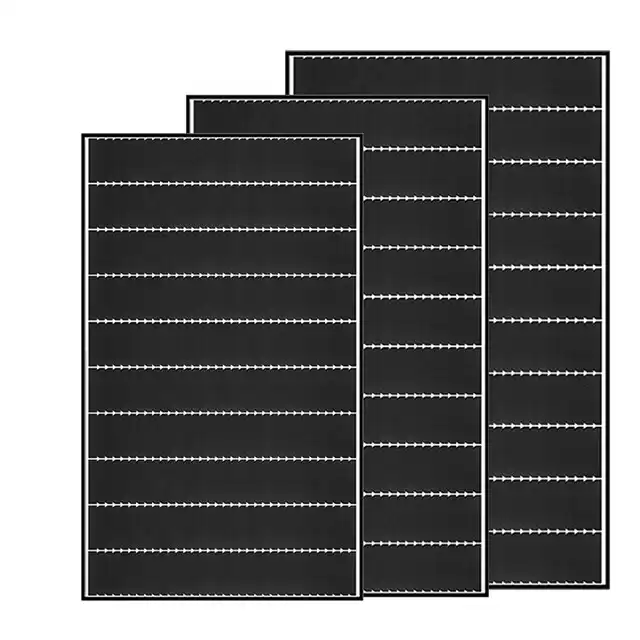

FOTOVO Monocrystalline Mono-facial single Glass Shingled Solar Panel

Product Features

1.With innovative structure, low-temperature adhesive,and high-density layout.

2.Shingle solar panel is more efficient and has more beautiful design,super strong frame and mechanical load capacity.

3.Beautiful appearance, even layout, more scientific and technological aesthetic.

4.Safe and reliable: no welding crack, low operating temperature and high compressive strength.

4.Super-high“Screen ratio”to reduce system cost.

5.The low heat spot effect: prolong the life of components and reduce the generation loss.

6.All-parallel arrangement brings high effective generation hours to reduce the power loss caused by the shading.

7.Green environmental protection: adhere to the green concept, non-fluoride low lead.

Product Specification

Maximum Power at STC-Pm [W]
520w
525w
530w
Optimum operating voltage[Vmp] 41.637v 41.80v 41.92v
Optimum operating current[Imp]
12.489A     12.56A 12.64A
Open-Circuit Voltage-Voc [V]
50.833V 50.85V 50.93V
Short-Circuit Current-Isc [A]
13.137A 13.20A 13.21A
Temperature Coefficient of Isc [°C]
(0.065±0.015)%/℃
Temperature Coefficient of Voc [°C]
Temperature Coefficient of Voc
Temperature Coefficient of Pm [°C]
-(0.5±0.05)%/℃
NMOT
47℃(±2℃)
Operating temperature[°C] -40~+ 85
Maximum System Voltage (V)
1500V DC
Power tolerance[w] +1~5w
Cell Shingled mono-crystalline silicon solar cells
No. of Cells and connection
444(37*2*6)
Dimensions of solar cell[mm]
Mono PERC 166 ×33.2mm
Dimensions of module[mm]
2056×1236×35mm (L×W×H)
Weight[kg]
26.30kg

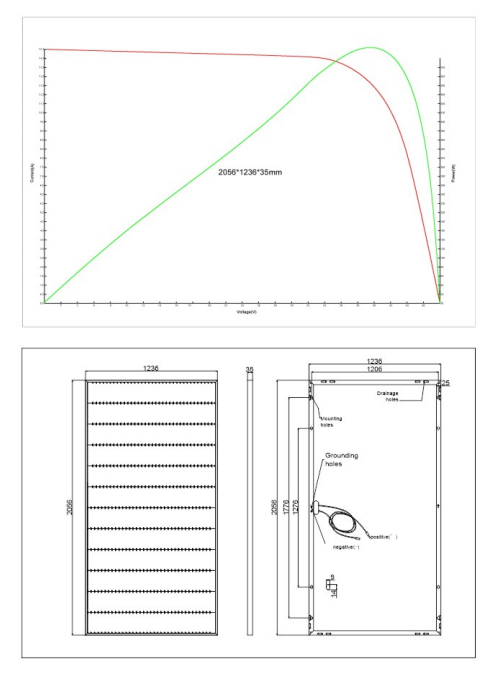

Product Drawing

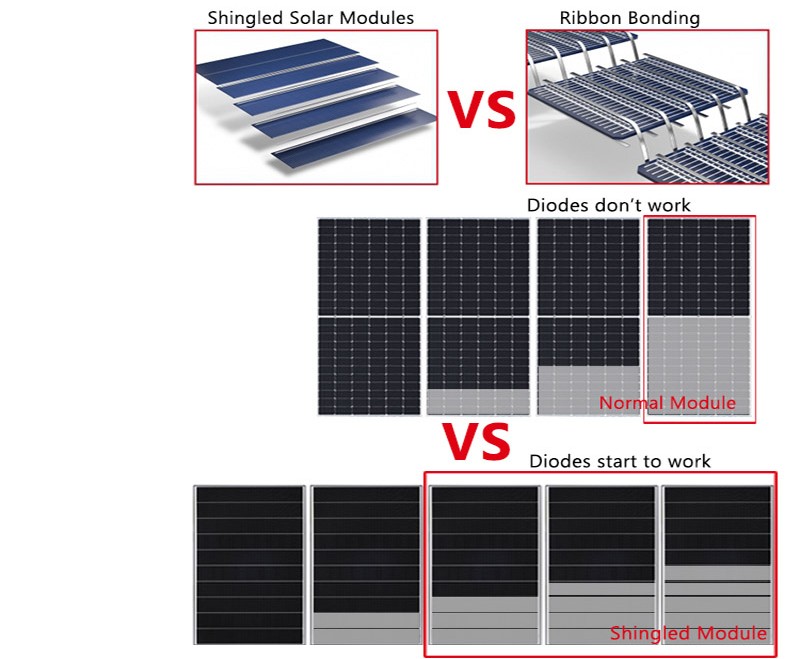

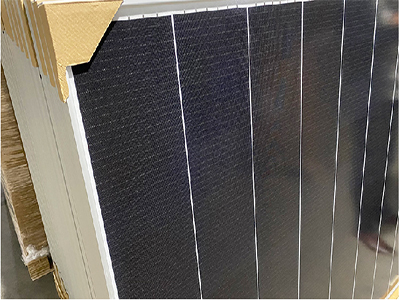

Difference

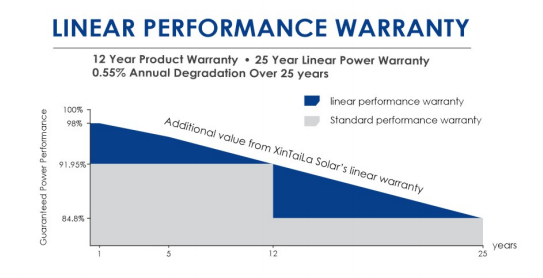

Warrenty


Difference

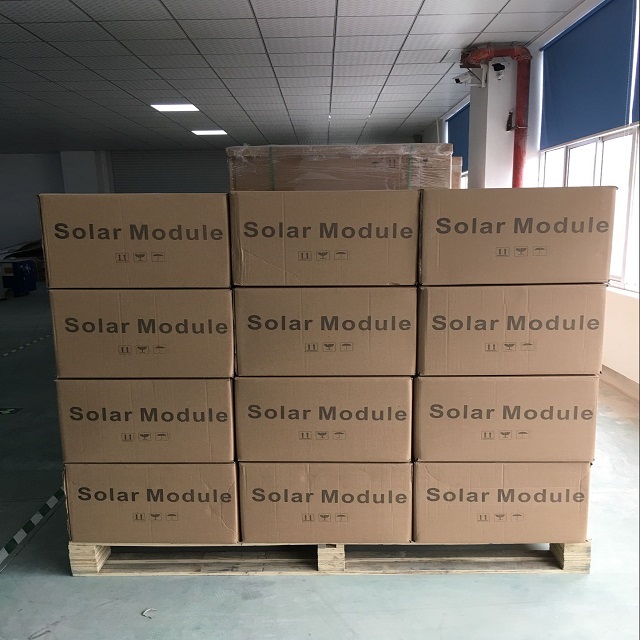

Package

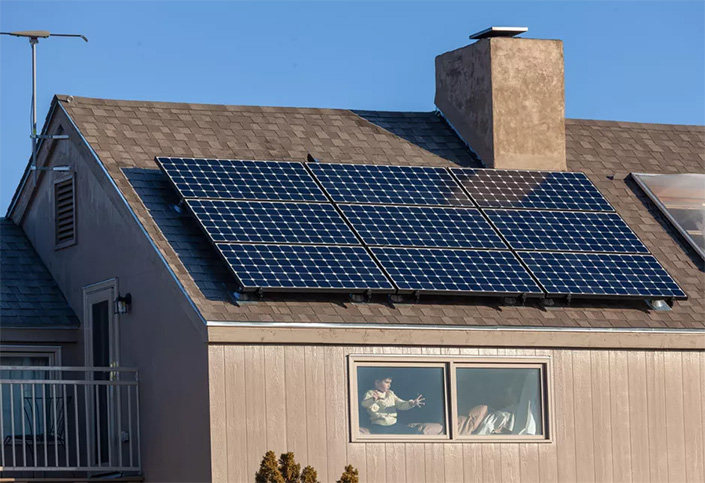

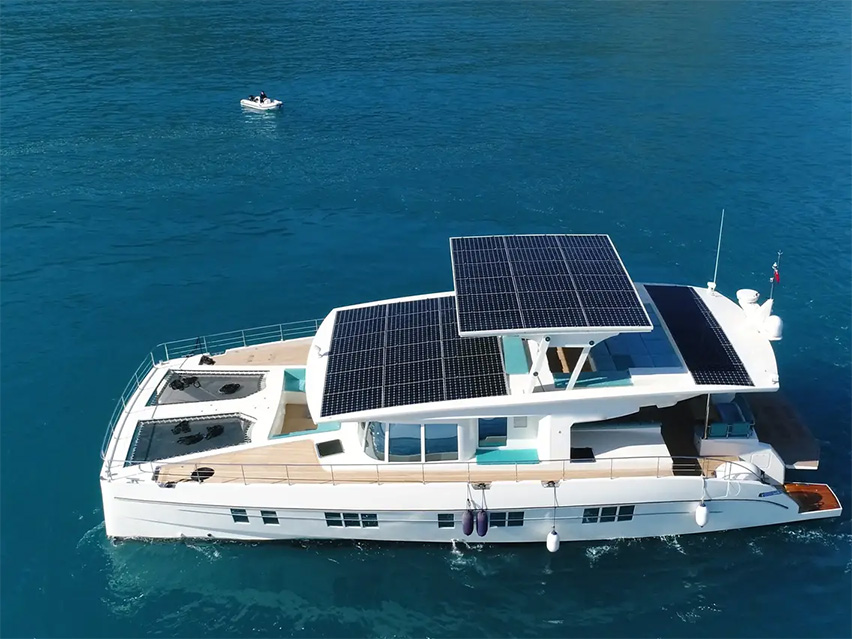

Project






FAQ

Q1: Can I get samples before order?

A1: Sure, we would like to offer samples for your evaluating the quality first.


Q2: What about the lead time?

A2: Sample needs 10 days, mass production needs 2-3weeks.


Q3: What’s the warranty?

A3: Our solar panels are assured with 12 years product warranty, and 25 years linear power warranty.


Q4: How can I pay the solar panels ?

A4: We could accept payment by T/T, Paypal, West union etc.


Q5: How can I contact you?

A5: Pls feel free to leave a message on our website, any question will be answered asap.
