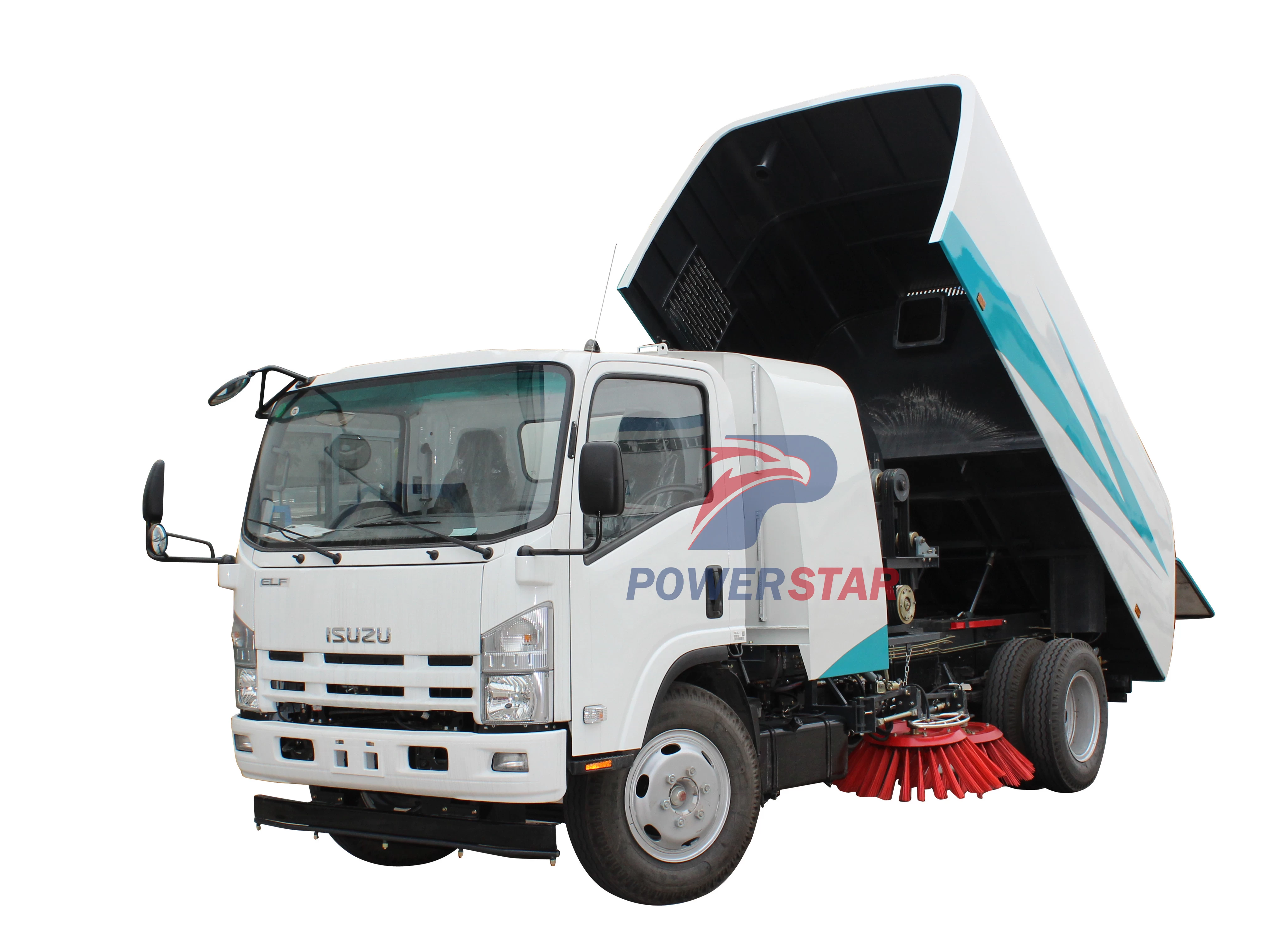

Four brushes road sweeper truck Isuzu

Diesel road sweeper truck Isuzu



Brand new road waste sweeping Truck Isuzu 6m3

Four brushes road sweeper truck Isuzu





 Applications:

Brand new sweeper truck Isuzu (also called Road cleaning sweeper truck, road sweeping vehicle, vacuum road sweeper, street road sweeper, Multi functional road sweeper, compact road sweeper truck ) is a new road cleaning machine developed through refitting the Isuzu truck chassis which is excellent in performance and conforms to the European emission standard.


This Isuzu street sweeping vehicle has a proper and practical structure with four sweeping brushes in the middle while the suction port at the back part of the vehicle chassis. The sweeping brushes can avoid obstacles automatically. With low-noise suction system and famous-brand hydraulic components, our street sweeping vehicle are more stable and reliable in performance.


The Sweeper truck also adopts the way of vacuum suction and sweeping combination, wet dust removal, electro-hydraulic control and hydraulic dumping unloading to clean the road.



 Key Features:

---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Dustbin tank body capacity from 3 to 10 Cublic Meter.
---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.



 Specifications:



Brush road sweeper truck Isuzu (8 cbm)

General

Vehicle Brand

POWERSTAR

Chassis Brand

ISUZU ELF

Overall Dimension

6150 * 2300 * 2930 mm

GVW / Kerb Weight

10,000kg / 5,350kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

190 HP (139 KW)

Displacement

5199ml

Emission Standard

Euro IV or V

Chassis

Drive Type

4X2, (left hand drive)

Transmission

ISUZU MLD 6 speed levers with 1 reverse

Wheelbase/No. of axle

4175 mm / 2

Tire Specification

8.25-16

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Dustbin tank

6 cbm

Water tank

2,000 liters

Sweeping width

3-20 km/h

Working speed

 20~25 s

Max sweeping

65000 m2/h

Control system

Electrically Hydraulic control

Control panel

English or Your language

All standard accessories: Auxiliary engine,  dust control system, fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Water jetting system can be choose.

** Paint color or LOGO.
