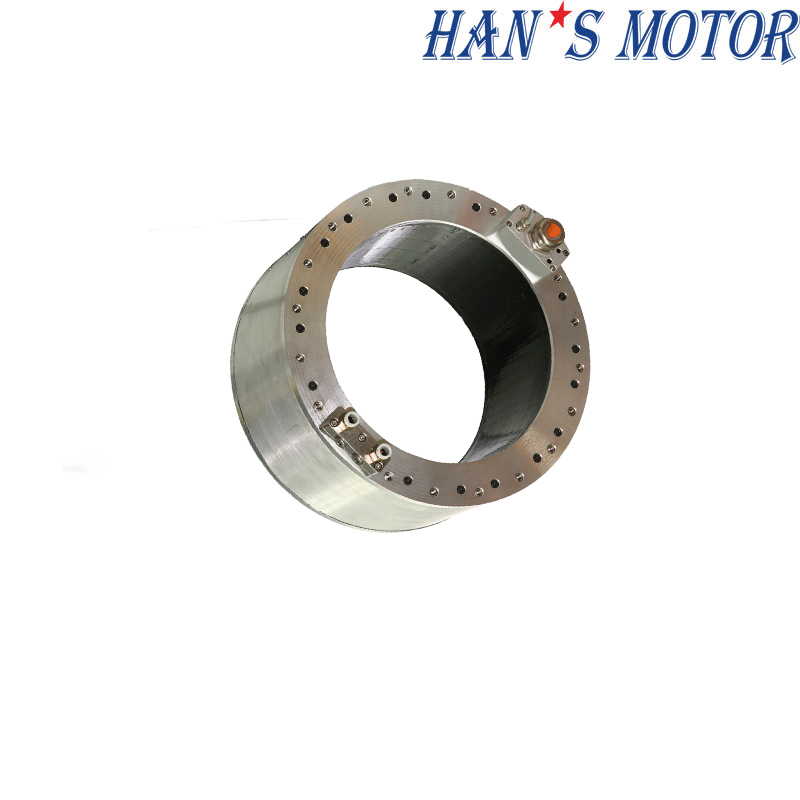

Products Name: High Torque Frameless Inner Rotor Torque Motor BI
Series
Product Specifications
|
Torque Motor BI7
Series Specification
|
|
Motor
Model No.：BI7-xxx-x-A-0-W
|
|
|
003-P-A-0
|
005-S-A-0
|
|
Performance
Parameters
|
Symbol
|
Unit
|
|
Pole
pairs
|
p
|
—
|
11
|
11
|
|
Max.Working
Bus Voltage
|
Vdc
|
V
|
600
|
540
|
|
Peak
torque
|
Tp
|
Nm
|
70.0
|
95.0
|
|
Continuous
torque (Water cooling)
|
Tcw
|
Nm
|
30.0
|
50.0
|
|
Continuous
torque (Natural cooling)
|
Tc
|
Nm
|
12.7
|
22.0
|
|
Peak
Current
|
Ip
|
Arms
|
15.7
|
12.0
|
|
Continuous current
(Water cooling)
|
Icw
|
Arms
|
5.7
|
6.1
|
|
Continuous current
((Natural cooling)
|
Ic
|
Arms
|
2.4
|
2.7
|
|
Torque
Constant
|
Kt
|
Nm/Arms
|
5.3
|
8.1
|
|
Back EMF
Constant
|
Ke
|
Vrms/rad/s
|
1.8
|
2.7
|
|
Back EMF
Constant
|
Ke
|
Vrms/(1000r/min)
|
320.0
|
492.0
|
|
Line
Resistance
|
R
|
Ω
|
5.8
|
9.2
|
|
Line
Inductance
|
L
|
mH
|
17.0
|
35.3
|
|
Max.speed,Tcw
|
Nmax,Tcw
|
rpm
|
1100
|
520
|
|
Max.speed,Tc
|
Nmax,Tc
|
rpm
|
1200
|
650
|
|
Max.speed,Tp
|
Nmax,Tp
|
rpm
|
750
|
210
|
|
Max.speed,0
|
Nmax
|
rpm
|
1250
|
750
|
|
Power
consumption, output Tcw
|
Plw
|
W
|
396
|
875
|
|
Power
consumption, output Tc
|
Plc
|
W
|
70
|
171
|
|
Motor
constant
|
Km
|
Nm/√W
|
1.52
|
1.69
|
|
Cooling
water flow
|
dV/dt
|
L/min
|
3.50
|
2.61
|
|
Cooling
water temperature difference setting
|
△θ
|
k
|
5
|
5
|
|
Rated
winding temperature
|
θ
|
℃
|
130
|
130
|
|
Motor
Mass
|
Ms
|
Kg
|
4.3
|
5.5
|
|
Rotor
Mass
|
Mr
|
Kg
|
1.8
|
2.4
|
|
Rotor
Moment of Inertia
|
Jm
|
Kg*m2
|
0.0029
|
0.0039
|
|
Cable
length (Can be extended optional)
|
L
|
M
|
3.0
|
3.0
|
|
Cable
Minimum bending radius
|
R
|
mm
|
37.5
|
37.5
|

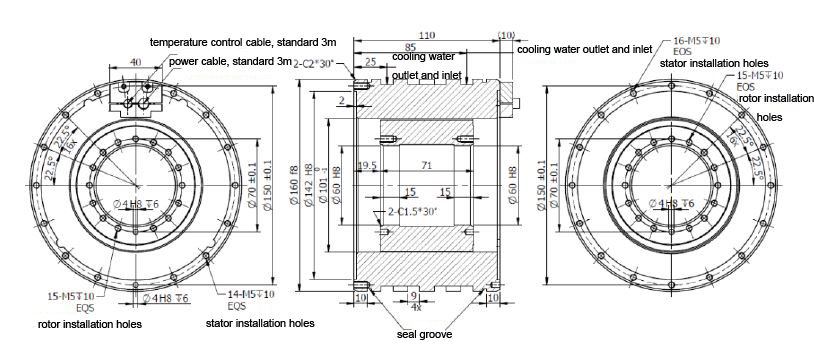

Dimension
|
Model
|
Center Hole(mm)
|
Outer Diameter
|
Height/mm
|
Spec.
|
Continuous torque/Nm
|
Peak torque/Nm
|
|
BI7
(water cooling)
|
60
|
160
|
90
|
BI7-003
|
30
|
70
|
|
110
|
BI7-005
|
50
|
95
|
|
190
|
BI7-010
|
105
|
204
|
Characteristics:
• Low-noise, and insulation of high temperature
• High-torque
• CE and EMC quality certification
Running
smoothly, high quality and excellent performance
Why choose us?
Han’s Motor is a
global supplier in direct drive technology, ranging from linear motors, torque
motors, servo drives, robots to customized motors and other industrial
automation solutions.
Founded in Shenzhen, China in 2005, Han’s Motor has
rapidly grown to the leading company in its domestic market, fully equipped
with over 300 dedicated people in R&D, production, supply chain, quality,
sales, and support functions. It combines its technology strengths and domain
expertise to provide a vast range of customer-focused solutions and tens of
thousands of direct drive motors are successfully applied in a wide spectrum of
industries every year.
Widely used in machine tools and
Robot applications
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL
ect.)
Leading time: According to the order quantity, 10
days for the small order and 20 days for the bulk order
