FRS License Free Two Way Radio With Vibration
Mini Vibration Walkie Talkie,This portion of frequency makes it possible to use the radio on PMR446, LPD frequencies (433-435 MHz) and FRS462 (Family Radio Service), T-S2 is a cost-effective radio sulution for shop,small warehouses and restaurants etc.
Quick Details
1.Frequency:PMR 446MHZ; FRS 462.5625-467.7125MHZ; LPD 433MHZ;
2.Memory Channel 199;
3.Compander;
4.Scrambler;
5.Vibration function;
6.Emergency function;
7.VOX function;
8.CTCSS/DCS Decode&Enclode;
9.Non-standard CTCSS/DCS;
10.Channels and capacity of battery;
11.Power on voice selection;
Specification
|
GENERAL
|
|
Frequency
Range
|
136-174MHz/400-480MHz
|
|
Operating
Temperature
|
-20℃to +55℃
|
|
Frequency
Combination
|
please
lock frequency synthesize
|
|
Frequency
Stability
|
±2.5ppm
|
|
Memory
Channel
|
199
|
|
Working
voltage
|
3.7V
|
|
Antenna
Impedance
|
50Ω
|
|
Operating
Mode
|
simplex
of co-frequency or alien
|
|
Dimensions
|
85*38*25mm
|
|
Weight
|
80g
|
|
TRANSMIT PART
|
|
RF
power
|
3W
|
|
Modulate
Mode
|
F3E
|
|
Max.Freq.Deviation
|
≤5KHz
|
|
Remain
Wave Radiation
|
＜-60dB
|
|
Transmitting
Current
|
≤1000mA
|
|
RECEIVER PART
|
|
Sensitivity
|
＜0.20uV (12dB SINAD)
|
|
Squeich
Sensitivity
|
＜0.20uV
|
|
Intermodulation
Antijamming
|
50dB
|
|
Audio
Power output
|
500mW
|
|
Receiving
Current
|
≤100mA
|
|
Squelch
Stangby
|
20mA
|

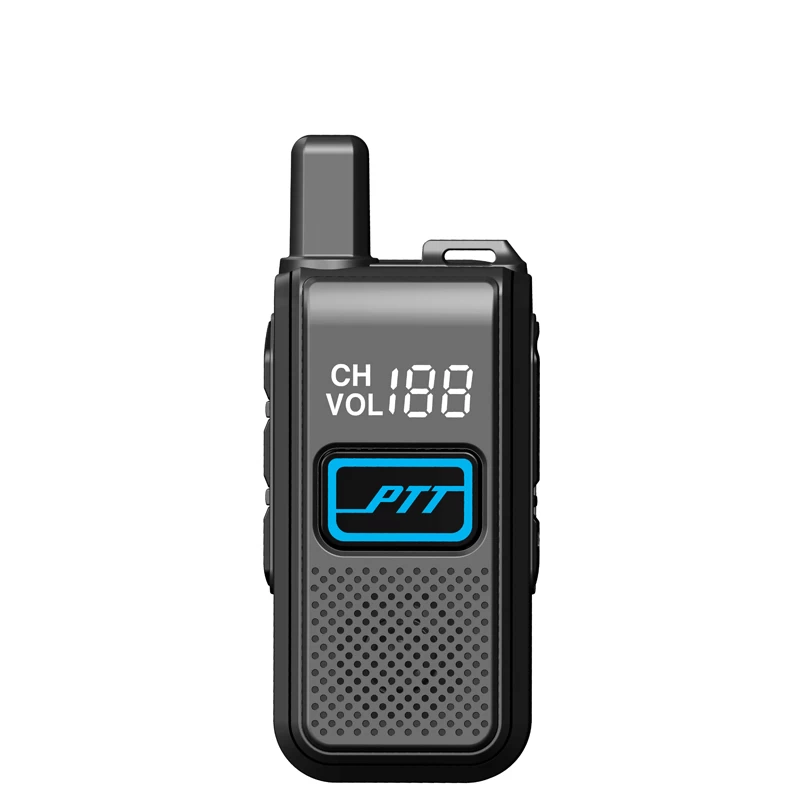

Mini Vibration Walkie Talkie
