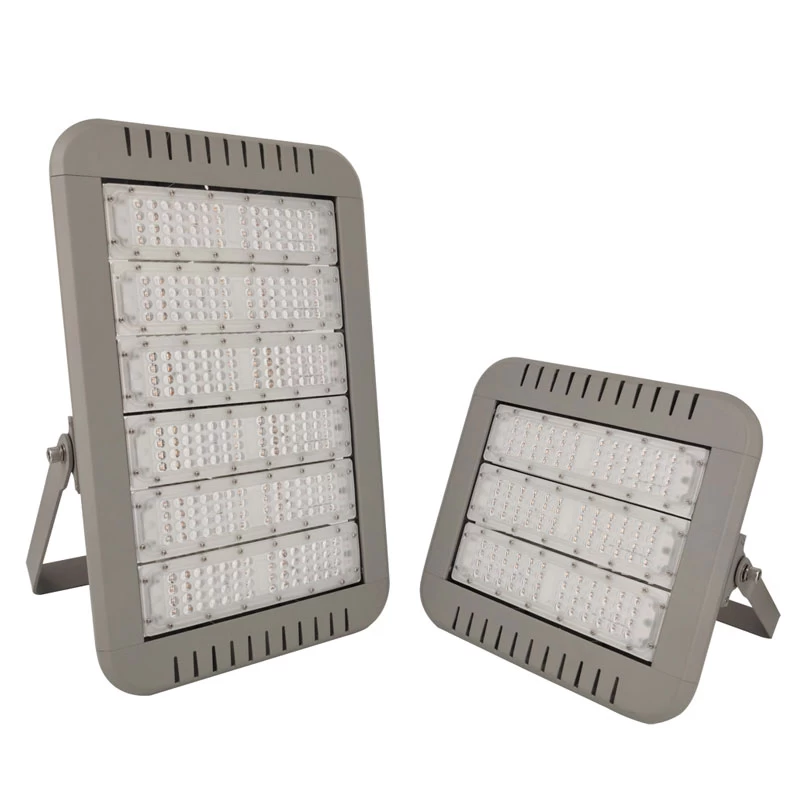

Product Item:FSSZ Outdoor Ip66 Die Casting Aluminum 300w Led Flood Light Housing
Product Advantages:

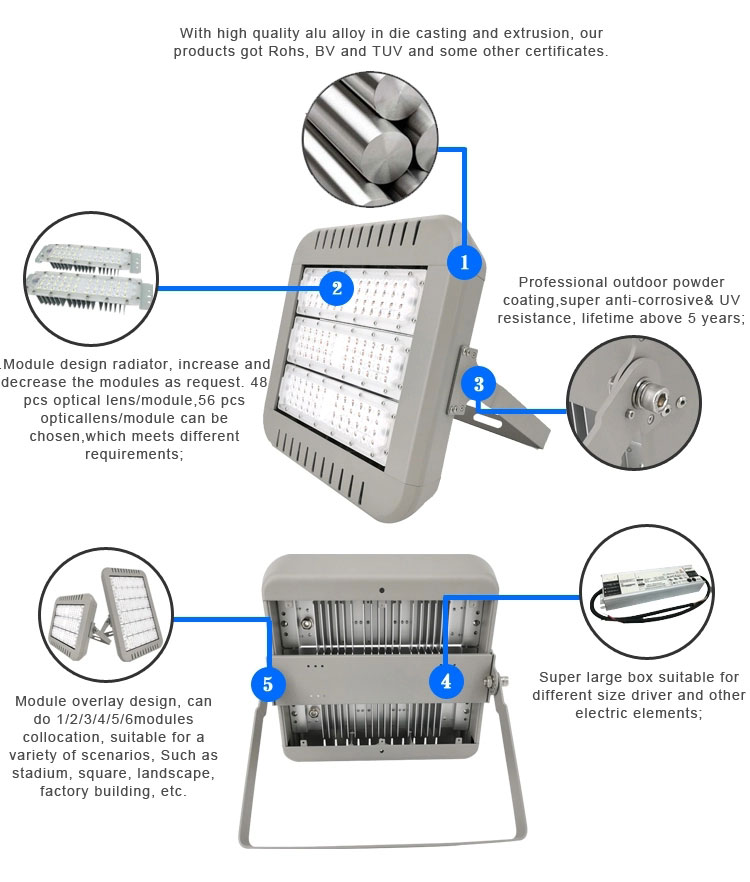

1. Aluminum die casting housing makes cooling faster.Compact structure and nice outlook. Modular separated design, increase more ventilation area.Warranty up to 5 years. Simple and flexible driver installation methods can be adapted to different brands of driver.Adjust the angle freely to meet the requirement of lighting from different angles.
2. Standard modular radiator, which can be matched with 48-in-1, 56-in-1, 64-in-1, special lenses for floodlights, and offers 30-60-90 degree matching options to choose from. Single module power, whole lamp power, light effects, etc. can be freely matched, more flexible, one shell for multiple purposes. Adjustable led flood light fixture all parts of the housing have passed ROHS inspection. Flexible and changeable combination of stitching methods to maximize the suitability for different scenarios.
Foshan Nanhai Shunzhan Mould Lighting Metal Products Co., Ltd. has a variety of led stadium flood light housing for customers to choose from and supports customization. We continue to develop and design more LED products that are recognized by customers and different markets.
|
Model:
|
TG19B
|
TG1B-2
|
TG19B-3
|
TG19B-4
|
TG19B-5
|
TG19B-6
|
|
Power:
|
30w-50w
|
60w-100w
|
90w-150w
|
120w-200w
|
150w-250w
|
180w-300w
|
|

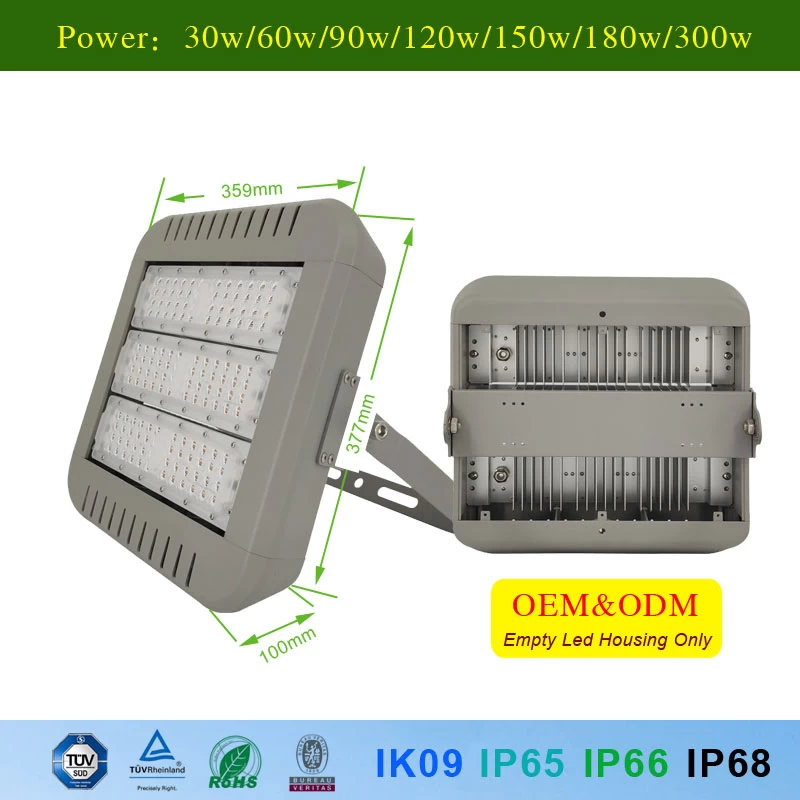

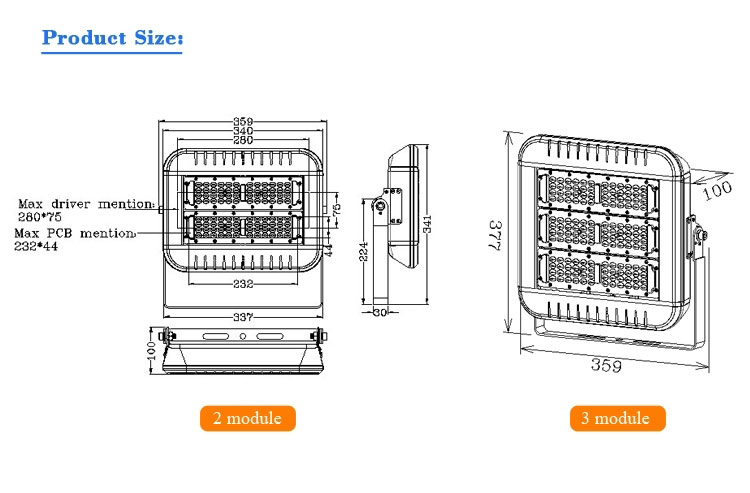

Size(mm):
|
359*10*284
|
359*10*341
|
359*10*377
|
359*10*45
|
359*10*555
|
359*10*591
|
|

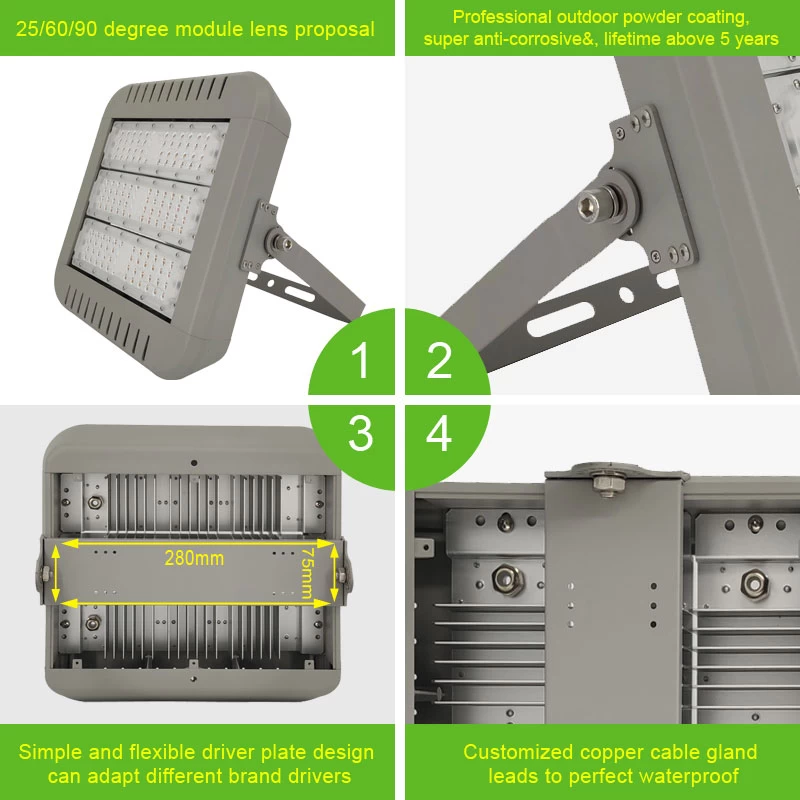

Driver box dimenison(mm):
|
280*75
|
|
PCB Area(mm):
|
232*44*1.5
|
|
Net Weight(kg):
|
2.1
|
2.67
|
3.25
|
3.83
|
5
|
5.5
|
|
Color:
|
Black
|
|
Certificate:
|
IP65,Rohs,IK09,patent,ISO9001,TUV,BV
|
|
Warranty:
|
3years
|
