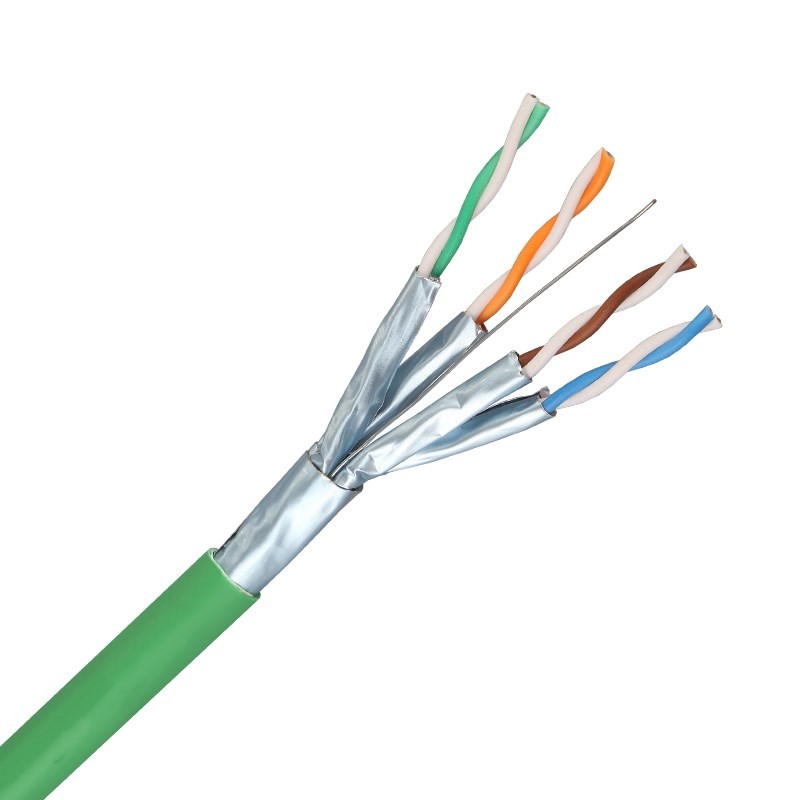

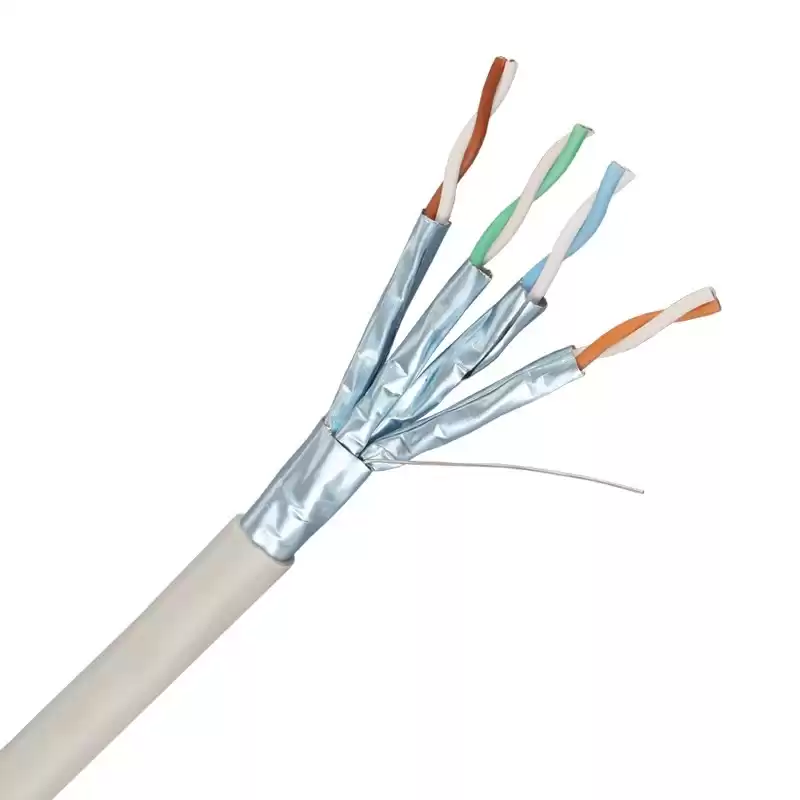

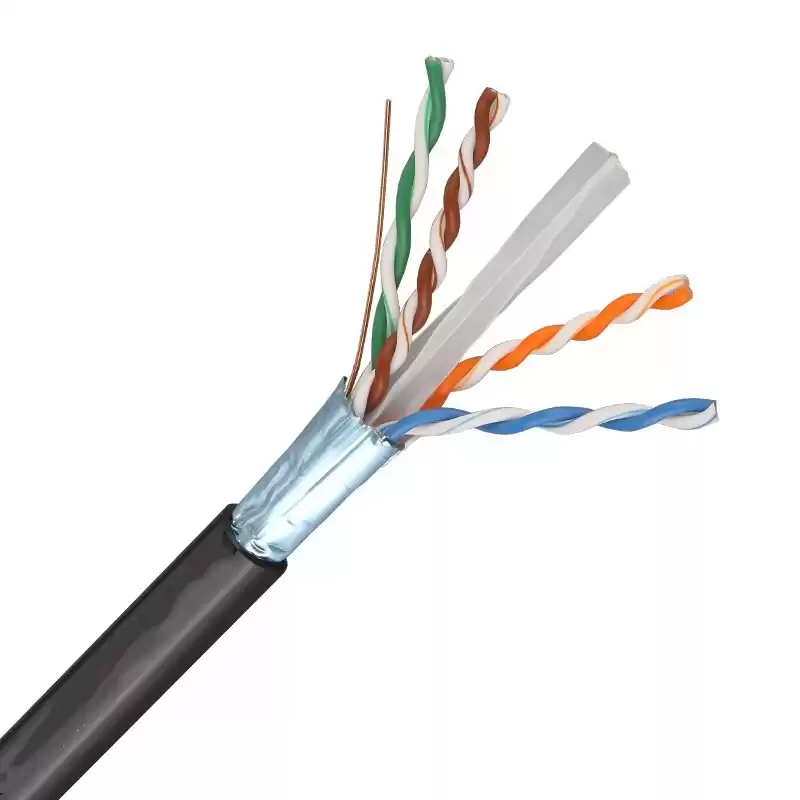

FTP Cat5 Cat6 Cat7 Lan Cable
We have a complete strict quality control system,from
raw material,production process,inspection,packing,etc. to ensure the top quality
of the finished products reach 100% qualification before exporting . We
never let any defect out of factory.
Description:
CCA or 24AWG Soft Plain Copper;
Eco-friendly,pollution-free and new materials selected.Promise new
material only;
Solid HDPE insulation;
High-temperature resistance,long working life.
Applications:
Computer Network Cabling System;
Broadband Network
Communication;
Ethernet Network;
Audio and Data Transmission
System.
Electronic
Characteristics
Impedance:
100± 15(ohms).
Rated
Temperture: 75º C
DC
Resistance unbalance(%): Max2.5
DC
Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground
Capacitance Unbalance: 330(Pf/100m)
Transfer
Impendance: Max 10 mohms/m@100MHz.
Installation
Resistance: >5000MΩ *KM
Dielectric
strength: DC 2500V 2S
Transmission
Performance：
|
Frequency
MHz
|
Attenuation
Max
dB/100m
|
NEXT
Min.
dB/100m
|
PSNEXT
Min.
dB/100m
|
ELFEXT
Min.
db/100m
|
RL
Min.
dB
|
PHASE
VELOCITY
MIN(M/S)
|
PHASE
DELAY
MAX(ns/100m)
|
|
1
|
1.9
|
74
|
72
|
68
|
20
|
0.585c
|
570
|
|
4
|
3.7
|
65
|
63
|
56
|
23
|
---
|
552
|
|
10
|
5.9
|
59
|
57
|
48
|
25
|
0.611c
|
545
|
|
16
|
7.5
|
56
|
54
|
44
|
25
|
---
|
543
|
|
20
|
8.4
|
55
|
53
|
42
|
25
|
---
|
542
|
|
31.25
|
10.6
|
52
|
50
|
38
|
23.6
|
---
|
540
|
|
62.5
|
15.4
|
47
|
45
|
32
|
21.5
|
---
|
539
|
|
100
|
19.8
|
44
|
42
|
28
|
20.1
|
0.620c
|
538
|
|
200
|
29.0
|
40
|
38
|
22
|
18
|
|
537
|
|
250
|
32.8
|
38
|
36
|
20
|
17.3
|
0.622c
|
536
|
