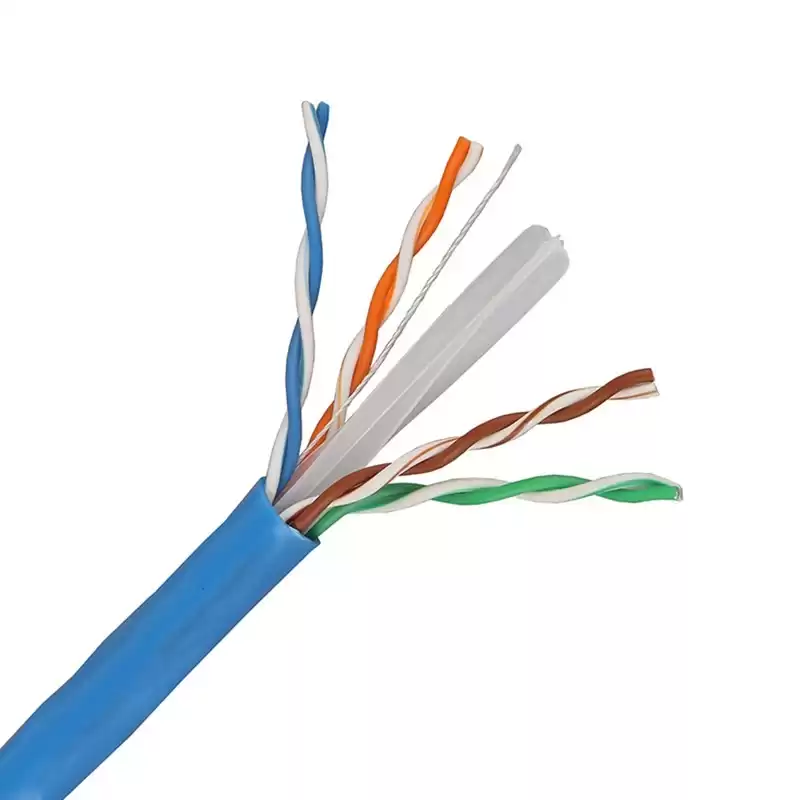

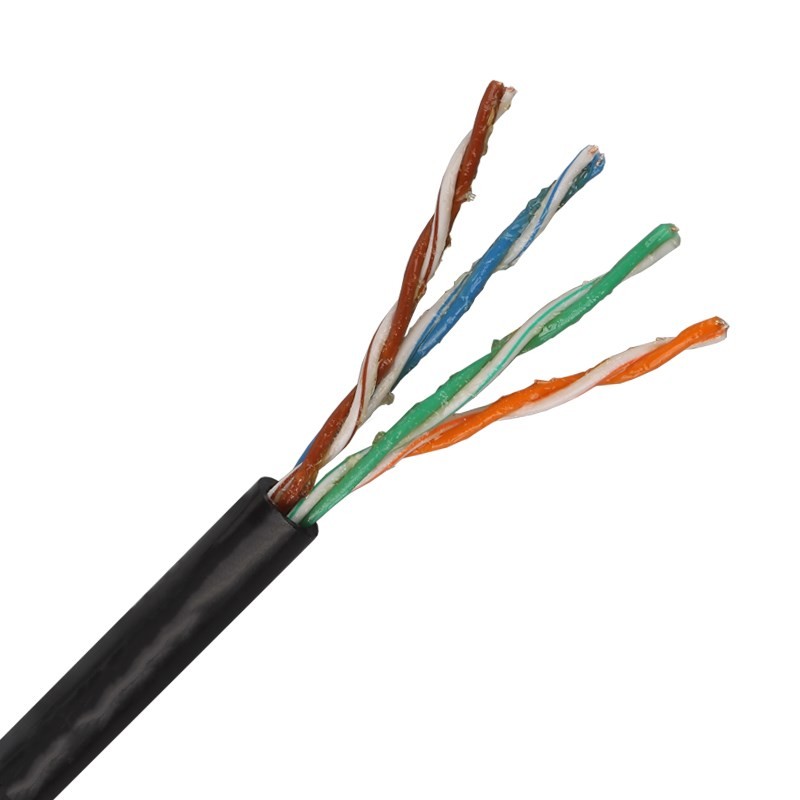

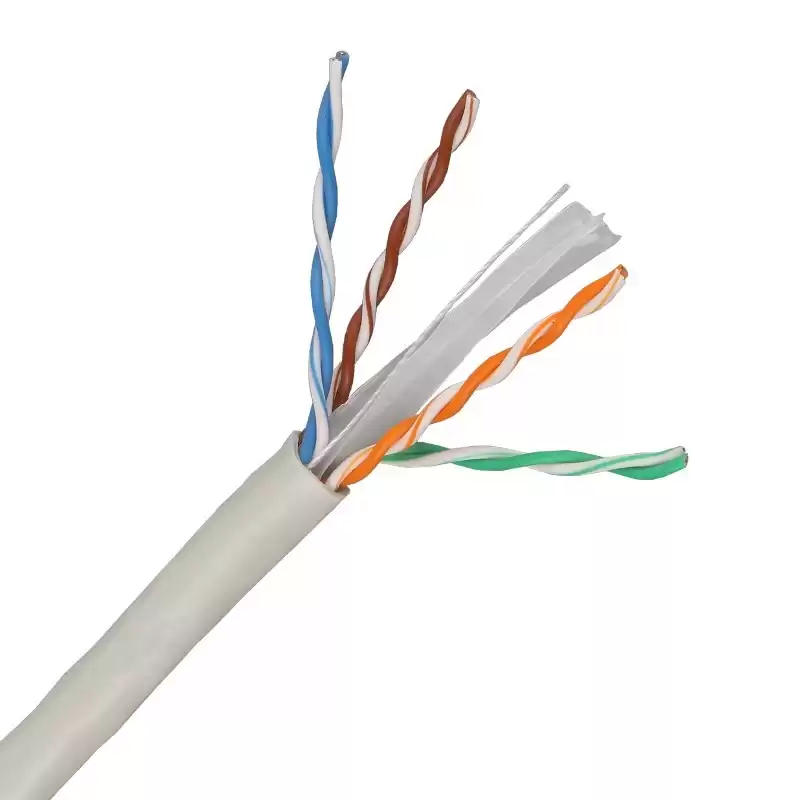

UTP Cat5 Cat6 Cat7 Lan Cable
We have a complete strict quality control system,from
raw material,production process,inspection,packing,etc. to ensure the top quality
of the finished products reach 100% qualification before exporting . We
never let any defect out of factory.

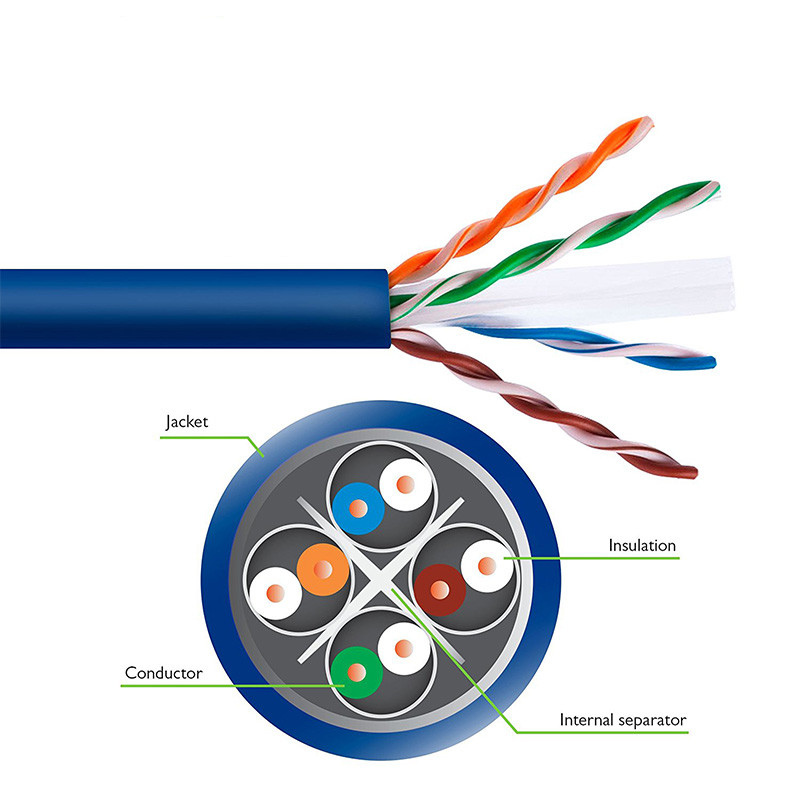

Description:

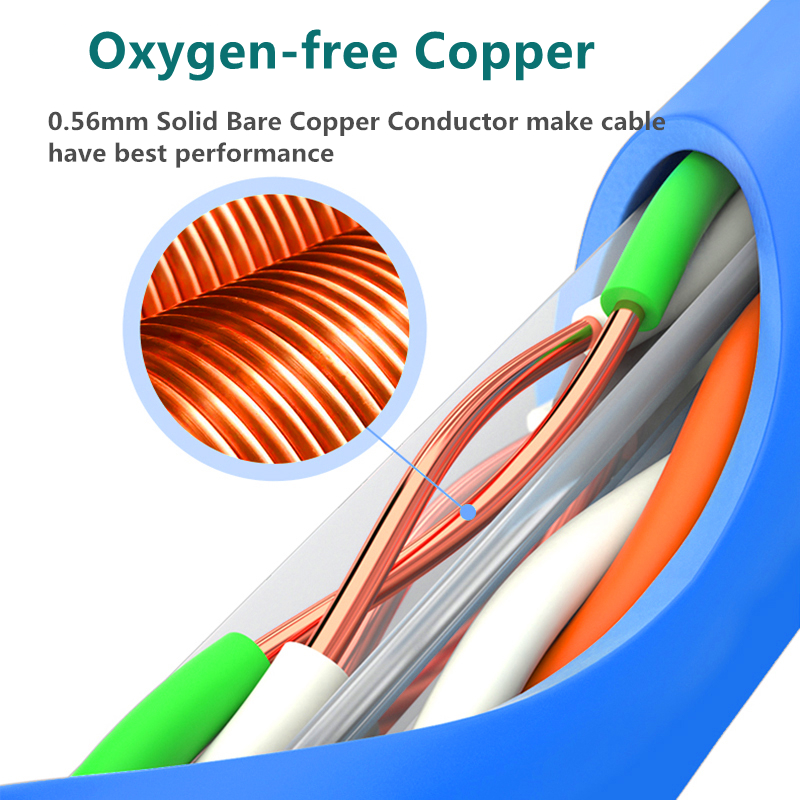

CCA or 24AWG Soft Plain Copper;
Eco-friendly,pollution-free and new materials selected.Promise new
material only;

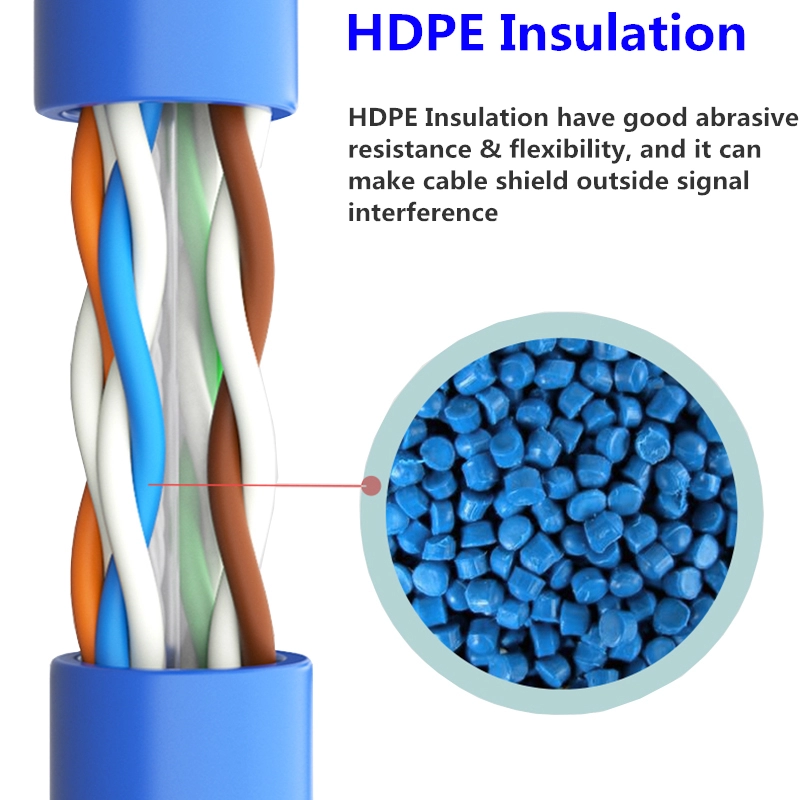

Solid HDPE insulation;
High-temperature resistance,long working life.
Applications:
Computer Network Cabling System;
Broadband Network
Communication;
Ethernet Network;
Audio and Data Transmission
System.
Electronic
Characteristics
Impedance:
100± 15(ohms).
Rated
Temperture: 75º C
DC
Resistance unbalance(%): Max2.5
DC
Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground
Capacitance Unbalance: 330(Pf/100m)
Transfer
Impendance: Max 10 mohms/m@100MHz.
Installation
Resistance: >5000MΩ *KM
Dielectric
strength: DC 2500V 2S
Transmission
Performance：
|
Frequency
|
Impedance
|
SRL
|
Attenuation
|
Next
|
Next
|
Elfext
|
Elfext
|
Nominal
|
|
Mhz
|
ohm
|
dB
|
dB/100m
|
Worst Pair
|
Power Sum
|
Worst Pair
|
Power Sum
|
Velocity
|
|
dB
|
Propagation
|
|
0.772
|
100±15
|
19.4
|
18
|
67
|
64
|
66
|
63
|
0.65
|
|
1
|
20
|
2
|
65.3
|
62.3
|
63.8
|
60.8
|
|
4
|
23
|
4.1
|
56.3
|
53.3
|
51.7
|
48.7
|
|
8
|
24.5
|
5.8
|
51.8
|
48.8
|
45.7
|
42.7
|
|
10
|
25
|
6.5
|
50.3
|
47.3
|
43.8
|
40.8
|
|
16
|
25
|
8.2
|
47.3
|
44.3
|
39.7
|
36.7
|
|
20
|
25
|
9.3
|
45.8
|
42.8
|
37.7
|
34.7
|
|
25
|
24.3
|
10.4
|
44.3
|
41.3
|
35.8
|
32.8
|
|
31.25
|
23.6
|
11.7
|
42.9
|
39.9
|
33.9
|
30.9
|
|
62.5
|
21.5
|
17
|
38.4
|
35.4
|
27.8
|
24.8
|
|
100
|
20.1
|
22
|
35.3
|
32.3
|
23.8
|
20.8
|
