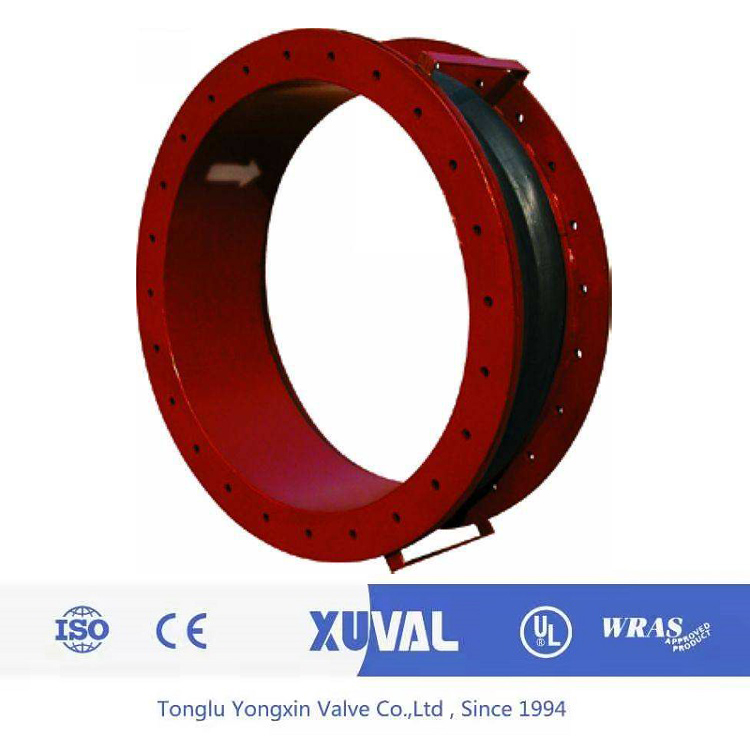

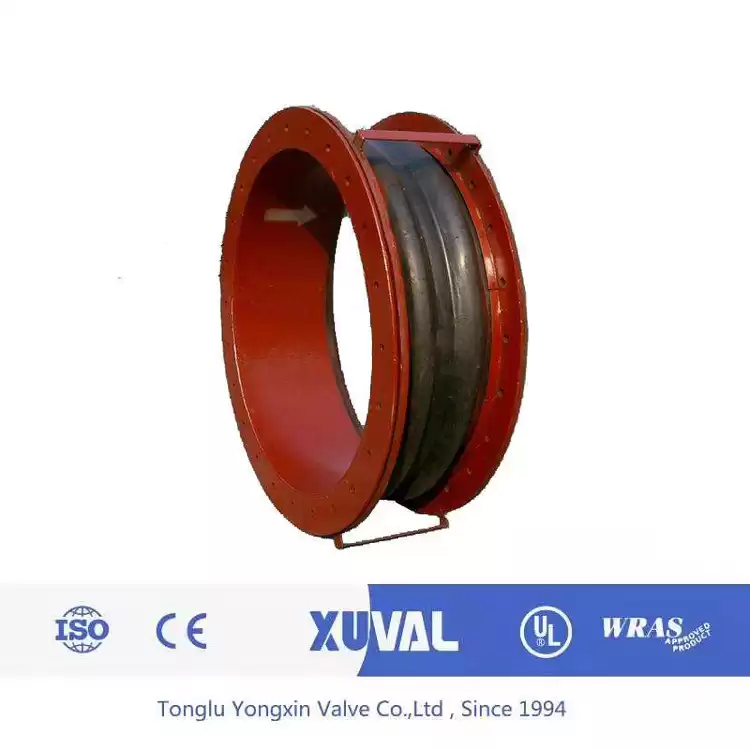

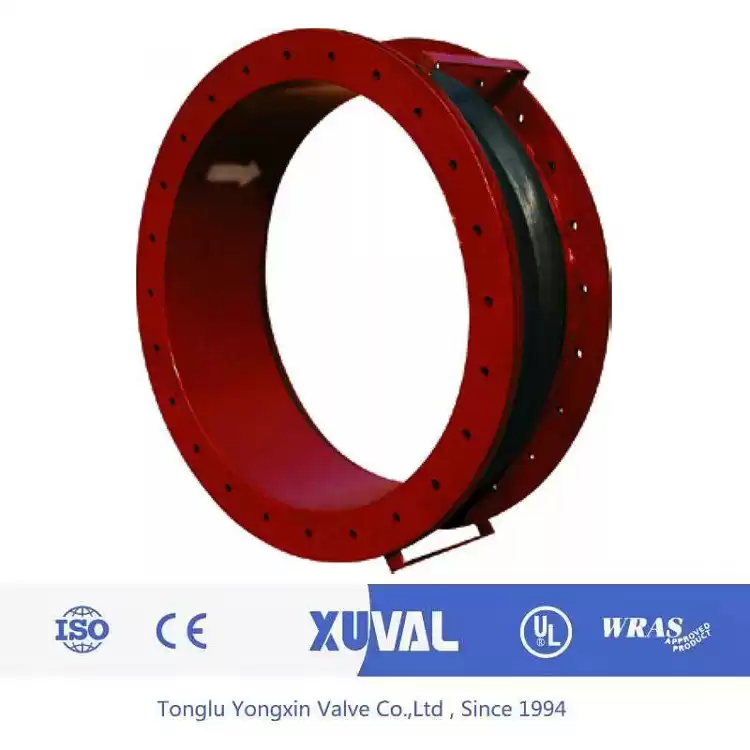

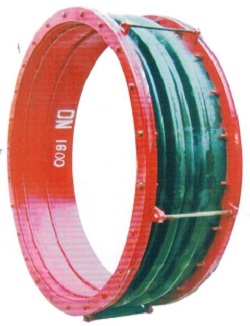

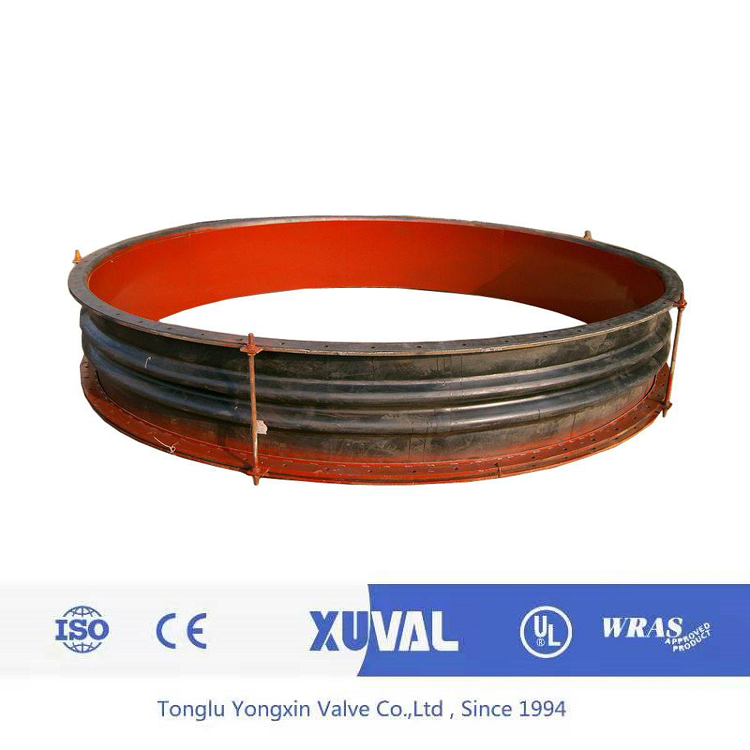

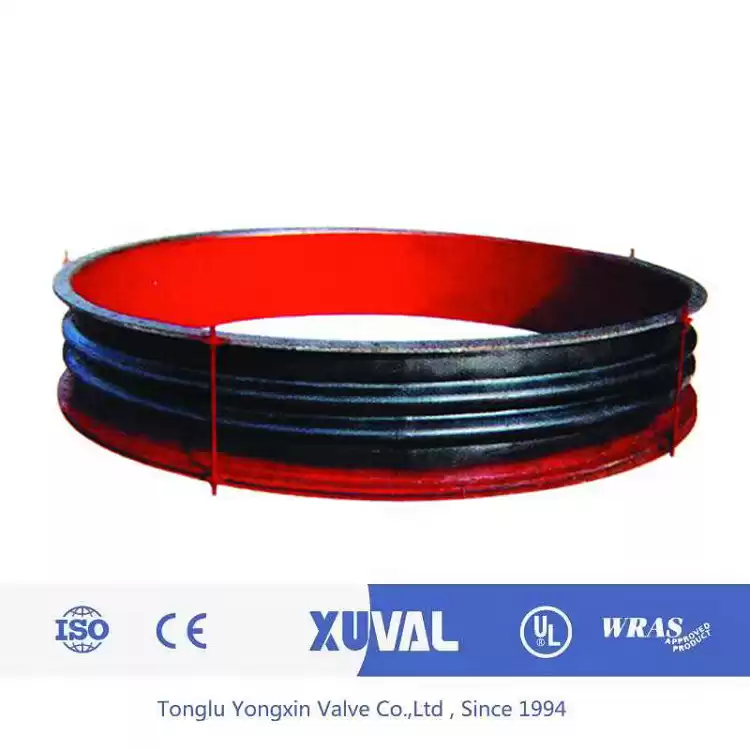

FUB FVB Air Duct Fabric Compensator round

Duct rubber compensator is divided into FDZ, FVB, FUB, XB four kinds of models, from rubber and rubber fabric composite material, steel flange, socket, thermal insulation materials, mainly used for a variety of flexible connection between fan, air duct, its function is sealing, shock absorption, noise reduction, medium resistance, displacement and makes the pipes easier to install, is an extremely ideal environmental protection field shock absorption, noise reduction, the best accessories and smoke prevention and dust control.



FUB FVB Air Duct Fabric Compensator round

Duct rubber compensator is divided into FDZ, FVB, FUB, XB four kinds of models,from rubber and rubber fabric composite material, steel flange, socket, thermal insulation materials, mainly used for a variety of flexible connection between fan, air duct, its function is sealing, shock absorption, noise reduction, medium resistance, displacement and makes the pipes easier to install, is an extremely ideal environmental protection field shock absorption, noise reduction, the best accessories and smoke prevention and dust control.


Basic introduction:

1. Rubber and fiber fabrics have good reducibility of repeated displacement (change), which can provide large multi-dimensional directional compensation within a small size range, and can better eliminate the multi-directional errors caused by various pipe installation and connection.

2. rubber and fiber fabric has superior sound absorption and isolation function, can effectively reduce and eliminate the transmission of sound and vibration of boiler, fan and other systems.

3. rubber and fiber weaving weak transmission loss, reduce the design process, no need to add other auxiliary facilities.

4, rubber and fiber woven and thermal insulation materials with high heat resistance and corrosion resistance, never rust, reduce maintenance costs.

5. Rubber and fiber fabric have excellent air tightness and flexibility, which can ensure no leakage of the conveying medium and restore the original state after repeated displacement.


Main data:

Performance FVB FUB
Compensation length ±100mm ±100mm
Working pressure ≤4500pa ≤4500pa
Temperature range -40℃-30℃ -40℃-300℃
Installation length 300-450mm 300-450mm
Variation rate of pull ≤15%
≤15%
Distance between brackets on the both ends
≤50m
Distance between flexible brackets on the ends
2-4m
Intensity ≥12Mpa ≥12Mpa
Compensation length ≥300%
≥300%
Permanent variation ≤25%
≤25%
Rigidity 58±3° 58±3°
Aging in heated air 72℃X72h 70℃X72h
Variation rate of pull ≥20%
≥20%


Air Duct Fabric Compensator round


FUB Connecting data:

Model

(mm)

Outer diameter

D

D1 D2 D3

Flange thickness

(mm)

Quantity of Bolt

nxMd

Weight

(Kg)

FUB800 812 950 1000 850 8 24 X M22 184.6
FUB900
912 1050 1100 950 203.6
FUB1000
1012 1150 1200 1052 10 30 X M22 221.9
FUB1100
1112 1250 1300 1152 240.7
FUB1200
1212 1350 1400 1252 259.5
FUB1300
1312 1450 1500 1352 278.3
FUB1400
1412 1550 1600 1452 357.3
FUB1500
1512 1650 1700 1552 36 X M22 391.2
FUB1600
1614 1750 1800 1654 10 426.3
FUB1700
1714 1850 1900 1754 449.7
FUB1800
1814 1950 2000 1854 44 X M22 481.0
FUB1900
1914 2050 2120 1954 533.4
FUB2000
2016 2170 2240 2056 619.9
FUB2100
2116 2270 2340 2156 12 54 X M30 753.3
FUB2200
2216 2370 2440 2256 785.3
FUB2300
2316 2470 2540 2356 817.2
FUB2400
2416 2570 2640 2456 800.2
FUB2500
2516 2670 2740 2556 881.2
FUB2600
2616 2770 2840 2656 14
64 X M30 913.2
FUB2800
2816 2970 3040 2856 986.5
FUB3000
3016 3170 3240 3056 1050.5
FUB3200
3216 3370 3440 3256 1114.6

FVB Connecting data:

Model

(mm)

Outer diameter

D

D1 D2 D3 b

Quantity of Bolt

nxMd

Ref.weight

(Kg)

FVB500 529 600 640 469 8
16 X M16 89.8
FVB600
630 705 755 570 16 X M16 114.6
FVB700
720 810 860 660 18 X M16
134.8
FVB800
820 920 975 760 18 X M20
192.0
FVB900
920 1020 1075 860 20 X M20
213.8
FVB1000
1020 1120 1175 960 24 X M22
241.6
FVB1100
1120 1220 1275 1060 10
24 X M22
263.0
FVB1200
1220 1320 1375 1160 30 X M22
312.6
FVB1300
1320 1420 1475 1260 30 X M22
335.0
FVB1400
1420 1520 1575 1360 36 X M22
369.6
FVB1500
1520 1630 1685 1440 36 X M22
349.4
FVB1600
1620 1730 1785 1540 36 X M22
477.5
FVB1700
1720 1830 1885 1640 44 X M22
515.9
FVB1800
1820 1930 1985 1740 44 X M22
536.0
FVB1900
1920 2030 2085 1840 44 X M22
565.2
FVB2000
2020 2130 2185 1940 12
44 X M27
725.2
FVB2200
2220 2340 2410 2140 50 X M27
881.8
FVB2400
2420 2540 2610 2340 14
54 X M27
953.0
FVB2500
2520 2640 2710 2440 56 X M30
1057.5
FVB2600
2620 2760 2910 2540 58 X M30
1098.4
FVB2800
2820 2960 3030 2740 60 X M30
1260.9
FVB3000
3030 3160 3230 2940 64 X M30
1347.8
FVB3200
3220 3360 3430 3140 72 X M30
1441.5
FVB3400
3420 3560 3630 3340 74 X M30
1523.0
FVB3600
3620 3760 3840 3540 16
78 X M30
1825.1
FVB3800
3820 3960 4040 3740 80 X M30
1924.1
FVB4000
4020 4160 4240 3940 84 X M30
2023.0
Note:The big DN size Air Duct Rubber Compensator can be produced and delivered in accordance with requirements of users.


Packing & Delivery :

Packing Details : all by seaworthy plywood case and packed strongly by  packing belt as below

Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough

subject to the order quantity. But anyway,normally, we are able to make sure the delivery will not exceed 45 days.
