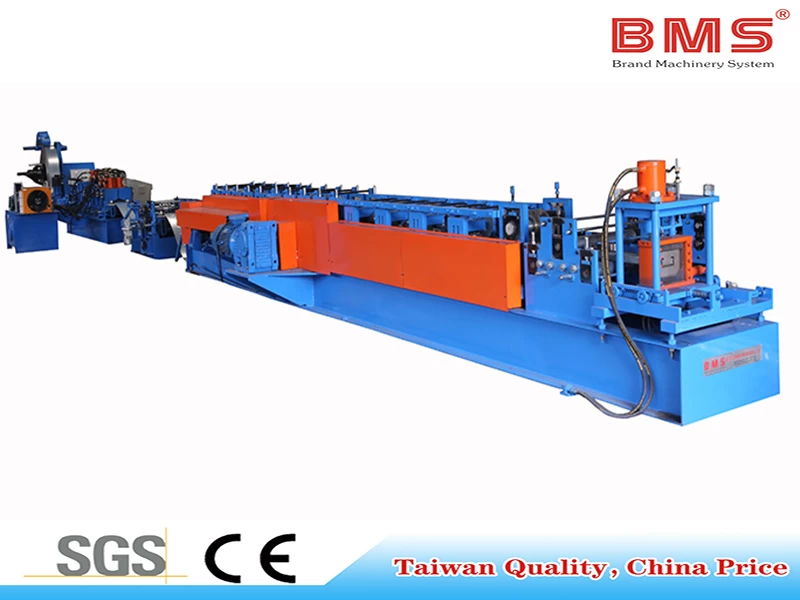

Full AUTO C Purlin Machine For Solar Industry

Full AUTO C Purlin Machine no need change rollers and spacers.




Full AUTO Change C Purlin Roll Forming Machine



Please Click Here To View The Video

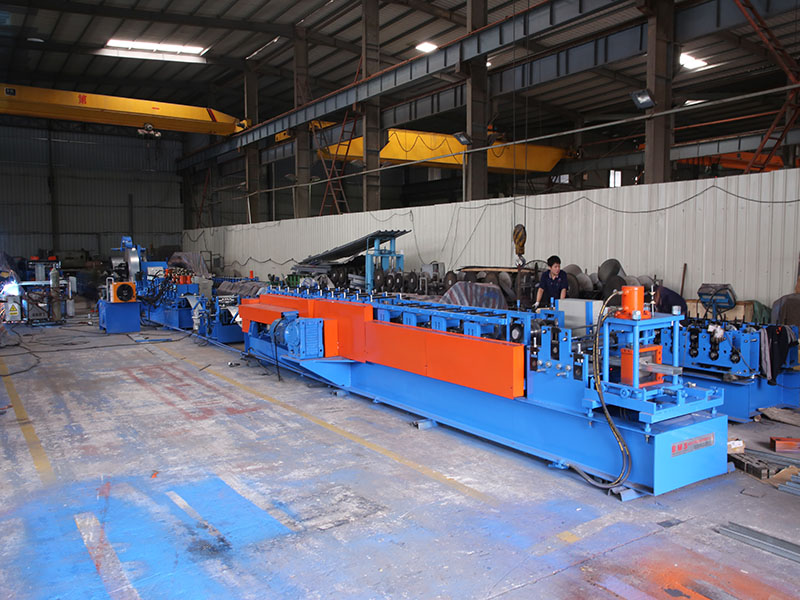

C Purlin Roll Forming Machine

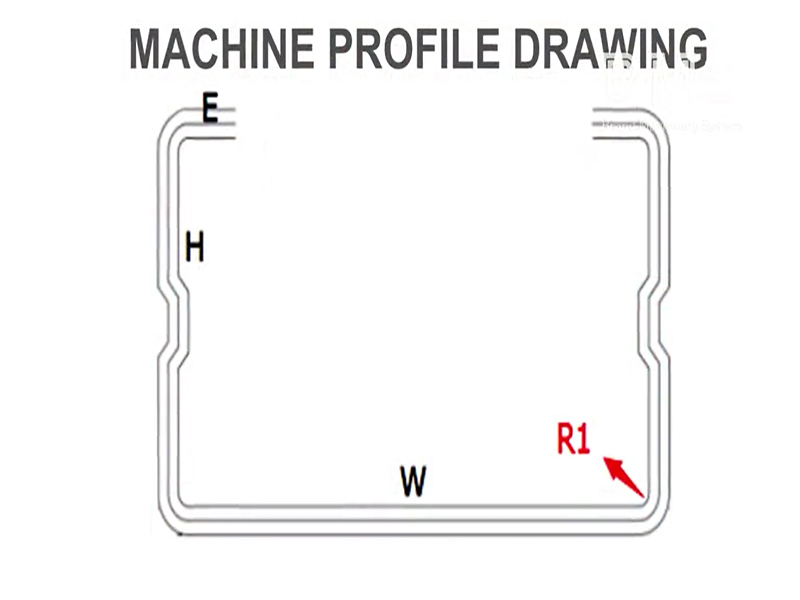

Profile



Lip(E):10~25mm
Height(H):C:25~80±0.5mm
Web(W):C50~200±0.5mm


Material

Material Thickness(t):2.0-4.0mm
Applicable material:Galvanized Steel(GI),Cold roll steel(CRC
)

With yield strength Q235-550Mpa


Work Follow

Decoiler→Feeding and Leveling Device→Hydrualic Punching& Pre-Cutting Device→Rolling Forming System→Hydraulic Post Cutting→Exit Rack


auto C purlin roll forming machine


Machine Components

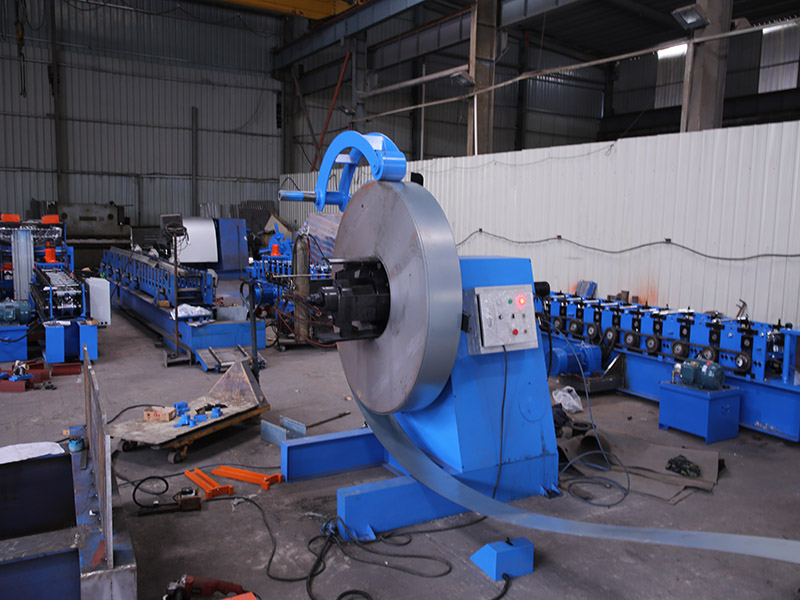

1) 5 Ton Hydraulic Decoiler: one set


Hydraulic control steel coil inner bore shrinkage and stop
Max. feeding width:600mm
Coil ID Range:508±30mm,Outside Diameter:1500mm
Max capacity:5 ton, motor:3KW, frequency speed control
Oil pump motor:3KW,With Press Arm
Add automatic feeding power and self-stop device

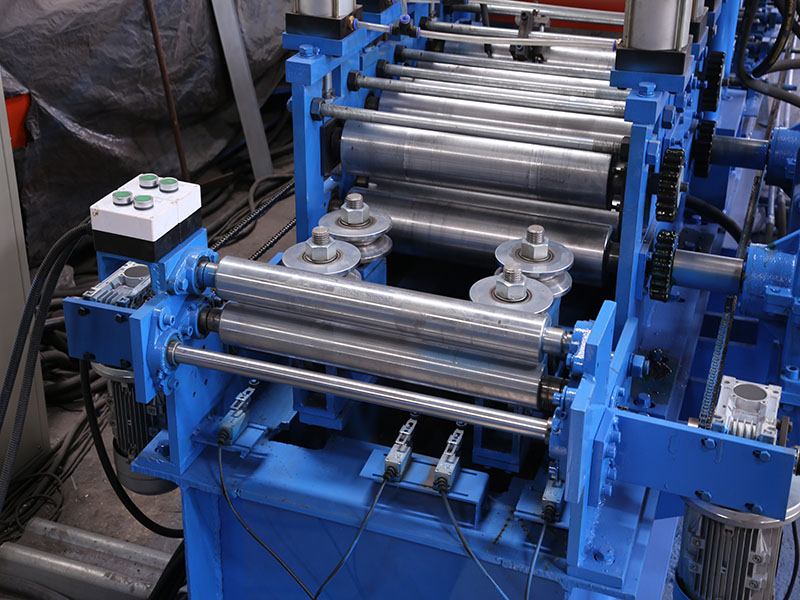

2) Feeding And Leveling Device



Up Three down Four totally seven shafts leveling device
With feeding material guide, body frame made from H450 type steel by welding
Side wall thickness: Q235 t30mm
Shafts manufactured from 45# steel,
Diameter=φ90mm,Tone plated with hard chrome Coated,precision machined


Use Two electric motors to AUTO adjust the material feeding width
C Purlin Roll Forming Machine

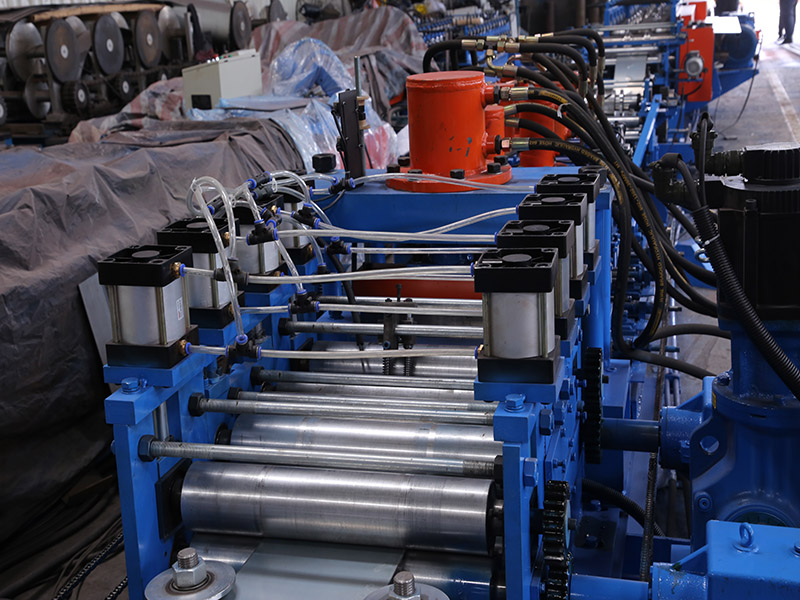

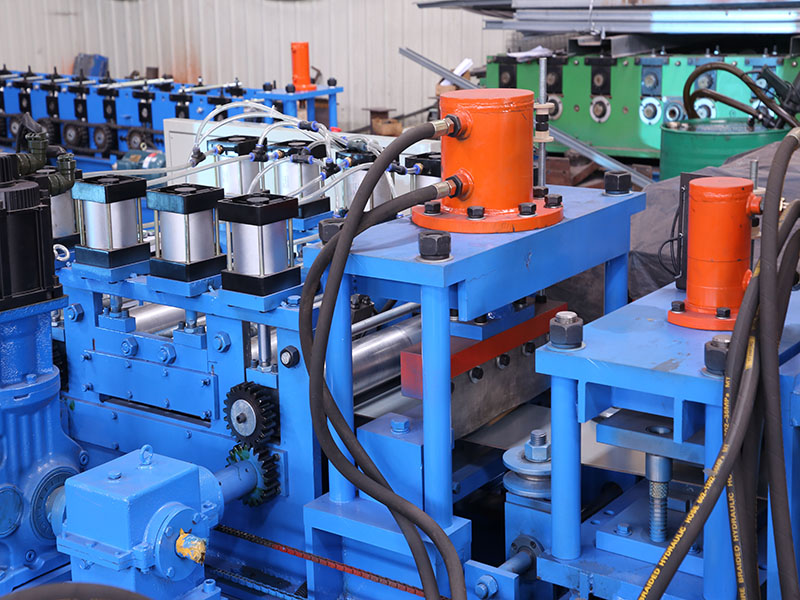

Use Eight Air Devices to AUTO change the distance of up and down shafts

C Purlin Roll Forming Machine

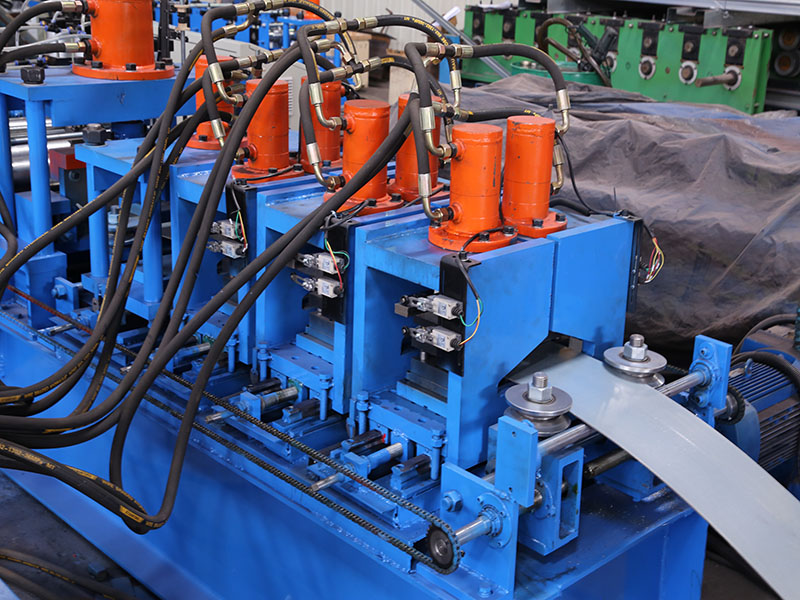

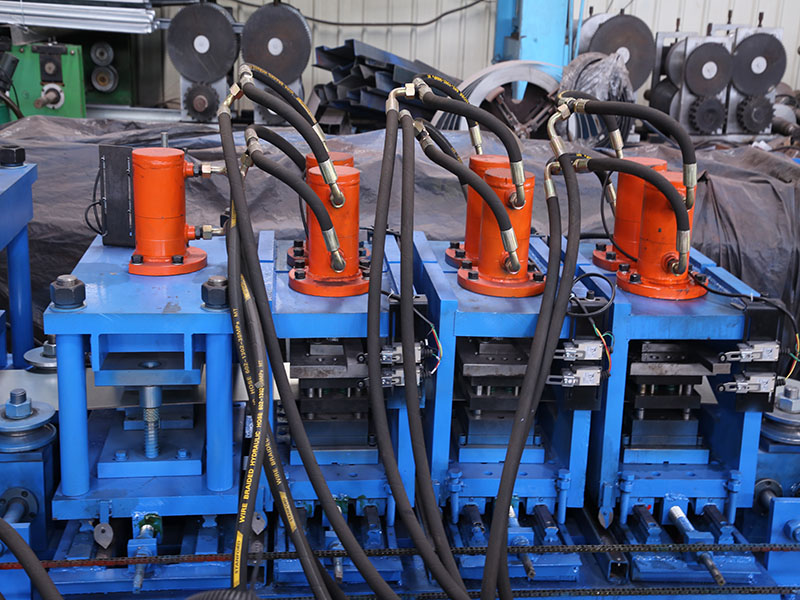

3) Hydraulic Pre-Cutting&Punching Device


Pre-punching and pre-cutting, use the same hydraulic system
Hydraulic motor:22KW, Hydraulic pressure range:0-14Mpa
Punching and Cutting tool material:mold steel Cr12MoV(=D2 steel, with one million times punching/cutting life), Heat treatment to HRC58-62 degree
4-cylinders hole punching system for punching both on web and


C Purlin Roll Forming Machine



C Purlin Roll Forming Machine



C Purlin Roll Forming Machine

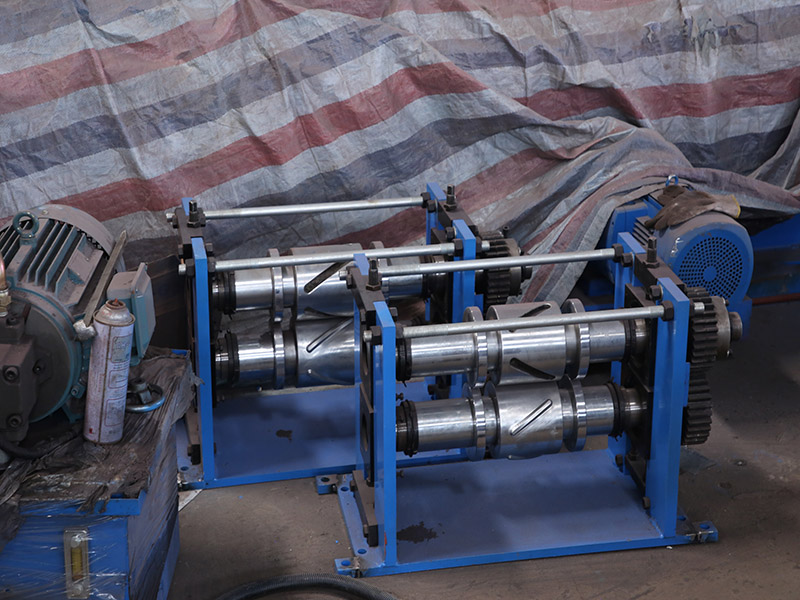

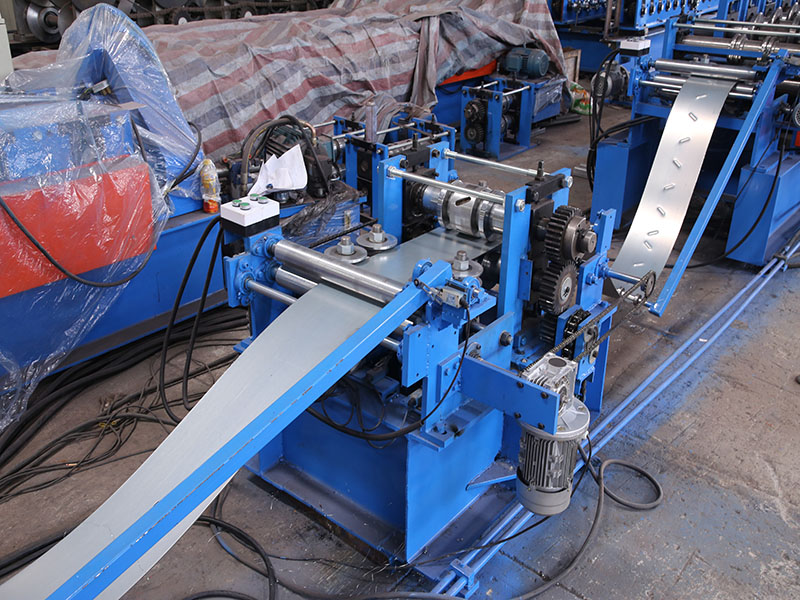

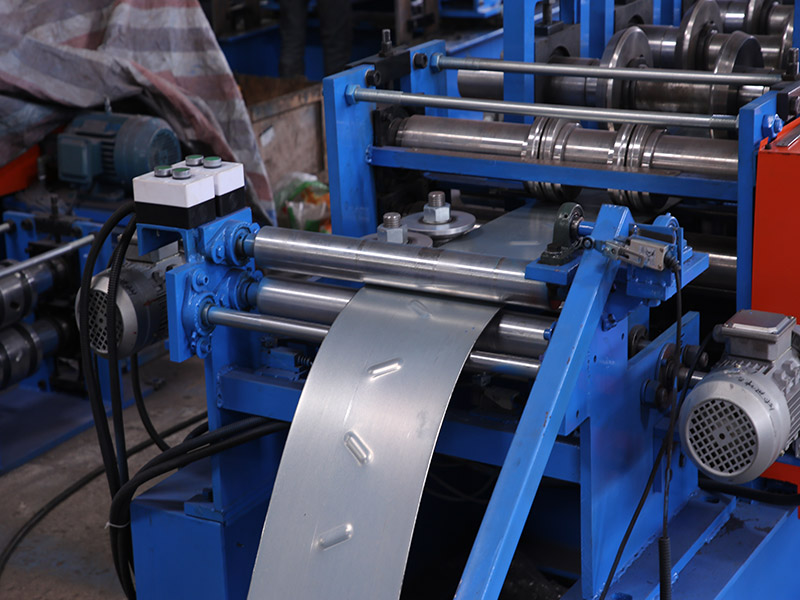

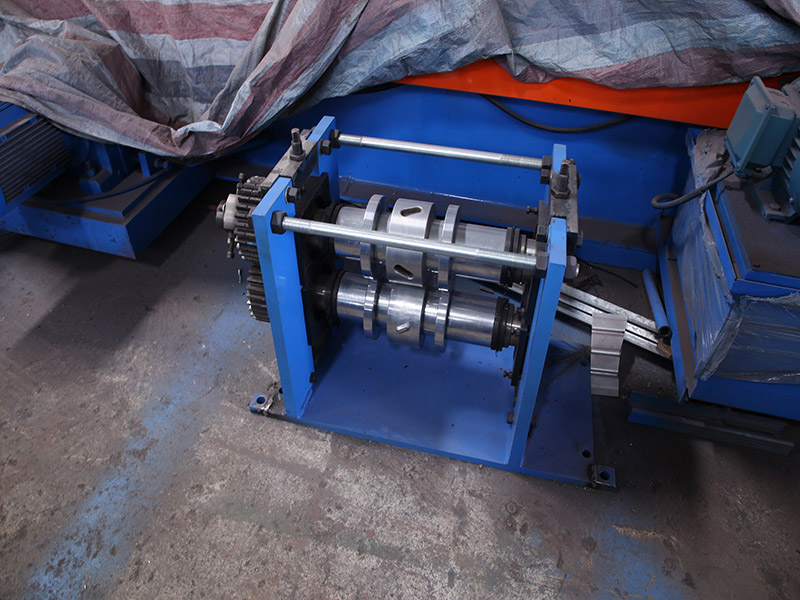

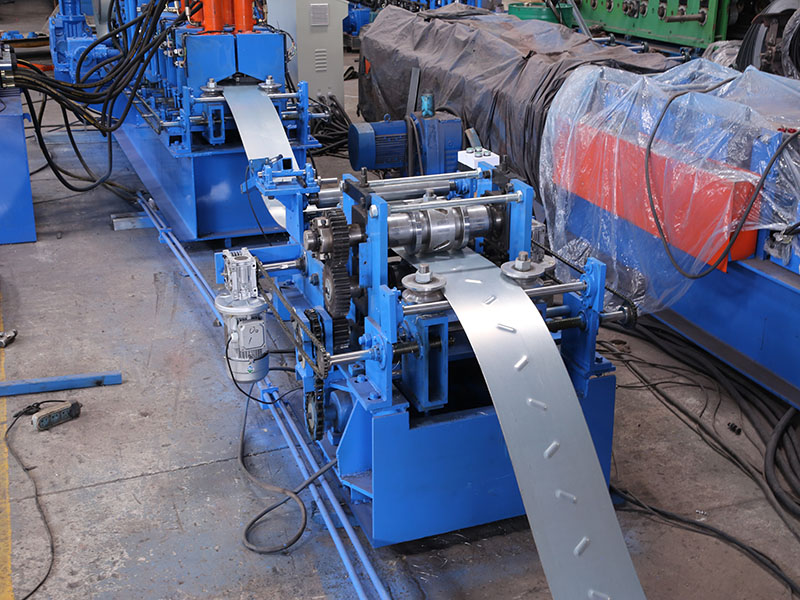

4) Embossing

Use Two electric motors to AUTO adjust the material feeding width

C Purlin Roll Forming Machine




C Purlin Roll Forming Machine




C Purlin Roll Forming Machine




C Purlin Roll Forming Machine

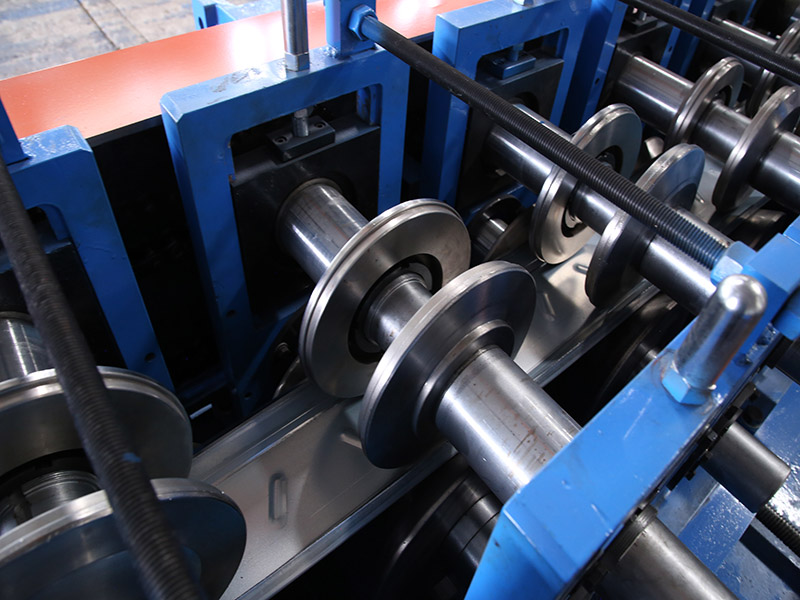

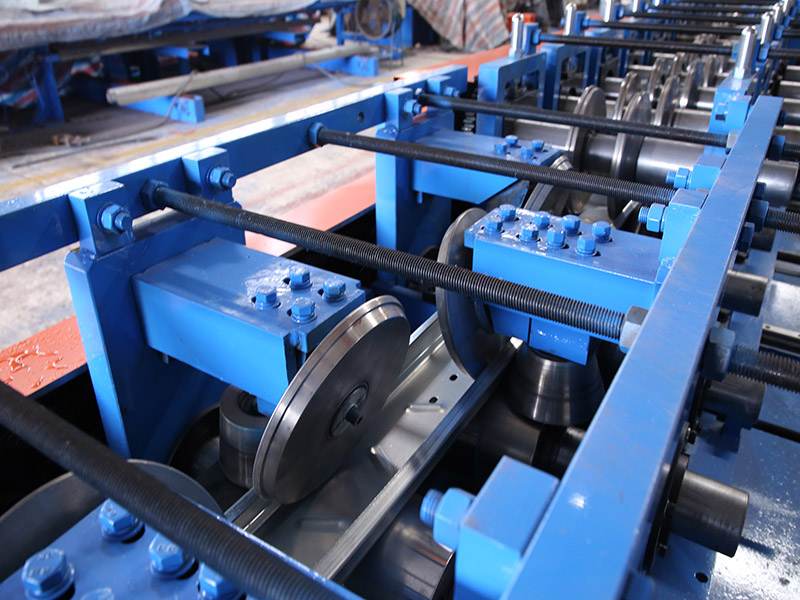

5) Main Machine

Body frame made from H450 type steel by welding
Side wall thickness: Q235 t30mm
Rollers manufactured from Cr12 Steel,CNC lathes,Heat Treatment,HRC58-62
Shafts Diameter=ф95,precision machined
Gear/Sprocket driving,about 22-step to form
Main Motor(Polaroid brand)=30KW, Frequency speed control


Use Two electric motors to AUTO adjust the material feeding width

C Purlin Roll Forming Machine

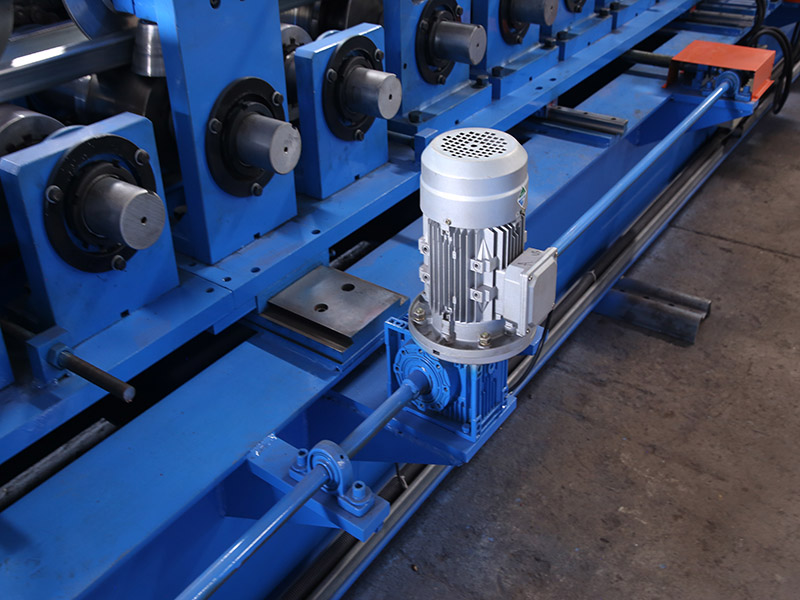

Use Two electric motors to AUTO change size

C Purlin Roll Forming Machine



Arch Structure

C Purlin Roll Forming Machine




C Purlin Roll Forming Machine




C Purlin Roll Forming Machine

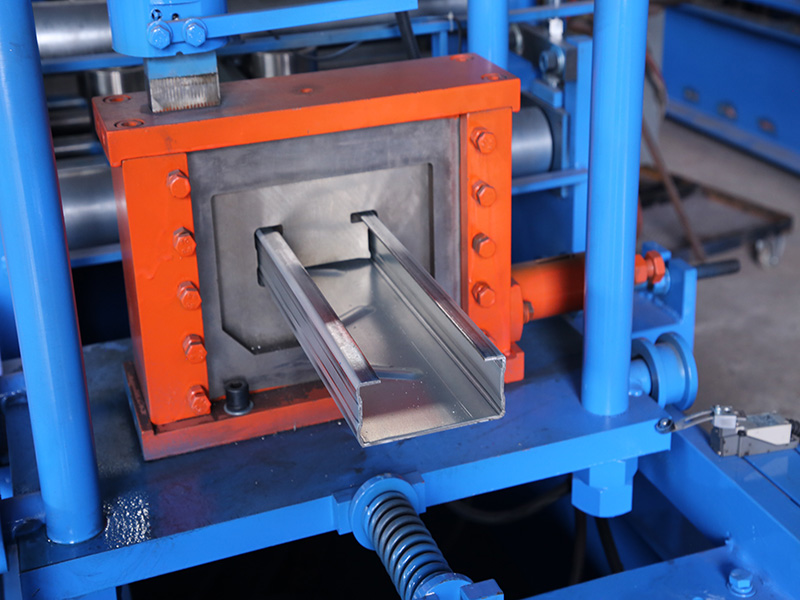

5) Post Hydraulic Cutting Device

Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor:22KW,Cutting pressure: 0-25Mpa(250Bar)
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree


C Purlin Roll Forming Machine




6)PLC Control System

Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc


C Purlin Roll Forming Machine

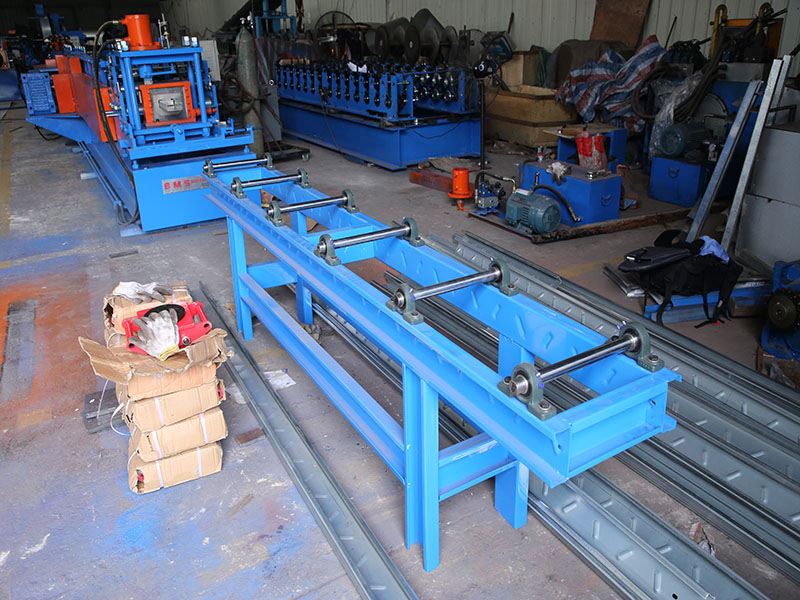

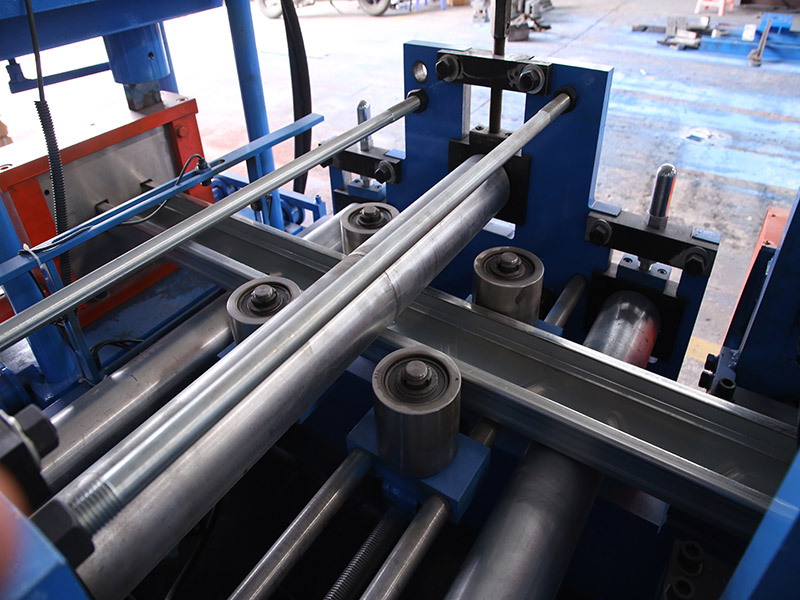

7)Exit Rack

Un-powered, One unit,with rollers on it for easy movement.


C Purlin Roll Forming Machine

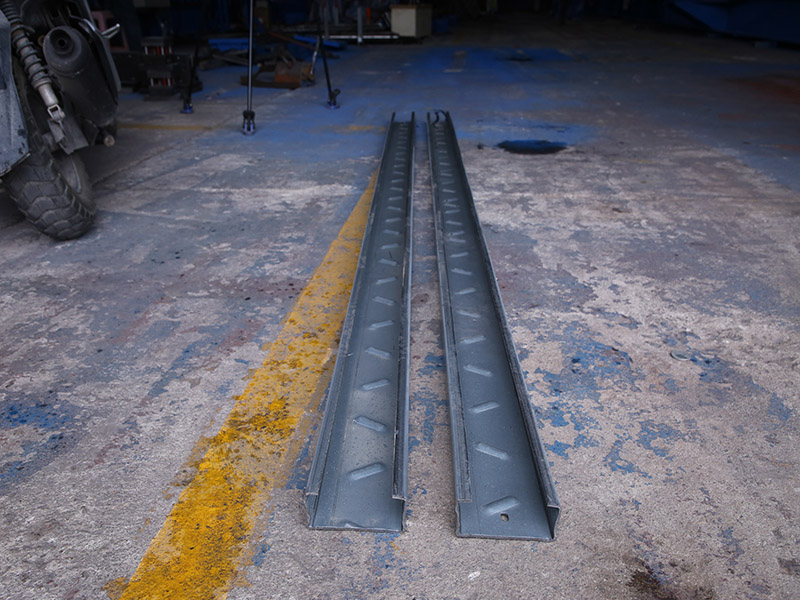

8)Product Show


C Purlin Roll Forming Machine



Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.


Packing Style



After-Sale Service

1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.


Terms Of Trade

1.Minimum order quantity (MOQ): 1 Set.
2.Delivery time: about 60 workdays.
3.Port of loading: port of Xiamen.
4.Type of payment: by T/T or by L/C.
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc.
