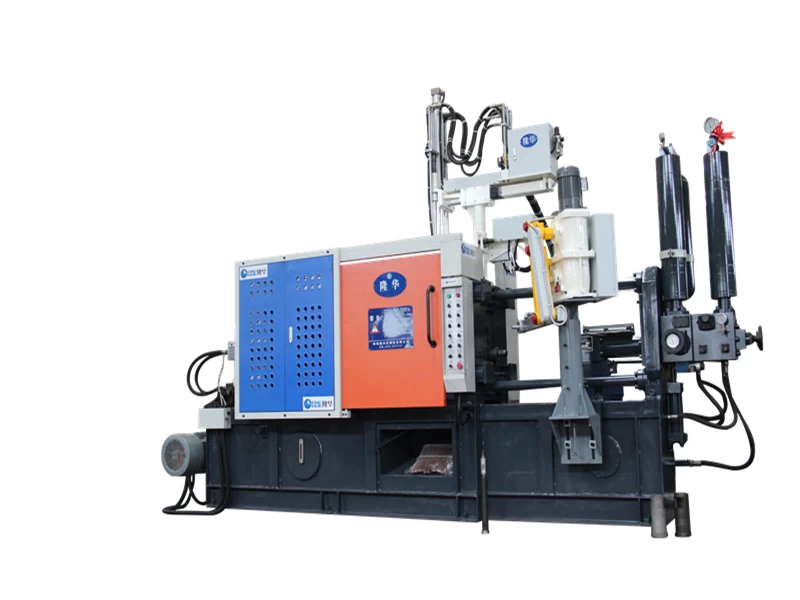

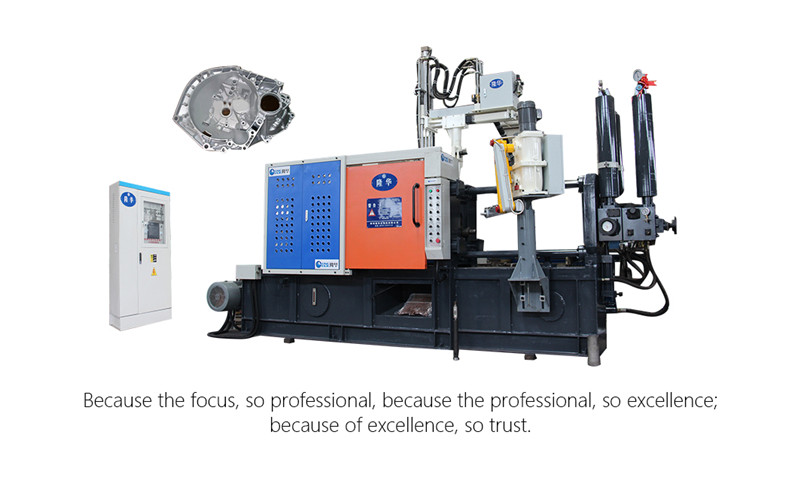

Full Automatic Intelligent Die Casting Machine With Lower Price(LH-200T )

Longhua die casting machine has optimized design of high strength mold opening and locking structure, impact resistance, long life.




Product Item


Full automatic Intelligent die casting machine with lower price(LH-200T )



Product Description


The die casting machine adopts a new type of integral template with good rigidity.

Using high quality ductile iron, the rigidity and wear resistance are significantly improved;

Using the finite element software to optimize the design, the stress distribution is reasonable and the casting quality is improved effectively.


energy consumption of die casting machinebrass alloy die casting machine

LH SERIES OF STANDARD PARAMETER TABLE (LH-200T)

ITEMS

UNIT

SPECIFICATION

HYDRAULIC WORKING PRESSURE

MPA

14

CLAMPING FORCE

KN

2000

SPACE BETWEEN TIE BARS

MM

480*480

TIE BAR DIAMETER

MM

85

DIE OPENING STROKE

MM

380

INJECTION FORCE(INTENSIFY)

KN

270

PLUNGER LAUNCH DISTANCE

MM

135

INJECTION POSITION

MM

0  --  140

PLUNGER DIAMETER

MM

50----70

INJECTION STROKE

MM

350

CASTING PRESSURE (INTENSIFY)

MPA

112/78/57

CASTING FIANGE PROTRUSION

MM

10

CASTING FIANGE DIAMETER

MM

110

MAX CASTING AREA UNDER 40MPA

CM2

450

LNJECTION WEIGHT(AL)

KG

2.4

DIE HEIGHT(MIN--MAX)

MM

200550

EJECTOR FORCE

KN

110

EJECTOR STROKE

MM

80

MOTOR CAPACITY

KW

15

MACHINE DIMENSIONS  (L*W*H)

M

5.32*1.5*2.35

REFERENTIAL MACHINE WEIGHT FOR UPLIFTING

T

7

OIL TANK CAPACITY

L

600

PSWE RESERVE THE RIGHT TO MAKE ANY TECHNICAL IMPROVEMENT WITHOUT FURTHER NOTICE



The die casting machine needs to use electric furnace or natural gas furnace to melt metal liquid.

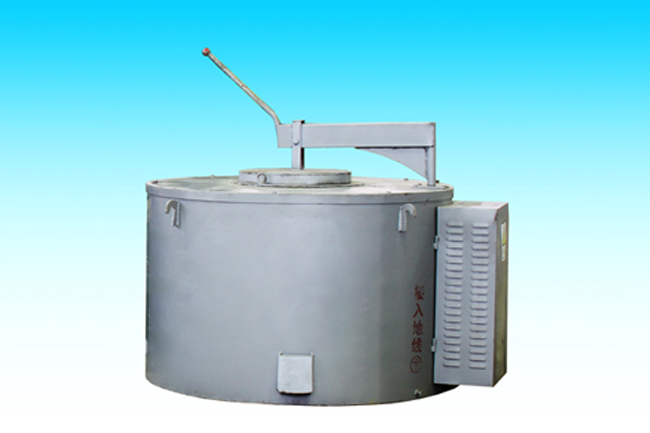

Longhua electric furnace features:

1,The world’s most advanced SCR controlled energy saving system.

2,The bottom of the furnace is equipped with the safety door leakage aluminum indication alarm.

3,Unique patented resistance wire,with high heating,low power consumption and long service life.

4,Reliable user-friendly circuit design ,low failure rate,simple operation.

5,Using German technology,saving more than 30% of the traditional electric furnace.

6,Meet the requirements of energy conservation and environmental protection.









Company Information

Longhua die casting machine co., LTD is an experienced die casting machine manufacturer.

We have 37 years experience in "LONGHUA” brand die casting machine production and have many engineers who are responsible for the technical improvement in order to provide better machines for our customers.

Longhua’s quality goal is that “Today’s quality means tomorrow’s market”.
