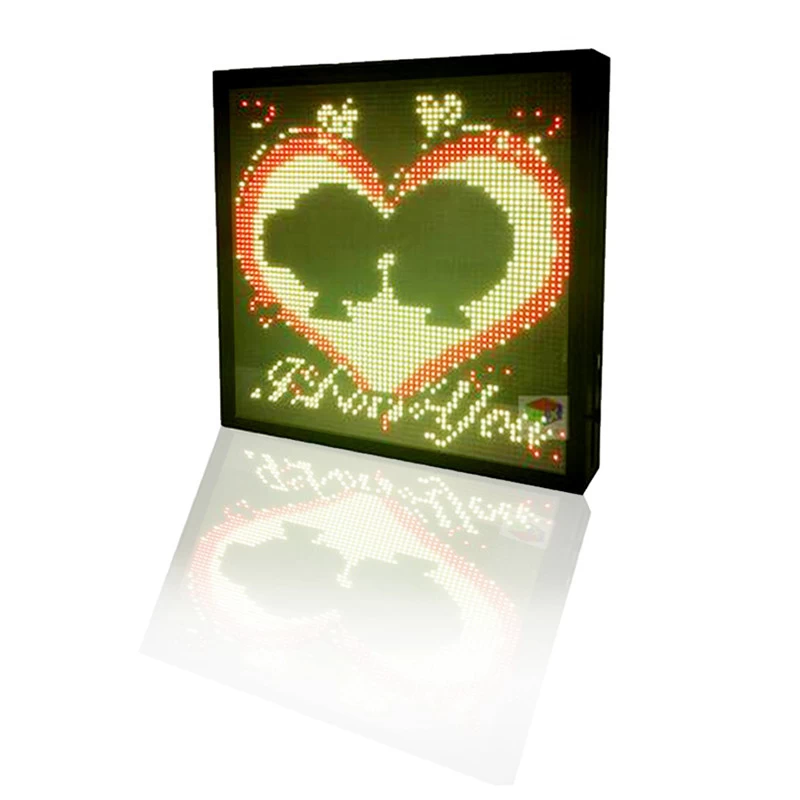

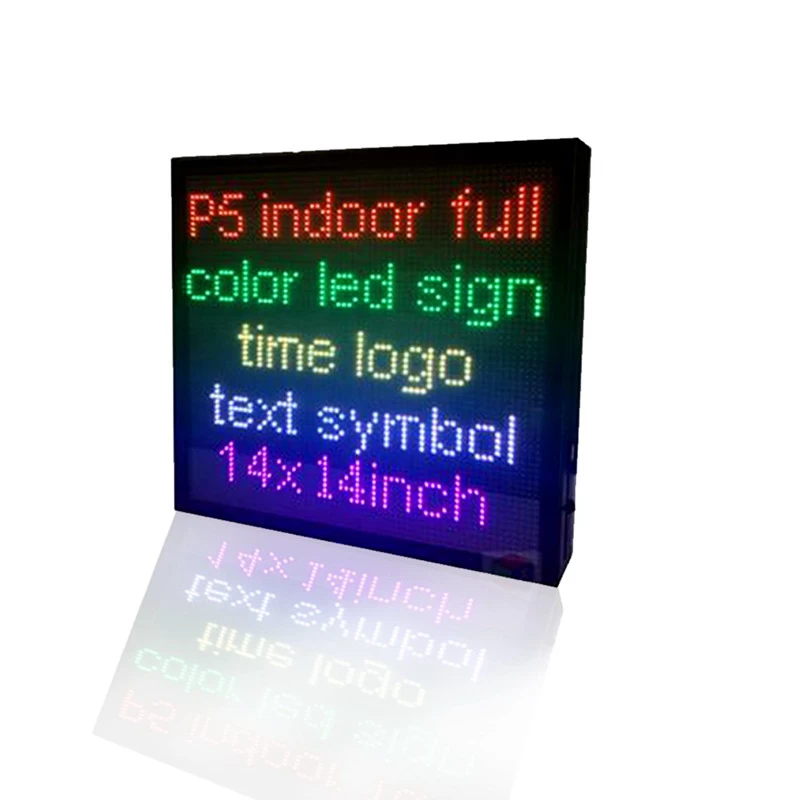

With enriched industrial experience and knowledge, we are providing an excellent range of LED Scroll Boards. Widely demanded by hotels, restaurants, banks, commercial shops and others, the offered boards are manufactured using high grade inputs and latest technology in compliance and advanced technology. In addition to this, our offered signage boards are quality checked under the supervision of quality controllers, in order to ensure their flawlessness.
Specifications
1.Display English or European characters as well as graphic symbols.
2.kinds of methods of displaying your message (Open to Center, Open from Right, Open from left,Cyclic,etc.)
3.Built-in real time clock. Customized time/date format are also available
4.Display speed adjustable.
5.Segmented display capability to allow separate control of sections of the display
6.Duplex function allows user read data from one sign by a PC and copy it to another sign
7.Interface of the managing software can be in multiple languages
Package including
*LED sign 1 PCS (size 36x36cm / 14x 14 inch)
*Signal connection cable
* Professional installation bracket
*USB with free software and English user manual
Feature & Function
|
P5 LED Module model
|
|
Color
|
RGB
|
|
LED Type
|
SMD
|
|
Module Resolution
|
W64 X H32
|
|
Module Size(MM)
|
W320 x H160
|
|
Driving Method
|
1/16 scan
|
|
Led display parameter
|
|
Voltage
|
220V or 110V ±10%
|
|
Material
|
Indoor Aluminum Frame Waterproof (IP20)
|
|
Cabinet Size (mm)
|
W360 x H360 MM (14x14 Inch)
|
|
Power Consumption Max (w/set)
|
60 Watt
|
|
Brightness(CD/㎡)
|
≥1500
|
|
Viewing Angle
|
120º/70º
|
|
Theoretic LED Working Life
|
More than 100000 hours
|
|
Control Method
|
USB control(network port,optional)
|
|
Display function
|
Date, Text, Picture, Logo
|
