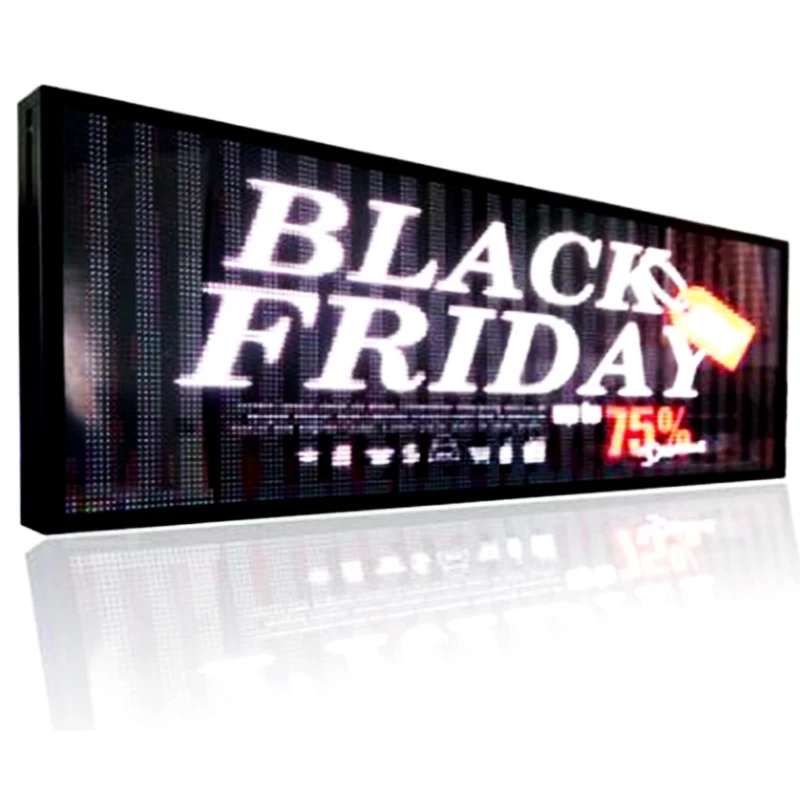

With enriched industrial experience and knowledge, we are providing an excellent range of LED Scroll Boards. Widely demanded by hotels, restaurants, banks, commercial shops and others, the offered boards are manufactured using high grade inputs and latest technology in compliance and advanced technology. In addition to this, our offered signage boards are quality checked under the supervision of quality controllers, in order to ensure their flawlessness.
Specifications
*Uniform color and high contrast ratio,Bringing up fresh and natureal image
*Low power consumption and fine heat release
*Super wide viewing angle increasing lts value by covering more audience
*No deformation under sunlight by the
*Use of anti-UV modules
*Safe and reliable operation ensured by stable signal and power supply
Package including
*LED sign 1 PCS (size 167x71cm / 66 x 27 inch)
*Signal connection cable
* Professional installation bracket
*USB with free software and English user manual
Feature & Function
|
P5 LED Module model
|
|
Color
|
RGB
|
|
LED Type
|
SMD
|
|
Module Resolution
|
W64 X H32
|
|
Module Size(MM)
|
W320 x H160
|
|
Driving Method
|
1/16 scan
|
|
Led display parameter
|
|
Voltage
|
220V or 110V ±10%
|
|
Material
|
Indoor Aluminum Frame Waterproof (IP20)
|
|
Cabinet Size (mm)
|
W1670 x H710 MM (66x27 Inch)
|
|
Power Consumption Max (w/set)
|
60 Watt
|
|
Brightness(CD/㎡)
|
≥1500
|
|
Viewing Angle
|
120º/70º
|
|
Theoretic LED Working Life
|
More than 100000 hours
|
|
Control Method
|
USB control(network port,optional)
|
|
Display function
|
Date, Text, Picture, Logo
|
