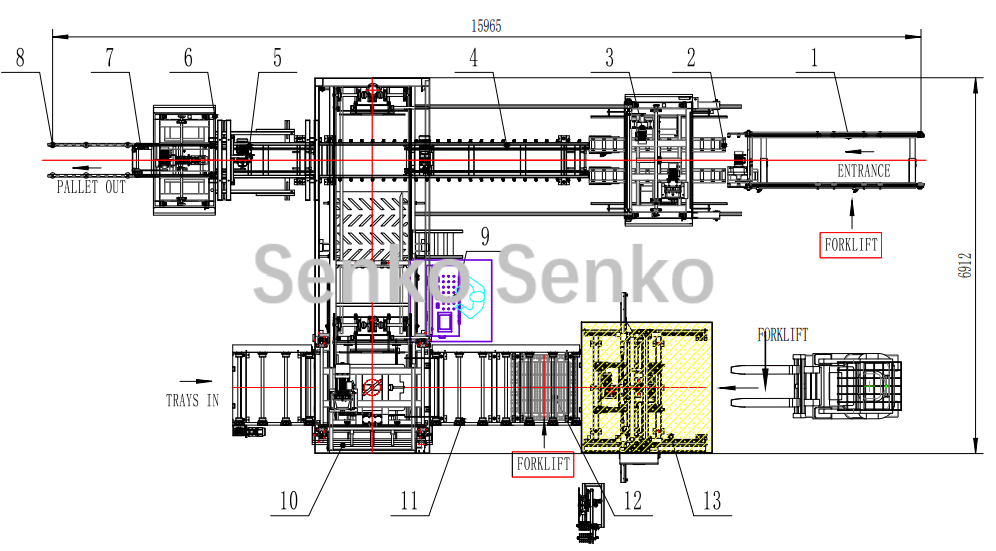

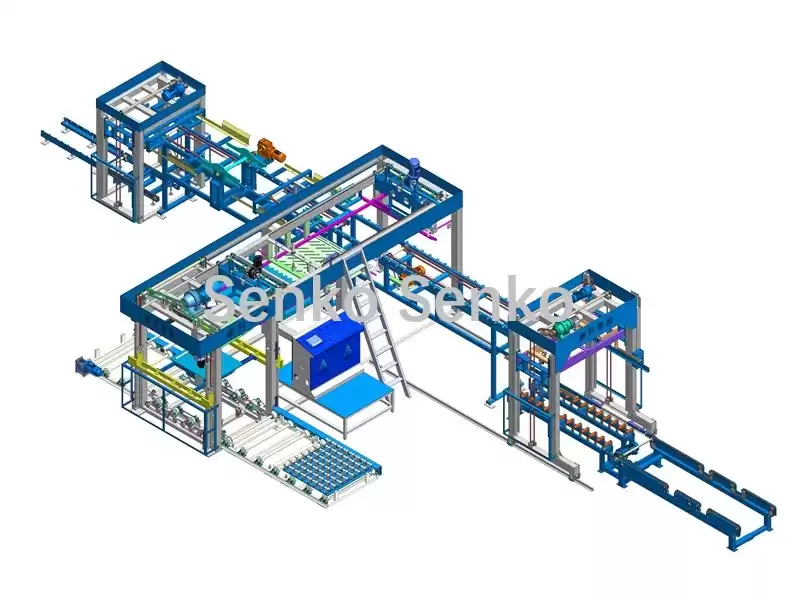

Full Servo Brick/Block Stacker MDJ-Z1200B

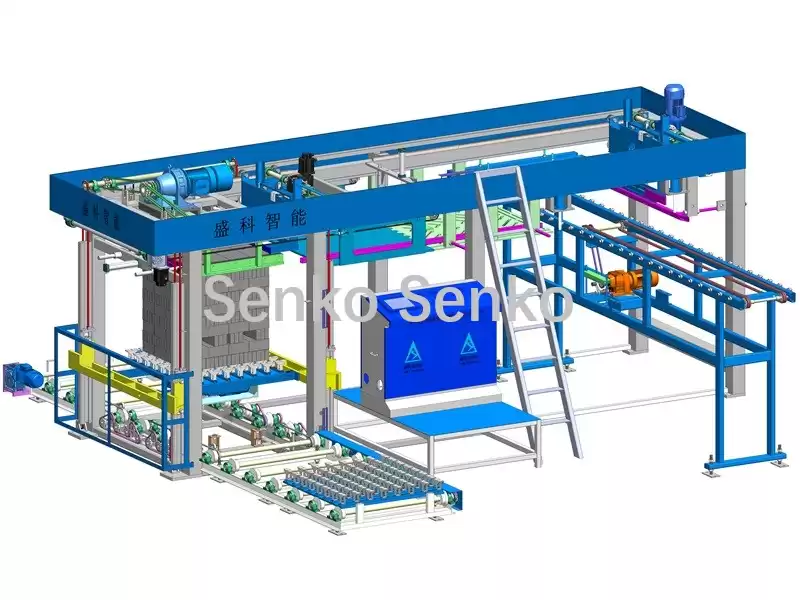

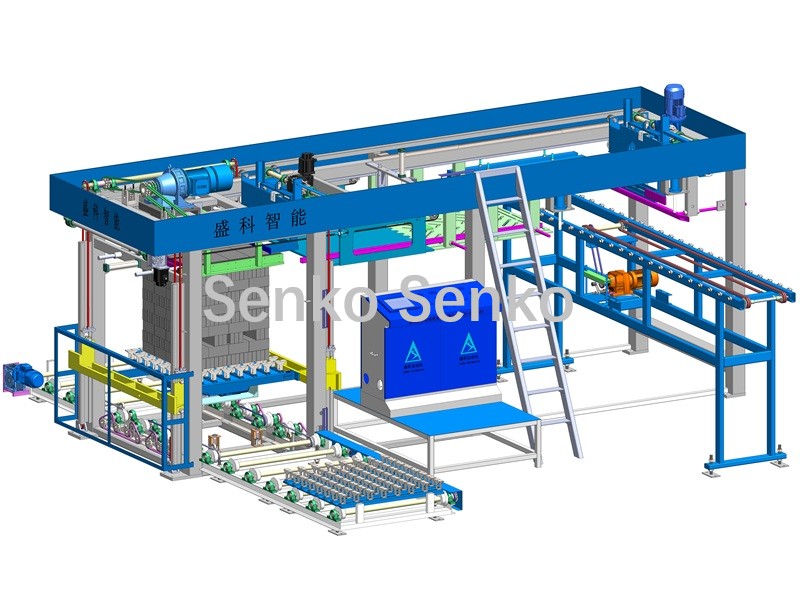

Main Stacking Machine:

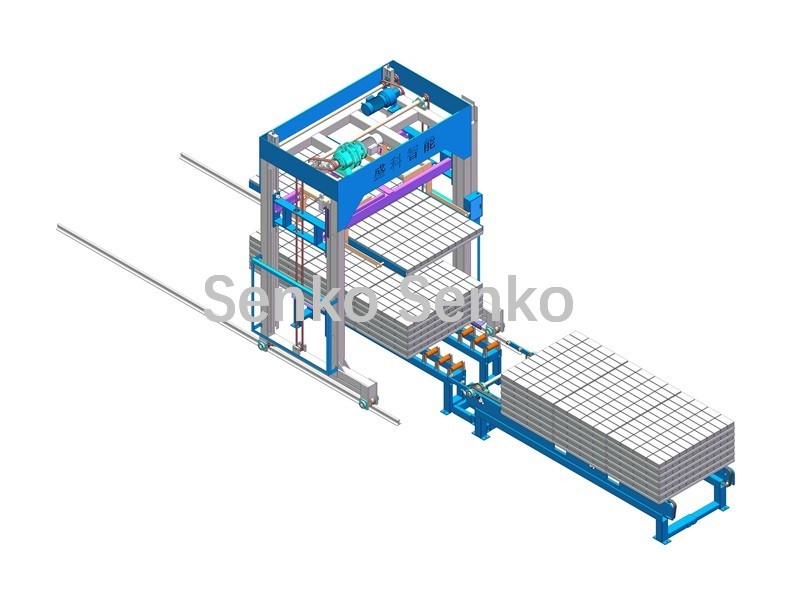

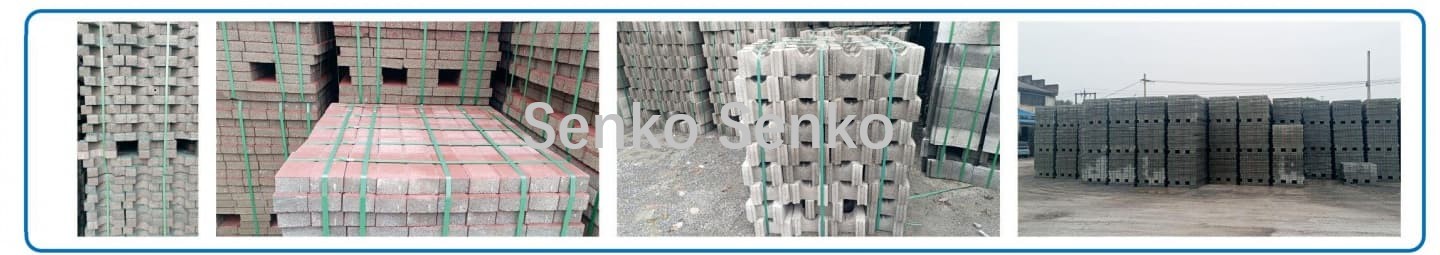

Pusher 3 pushes the fed bricks/blocks to the palletizing drawing plate, the palletizing drawing plate moves forward to the stacking position, Pusher 4 descends, stops the bricks/blocks on the drawing plate, the drawing plate pulls back and away, the bricks/blocks on the drawing plate fall and stack sequentially, realizing the stacking of cured bricks/blocks into a pallet. Pusher 4 is controlled by a servo motor, which can realize the reservation of forklift holes. After forming a pallet, it descends to the bottom, and rollers send out the stacked brick pallet for horizontal and vertical bundling and packaging with PET plastic steel straps.

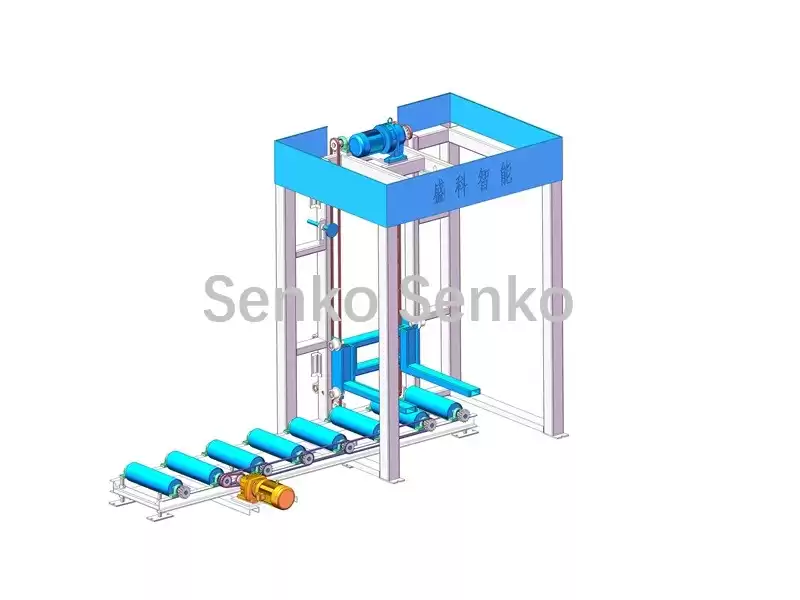

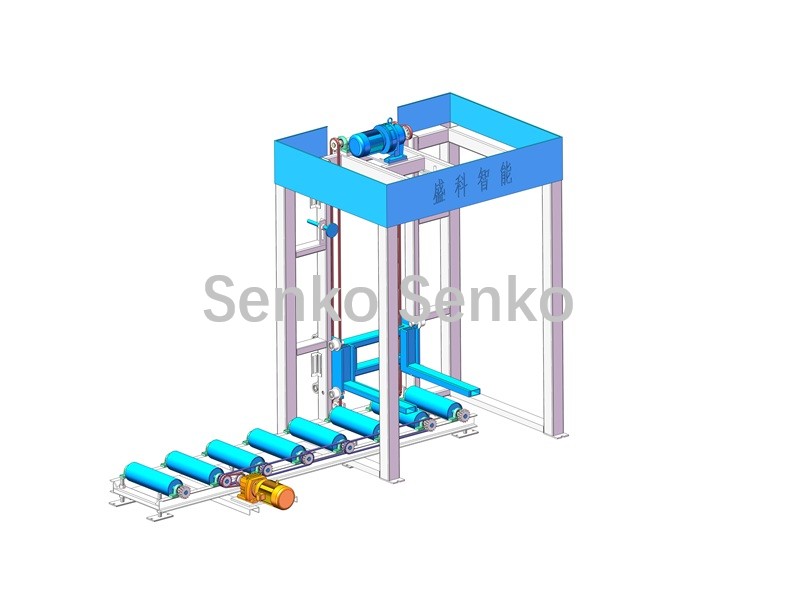

Palletizing Machine/Pallet stacking machine:

Empty pallets are pushed in one by one and descend to stack them into a pile. After the pile is stacked into a stack, it descends to the bottom and the conveyor sends the stacked pallets out, where they are picked up by a forklift.
