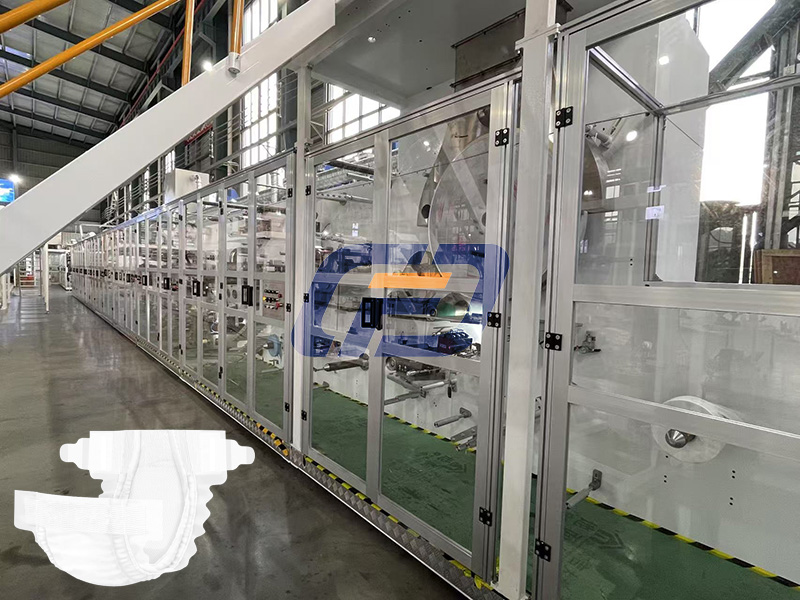

High Speed Baby Diaper Production Machinery Made in China
| Item |
Specification |
| Model |
FO-BD01 |
| Applicable Products |
Disposable Baby Diapers / Infant Nappies |
| Available Sizes |
NB, S, M, L, XL, XXL |
| Control System |
Full Servo Synchronous Control |
| Core Drive Components |
Mitsubishi / Siemens Servo Motor & PLC |
| Design Speed |
300 m/min |
| Stable Working Speed |
700 pcs/min |
| Core Forming Method |
Fluff Pulp Fiberizing + SAP Uniform Laying |
| Leak-proof Structure |
3D Stereo Leg Cuff + Elastic Waistband |
| Overall Dimension (L×W×H) |
30×7.5×3.6 m |
| Total Installed Power |
280 KW |
| Air Pressure Requirement |
0.6–0.8 MPa |
| Machine Net Weight |
32 T |
| Raw Material Compatibility |
Nonwoven, PE Film, Fluff Pulp, SAP, Elastic Band, Spandex... |
| Finished Product Qualified Rate |
≥ 97% |
| Material Waste Rate |
≤ 1.2% |
| Lead Time |
160–180 Days |
| Warranty Period |
12 Months |
-
-
Automated Diaper Production Sequence
Servo Material Unwinding: Continuous feeding with dynamic tension adjustment and uninterrupted auto-splicing.
Pulp Fiberizing & SAP Mixing: Ultra-fine hammermilling for fluffy pulp texture, evenly blended with SAP particles.
Core Structuring & Lamination: High-density absorbent core pressing combined with breathable multi-layer backsheets.
3D Standing Leak-Guard Insertion: Soft non-woven side barriers lined with high-elasticity rubber strands.
Flexible Waistband Assembly: Dynamic application of front and rear stretch panels for ergonomic toddler movement.
Pattern Embossing & Contour Cut-Off: High-definition texture pressing and synchronized rotary die-cutting.
Automated Folding & Stacking: Multi-stage high-speed tri-folding followed by precise electronic stack counting.
Inline Auto-Packaging: Automated transfer to bag-filling and thermal sealing units for finished packaging.
Applicable Products
- Newborn NB size baby diaper (for 0–3 months old babies)
- S size baby diaper (for 3–6 months old babies)
- M size baby diaper (for 6–12 months old babies)
- L size baby diaper (for 12–18 months old babies)
- XL size baby diaper (for 18–24 months old babies)
- XXL size baby diaper (for 24+ months old toddlers)
After-sales Support
Scale your hygiene manufacturing with complete operational peace of mind. From initial plant layout design and tailored equipment selection to raw material sourcing advice, we support your project every step of the way. We provide full on-site installation, comprehensive technician coaching, prompt remote technical assistance, and lifetime spare parts availability. With full CE and ISO compliance, our reliable machinery helps you achieve fast ramp-up speeds and capture early market opportunities in the baby care sector.
FAQ
1. How many years of experience do you have in machinery manufacturing?
We have been deeply engaged in hygiene product machinery manufacturing since 2008.
2. Do you also help with raw material sourcing?
Yes, we can assist our clients in sourcing reliable raw materials for hygiene products to ensure smooth production.
3. Can I inspect the machine before shipping?
Yes, we invite you to our Quanzhou factory for a test run and inspection before delivery. Video inspection is also available.
