Full Suspension Carbon Fiber Electric Mountain Bike Frames

-Type: FULL Suspension AM E-bike Frame

-Size: 15.5"/17.5"/19"

-Head Tube: Upper 44mm lower 56mmFSA-NO.57

-Weight :3200g±50g

-Seat tube Diameter :φ31.6mm




Full Suspension Carbon Fiber Electric Mountain Bike Frames


  • Type: FULL Suspension AM E-bike Frame

  • Size: 15.5"/17.5"/19"

  • Head Tube: Upper 44mm lower 56mmFSA-NO.57

  • Weight :3200g±50g

  • Seat tube Diameter :φ31.6mm

  • Motor System:M500/M600

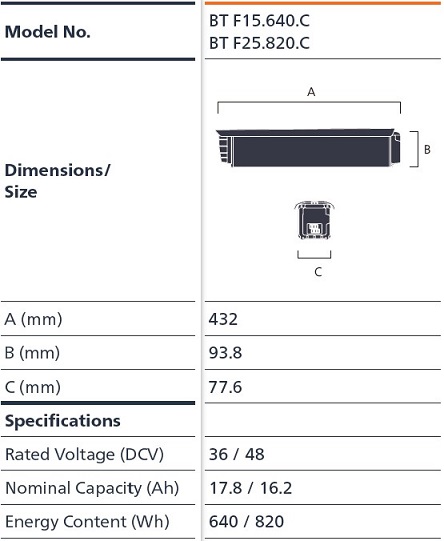

  • Battery :  SYR-MUSTANG Pro-B 36V*24.5&48V*17.5

  • Max Tire Clearance :  29"*2.6"/27.5"*3.0"

  • Brake Type :  Post Mount Disc brake

  • O.L.D: 148mmφ12mm

  • Finish :UD/Color

  • Rear travel:150mm

  • Max Chainring:40T

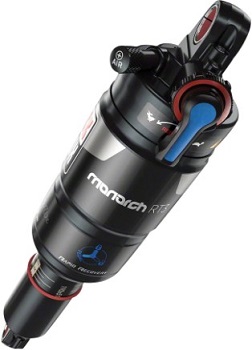

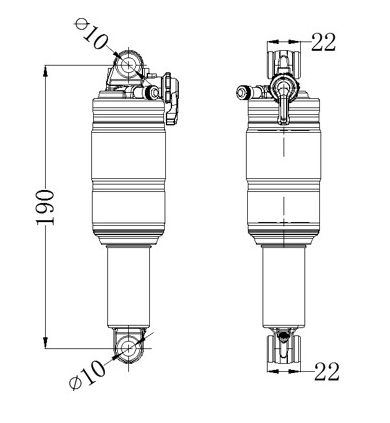

  • Rear shock size: 190mm*51mm (UP54*m10*P1.0,DOWN

  •                             22*φ10

  • Test Standard : ISO4210/EN15194



Carbon Bike FramesMountain Bike FramesElectric Carbon Bike Frames

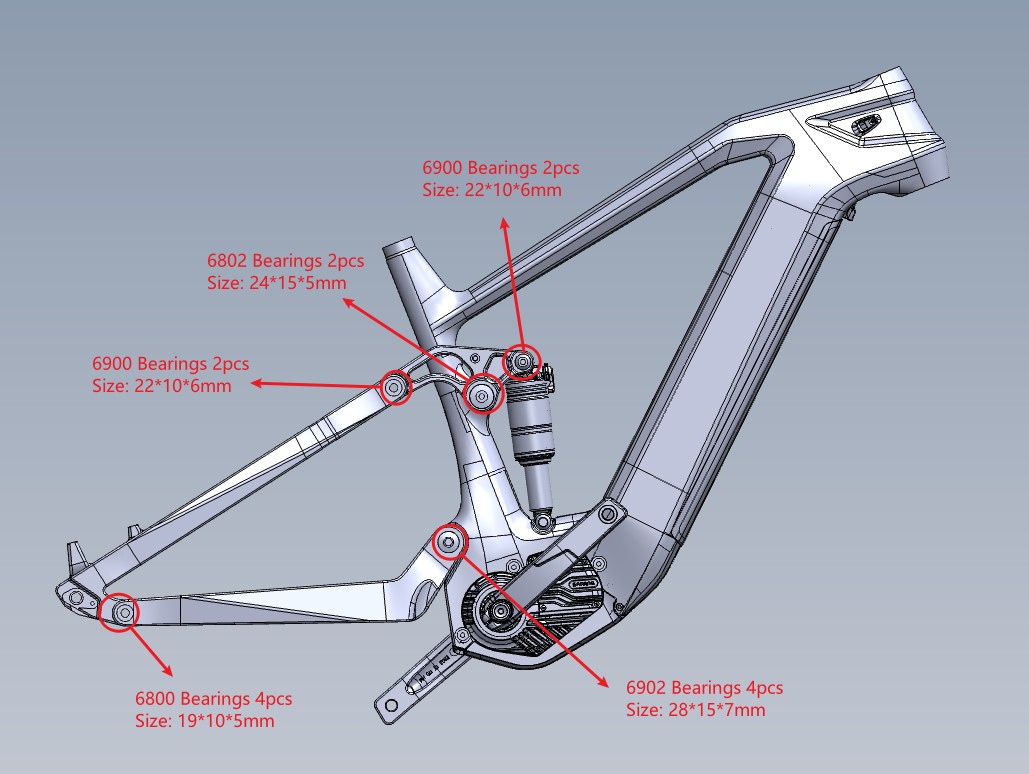

Bearings Size and Quantity

Bearing Size of Carbon Bike Frame

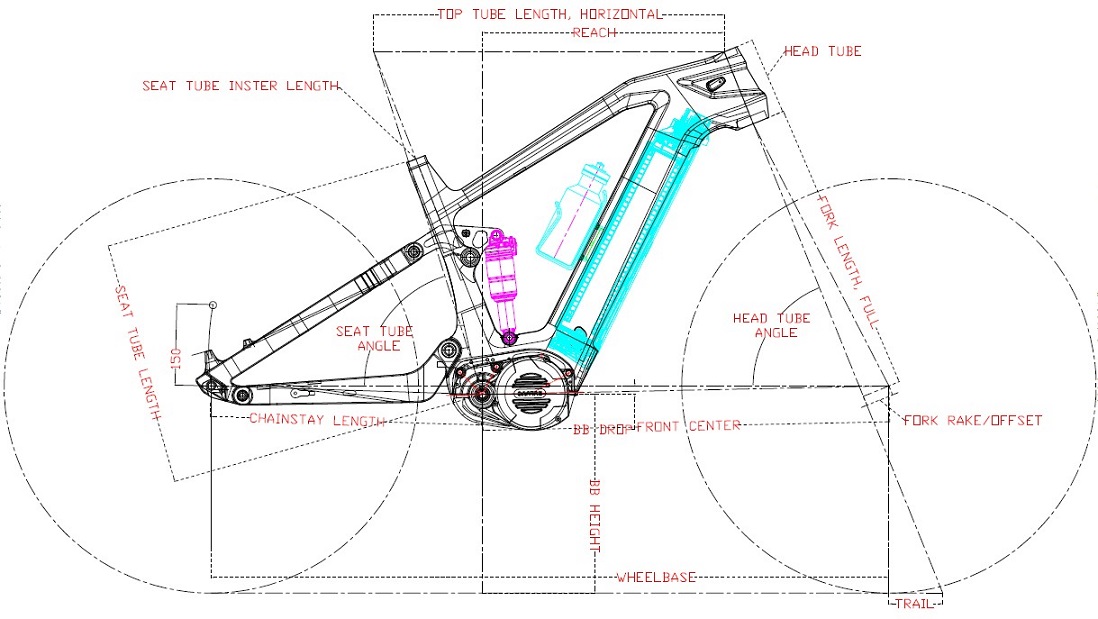

Ebike frame geometry

Ebike frame geometry

Many kinds of frame size for customer more option,please send email to sales@tourdecycling.com for more frames size geometry.



Size
15.5"
17.5" 19"
Stack 621.6 630.9 640.1
Reach 423 446 469
Head Tube Angle 68 68 68
Head Tube Length 133 143 153
Seat Tube Angle 72.4 72.4 72.4
Seat Tube Length 400 451 482
Top Tube Length 620.1 646.3 672
BB Drop 15.8 15.8 15.8
Rear To BB Center 500 500 500
Fork To BB Center 722.9 749.8 776
Fork Built Height 540 540 540
Fork Rake 51 51 51
Wheel Base 1222.5 1250 1276

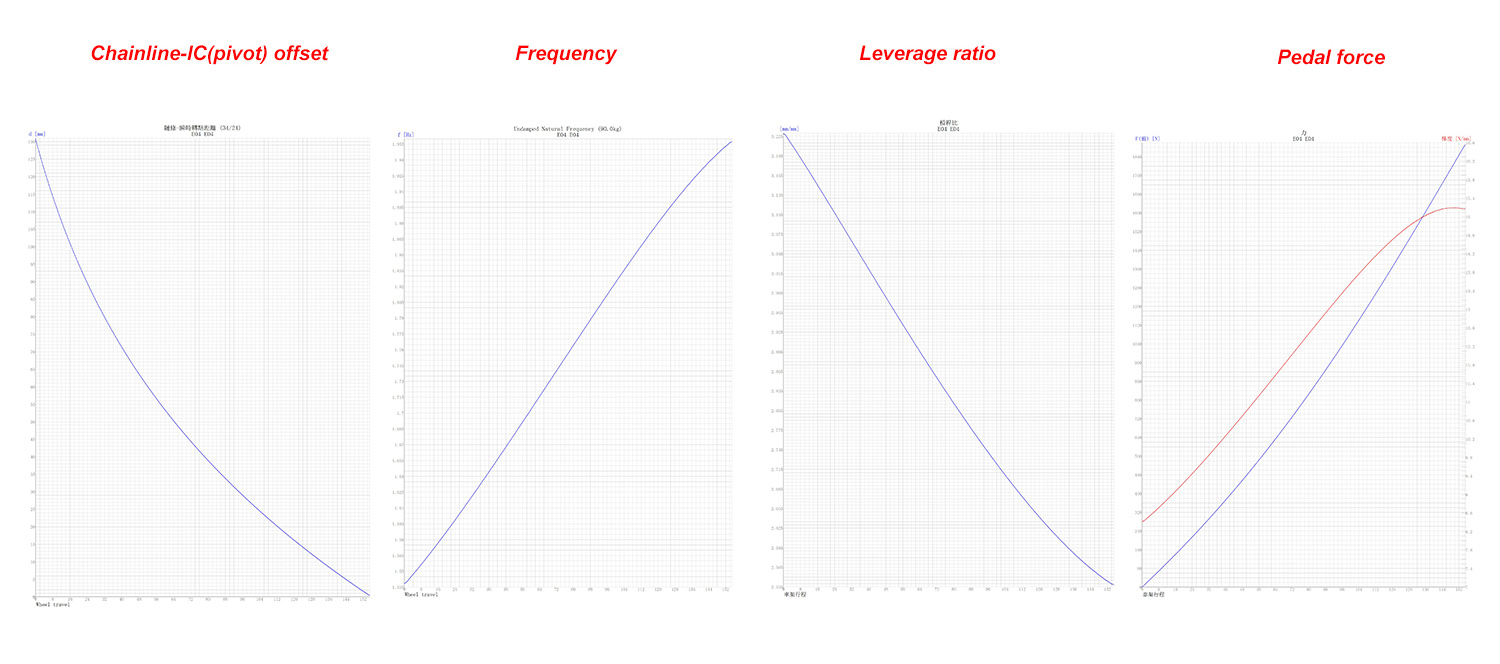

Below curve data was simulated

Electric Carbon Bike Curve Data

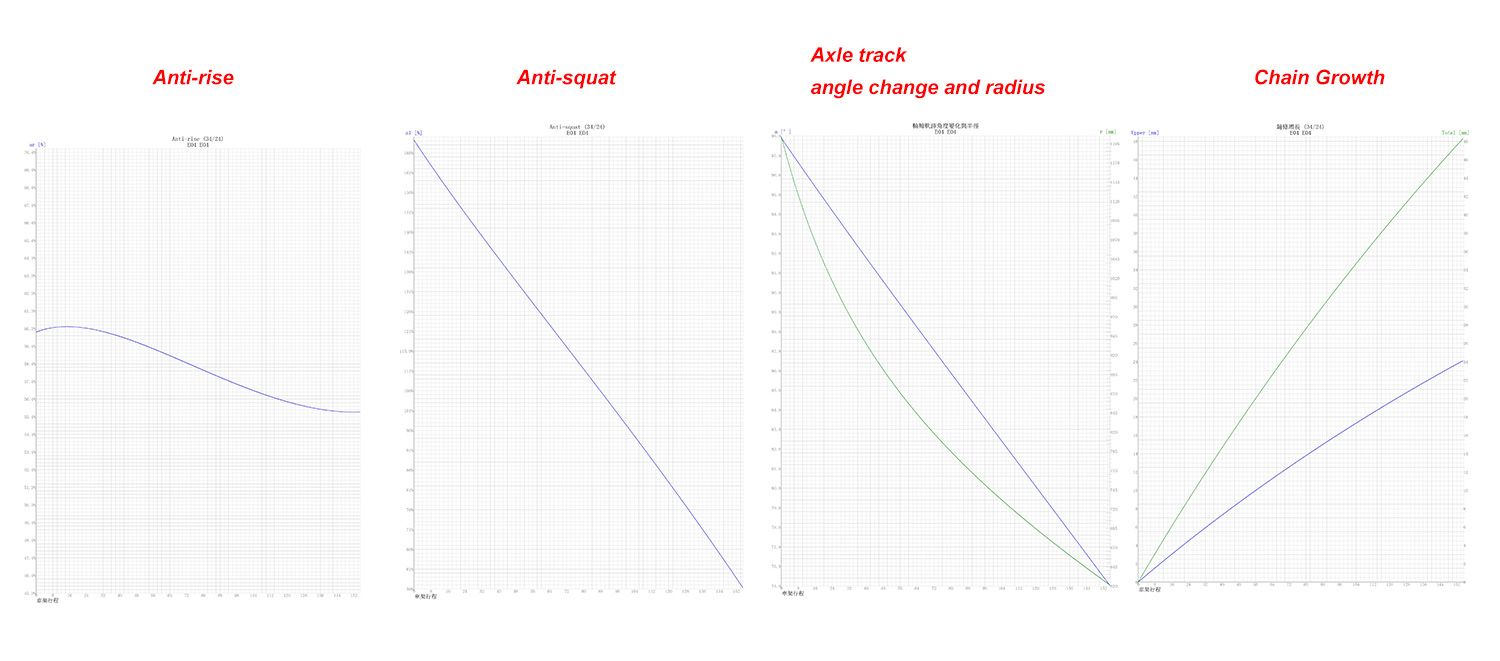

Electric Mountain Bike Frame Curve Data

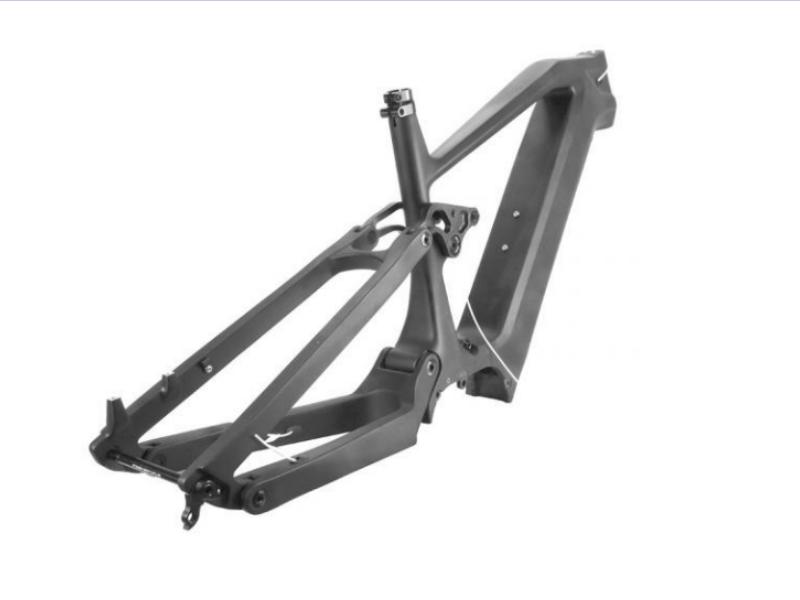

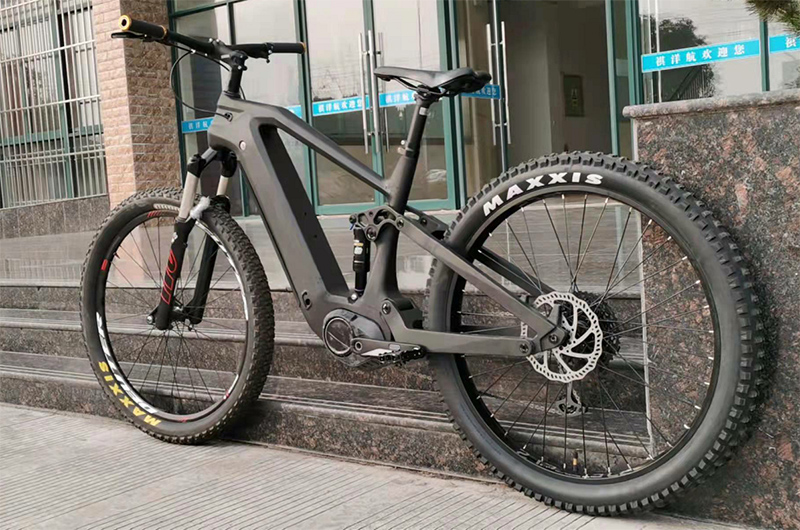

Complete built bike with TDC-EM28 carbon frame display

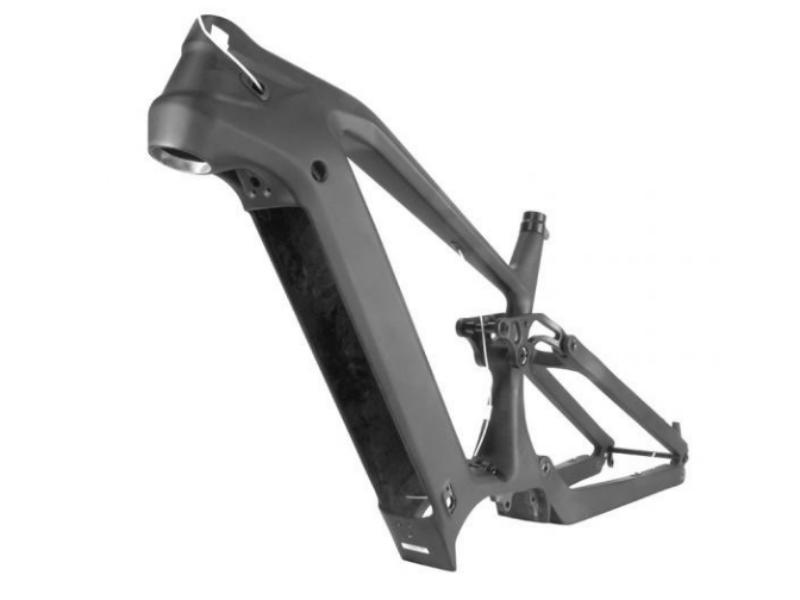

Electric Mountain Carbon Bike Framesets


TECHNOLOGY


carbon fiber frames design

Italy Design Team

we invited Italy professional engineer to develop new moulding each year. More than 10 years design experience can supply more accurate design which is developed according to the customer’s requests and specifications, focusing on the targets and providing functional solutions.


bicycle frame 3D print

3D latex mandrel technology

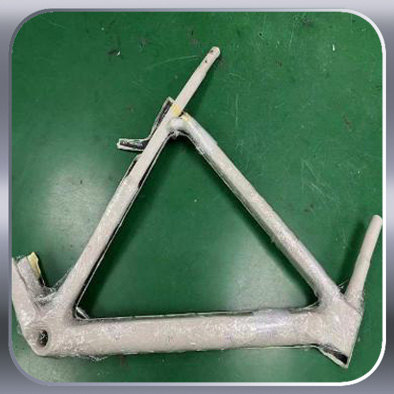

we added new 3D latex mandrel technology. 3D latex mandrel technology than traditional EPS or airbag technology can make frames more smooth without wrinkle inner wall.


carbon fiber Tory for bicycle frameset

Carbon Fiber Material

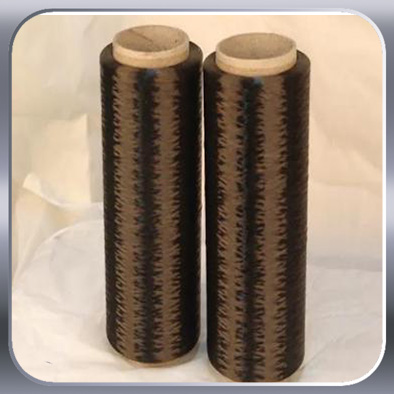

Premium Japan Toray T700/T800 carbon fiber is used in our carbon bike frame.

Combining with stable resin system to make consistent quality and light weight frame.

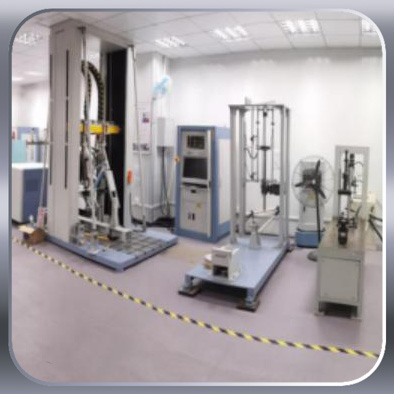

BIKE FRAMES TEST LAB

Lab Test

All tour de cycling carbon frame are rigorously tested under international standard ISO4210/EN15194.We will also be sent sample to the 3rd External Organization for SGS testing upon customer’s requirement. All new frames will be tested at least 10% more strictly during the development phase on the basis of EN15194 or ISO4210, thus it can ensure the safety of all products.


Bicycle frameset wrannty

2-Year Warranty

We have very strict mass production management system, IQC, PQC, OQC and Lab Testing process. We insist on making high quality.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty  to see more details in another page.
