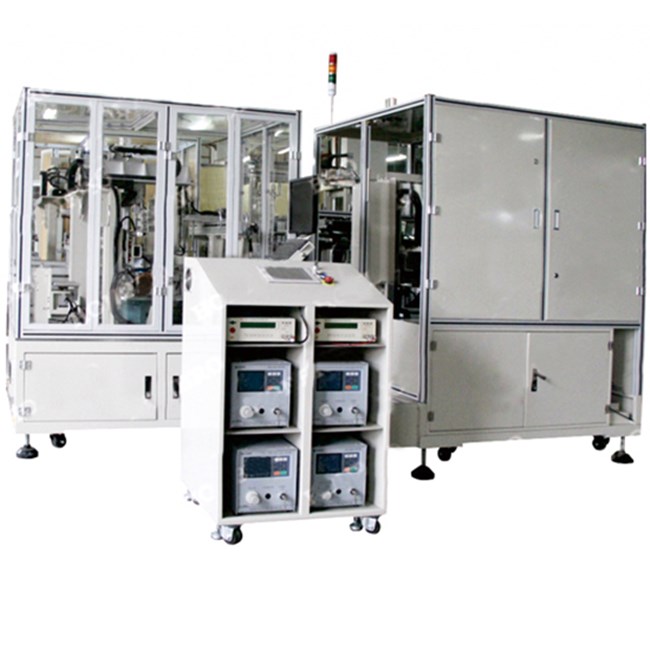

Fully-auto prismatic EV-battery cap welding & insulation resistance test machine
Functions
● Apply for EV-battery cap welding, insulation resistance test before & after welding, shell body air-leakage test, laser marking code and auto classification.
Features
● Insulation resistance test before & after welding
● To match with different leakage test way according to the user request.
● Laser marking code on the battery rely on system test.
● Auto classification & collection.
Technical Parameters(for reference)：
|
ITEM
|
MAIN PARAMETERS
|
|
Dimension
|
L x W x H ≈4500x2500x2000mm
|
|
Weight
|
About 2.5T
|
|
Laser brand
|
Rofin / IPG ( User defined)
|
|
Welding way
|
Continuous welding or single side welding
|
|
Max power
|
15KW( Adopt laser welding 2KW)
|
|
Power supply
|
To comply with the user’s country
|
|
Air source
|
≥0.6Mpa, 50L/min
|
|
Vacuum source
|
Equipment include vacuum source
|
|
Applicable battery range
|
L 60-250, W 18-60, H 80-200
|
|
Capacity
|
Normal laser welding speed 120mm/s
|
|
Test pressure
|
-90～0Kpa
|
|
Test resistance
|
100K～50GΩ
|
