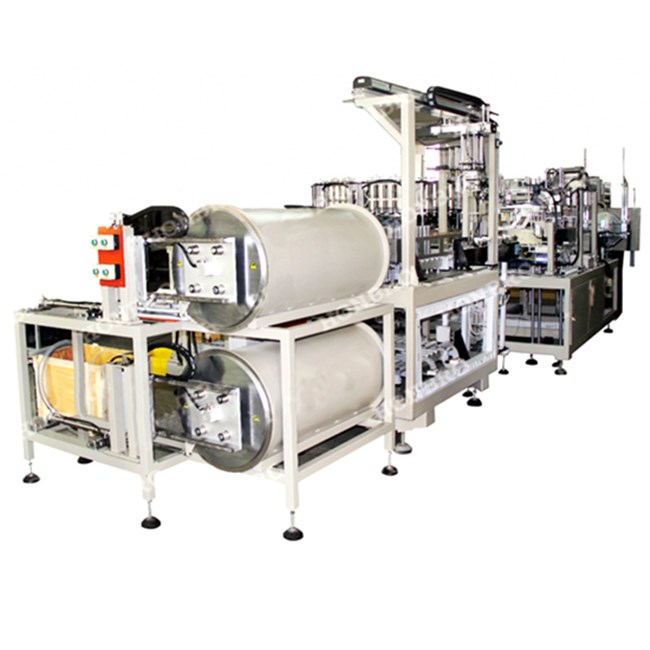

prismatic EV-battery Automatic filling machine
Functions
● It is used to EV-battery auto filling. To finish auto battery feeding, battery cooling storage, insulation resistance test, scan code & weight, NG sorting before filling, auto filling, auto recycle and keep holding, NG sorting & collection after filling, re-filling NG battery, wipe the filling hole & the stopper by manual, into transfer tray, auto go to interim chamber.
Features
● The battery tray auto feeding, battery cooling storage 1 hour
● Filling cup double layers design, blocking rod steel seal, easy to clean, the blocking rod & seal head can be used recycle.
● Equip Picking up liquid trough to avoid the residual electrolyte polluting equipment.
● Auto electrolyte mixing system, remove air bubble, avoid dropping electrolyte
● Auto clean system to clean filling pump & cup regular
Technical Parameters(for reference)：
|
ITEM
|
MAIN PARAMETERS
|
|
Dimension
|
L x W x H ≈5000x2450x1800mm
|
|
Weight
|
About 4.5T
|
|
Power supply
|
AC380V/50HZ, 7.5KW
|
|
Air source
|
≥0.6Mpa, 30L/min
|
|
Vacuum source
|
≤ -0.09Mpa, 40L/S
|
|
Applicable battery range
|
H 100-240, W 100-180, T 10-50mm
|
|
Capacity
|
≥4.5PPM(Holding time 15mins, filling volume ≤300g)
|
|
Action
|
≥98%
|
|
Filling volume
|
0-500g, adjust
|
|
Filling precision
|
L x W x H ≈5000x2450x1800mm
|
|
Weight precision
|
About 4.5T
|
|
Dimension
|
AC380V/50HZ, 7.5KW
|
