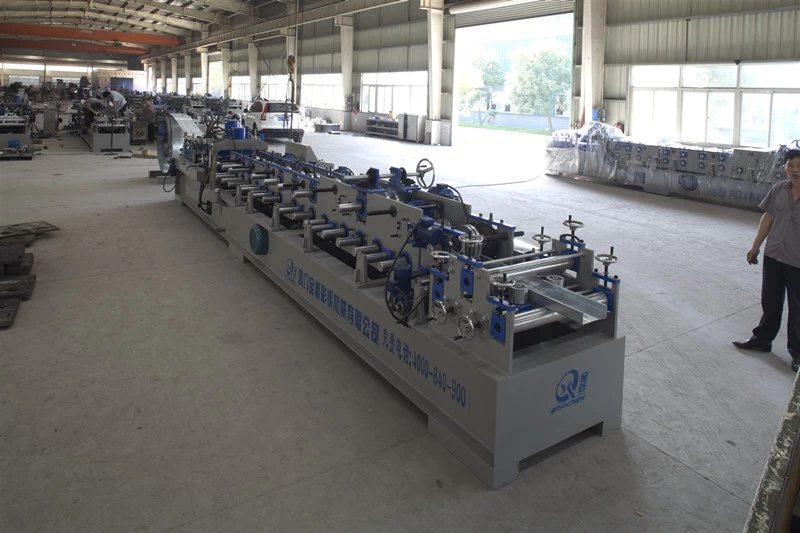

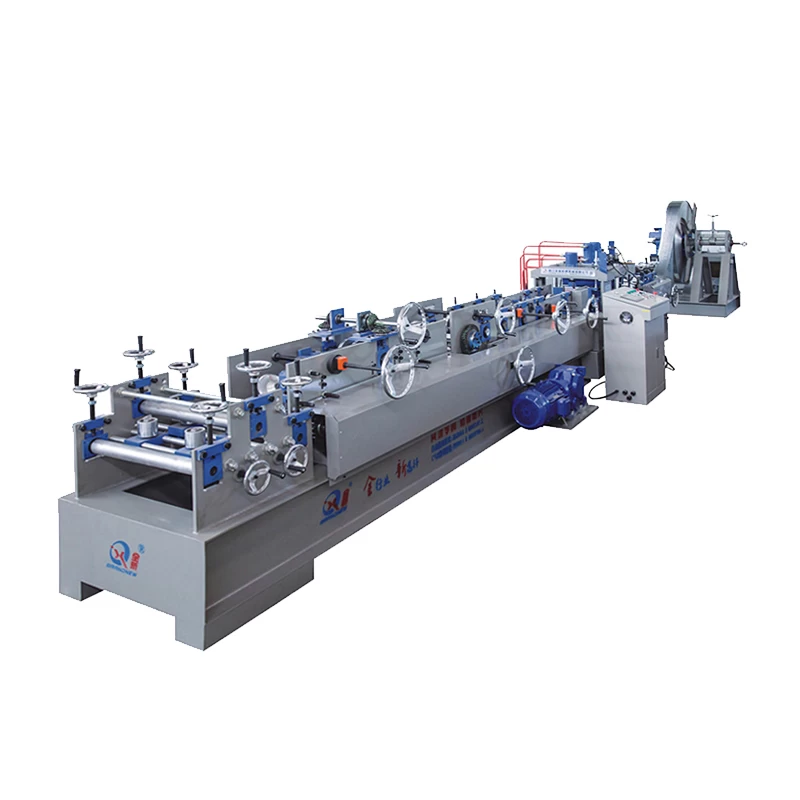

Advantages of Automatic Quick-change C purlin machine :
1.Automatically change different purlin size in one minute, without changing rollers or spacers.
2.Post-cutting design, no worry about twist and flare caused by Pre-cutting design.
3.With computer controlled system which easy to operate and save time and cost .
4.Post-cutting system or fly-cutting for option.
We are the first and only factory to have a whole Baking Finishing Line to treat the spare parts.
Product Specification
|
Bottom width(W)
|
100-300mm
|
|
Height(H)
|
30-80mm
|
|
Small side(E)
|
10-20mm
|
|
Material width(λ)
|
178-485mm
|
|
Material thickness(&)
|
Q235（1.5-3.0mm）/G350(1.5-2.5mm)
|
|
Chain size
|
1.2 inch +1.5 inch +1.75 inch
|
|
Main shafts diameter
|
φ80/65mm, round steel with modulating treatment
|
|
Leveling shafts diameter
|
Solid rollers φ95mm（upper2,down3）
|
|
Wall panel thickness
|
25mm
|
|
Machine base size
|
H396*199
|
|
Driving power
|
Motor 18.5KW, Helical gear reducer with K series
|
|
Punching and cutting power
|
Hydraulic power7.5KW
|
|
Forming speed
|
22m/min without punching
|
|
No. of punching
|
2 sets（Double+single）14*25
|
|
Interchanging way
|
Unlimited change by computer 0.25/0.55KW
|
|
Punching and cutting way
|
Pre punching and cutting + post cutting
|
|
Roller material
|
Most roller materials are Gcr15,/Leaning roller materials are Cr12
|
|
Forming station
|
4+5+5=14 stations (without embossing）
|
|
Blade material
|
Cr12Mov, Heat treatment after wire cutting
|
|
Control mode
|
PLC（Delta Taiwan）
|
Main Parts
1. Feeding material guide and leveling device
Two rollers (one up and one down roller) for material guide and 5 rollers ( 2 up and 3 down rollers ) for straightening.
solid and shafts diameter=φ95mm

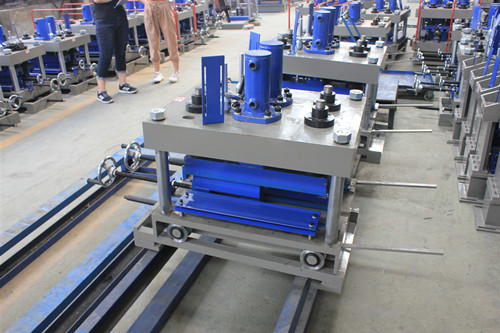

2. Pre-punching system
Two set of punching device of three cylinders (one cylinder for single hole and 2 cylinders for dual-holes.)
Also, can make three or more punching sets as customer’s requires.
3. C purlin machine rollers and shafts
Rollers are made of bearing steel GCr15, precision machined, hard Chrome Coated;
Leaning rollers are made by Cr12;
Shafts manufactured from #45 steel or Gcr15 for optional, Main Shaft Diameter=φ80/65mm, quenching and tempering treated
4. C purlin machine post-cutting system:
No need to change cutter for different size;
Unlimited specification changing for height and bottom width;
Cutting blades made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
5.Control System
C purlin machine control box
(Touch screen brand: WEINVIEW, Inverter brand: Finland VOCAN/Taiwan DELTA/ALPHA, Encoder brand: Japan Koyo/OMRON)
6.Uncoiler
C purlin machine uncoiler
One set manual uncoiler, Un-powered, manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 3Ton
We also have hydra uncoiler for option
7. C purlin exit rack
Un-powered, three units
