1. Function introduction

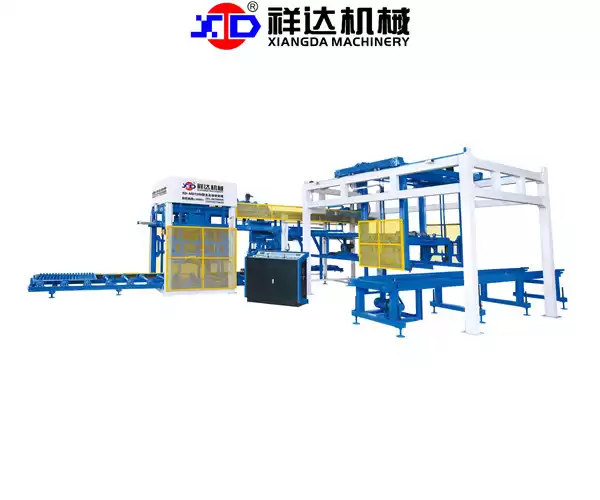

Bricks Collecting Machine

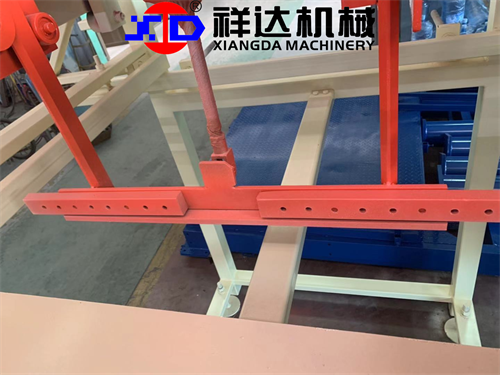

1) The clamping jaw of the lifter has an automatic centering function, which reduces the difficulty of forklifts for workers, reduces the chance of falling bricks, and improves efficiency.

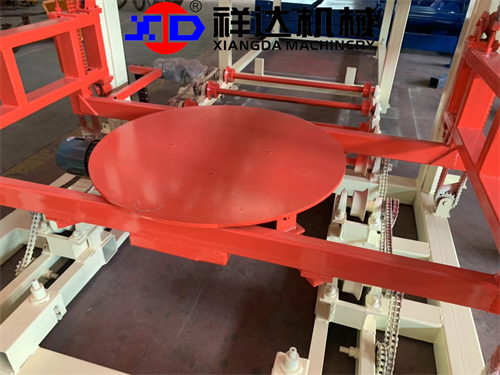

2) The turntable is integrated in the stacking and lifting, integrating the time conflict between actions and improving the efficiency of collecting bricks.

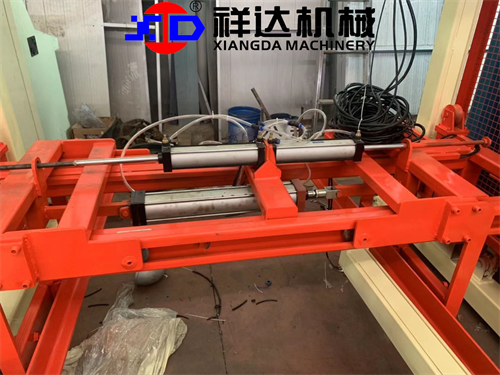

3) The size of the push claw is made flexible and adjustable, which improves the convenience of users to replace the bricks.

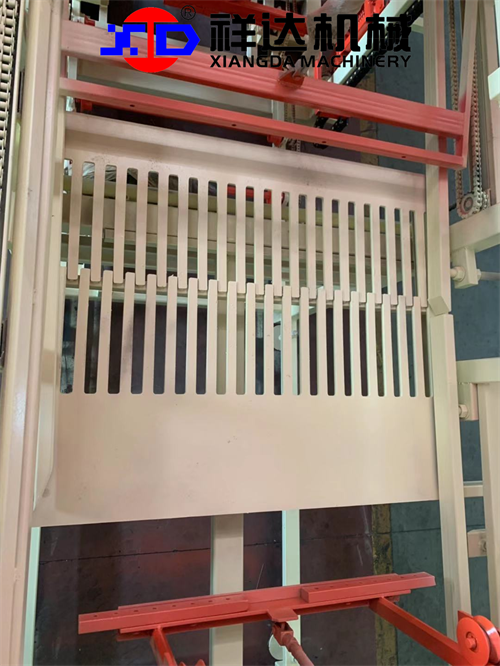

4) The palletizing transition platform adopts a cross type to filter the brick slag without dead corners and improve the flatness of the brick stack.
Technical parameters of automatic code brick production line
Bricks Collecting Machine
|
Total power
|
29.5KW (including 7.5KW air compressor) (actual operating power 14. 2KW)
|
|
Code brick maximum size
|
1200mm long, 1200mm wide, 1450mm high
|
|
Palletizing cycle
|
15 seconds average period
|
|
Total Weight
|
11 tons
|
|
Brick range
|
Regular bricks arranged in the same direction are tried, (outside of triangular bricks)
|
|
Applicable pallet size
|
Model 4 to Model 15
|
Automatic code brick output table:
Bricks Collecting Machine
|
Brick specifications
|
Pallet size specifications and output
|
Pallet size specifications and output
|
Pallet size specifications and output
|
|
Solid brick
240x50x115
|
Conventional layer: length 960 x width 960, 76 pieces per layer, 52 pieces perforated layer; 15960 pieces per hour, 888 pieces per 12 layers
|
Regular layer of length 1200 x width 1200, 120 layers per layer, 96 perforated layers, 20160 blocks per hour, 1216 layers per stack
|
|
|
Color brick
100x200*60
|
Regular layer of length 800 x width 800,
32 per layer, 20 perforated layers, 6720 per hour, 692 per 22 layers
|
Regular layer of length 1000-width 1000
50 per layer, 35 perforated layers,
10500 pieces per hour, 1085 pieces per 22 layers
|
Regular layer of length 1200 x width 1200, 120 pieces per layer, 96 pieces perforated layer, 25200 pieces per hour, 1416 pieces per stack 22 layers
|
|
concrete Block
390x190*190
|
Regular layer of length 800 x width 800, 8 layers per layer, 6 perforated layers, 1 680 per hour, 7 layers per stack of 54
|
Regular layer of length 1200 x width 1200,
18 per layer, 12 perforated layers,
3780 pieces per hour, 120 pieces per stack of 7 layers
|
|
|
With brick
190x50x115
|
Regular layer of length 950 x width 950, 95 layers per layer, 65 perforated layers, 19950 blocks per hour, 1210 layers per stack
|
Regular layer length 1140-width 1140
132 per layer, 96 perforated layers,
27720 pieces per hour, 1548 pieces per 12 layers
|
|
