Product Name: Full Automatic Screen Printing Machine

As an attract a great deal of attention firm in the printing industry, we are engaged in providing our clients with a distinct assortment of Full Automatic Screen Printing Machine, which is not directly printed to garments and cloth, we screen printed to roll film directly.

Application
Fuel cells
Solar cells
Smart fabrics
Automotive Decals
Electronic camouflage
Mobile phone touch screen
Lithium batteries
Flat screen televisions
Touch panels
Circuit boards（as flexible circuit boards）
Printed electronics

Membrane switches

Miniature circuits on ceramics

RFID (as RFID antennae )

In-mold transfers switch panels
Special effects graphics printing
Thin film heating elements
Heated rear windscreens
Sports-wear decoration
 textiles flexible labels

The Full Automatic screen printing machine ---LAT-3040

• printing area               300 x 400 mm
• printing speed            0-8000 impression/hour
• screen frame             600 x 700 mm
• Max. paper width       350 mm
• air source                 0.4-0.6 mpa
• Power                      single phase 220v,3kw, 15A

the Full Automatic screen printing machine --LTA-460

• printing area               460 x 560 mm
• printing speed            0-2500 impression/hour
• screen frame             700 x 830 mm
• Max. paper width       470 mm
• air source                 0.4-0.6 mpa
• Power                      single phase 220v,3kw, 15A

the Full Automatic screen printing machine ---LTA-5060

• printing area               500 x 600 mm
• printing speed            0-2500 impression/hour
• screen frame             800 x 1000 mm
• Max. paper width       520 mm
• air source                 0.4-0.6 mpa
• Power                      single phase 220v,3kw, 15A

the Full Automatic screen printing machine --LTA-6080

• printing area               600 x 800 mm
• printing speed            0-2500 impression/hour
• screen frame             900 x 1200 mm
• Max. paper width       620 mm
• air source                 0.4-0.6 mpa
• Power                      single phase 220v,3kw, 15A
• material thickness     0.02-0.5mm

Electronic Label Screen Printing Machine --LTA-50120

• printing area               500 x 1200 mm
• printing speed            0-2500 impression/hour
• screen frame             800 x 1600 mm
• Max. paper width       520 mm
• air source                 0.4-0.6 mpa
• Power                      single phase 220v,3kw, 15A
• material thickness     0.02-0.5mm

FAQ
1, Are you a manufacturer or a distributor?

We are a professional manufacturer for 15-years in China.

There are so many models of the single color roll to roll screen printing machine in our workshop which ensure short delivery time and can reduce your waiting cost.

2, How much printing accuracy can be achieved?

We can reach 0.01 mm overprint precision

3, How many colors do you machine can print?

We can print 1 color, 2 colors, 3 colors, 4 colors, 5 colors, 6 colors, 7 colors and more.

4, How many kinds of material could be printed on?

Film & paper is OK, such as PET, PVC, PE, BOPP, PP

5, What's your printing speed?

10-20 meters /minuter in generally, 600-1200 meters / Hour.

• the thickness range: 0.02 -0.5 mm
• the breadth range: 300-600mm

7, What kind of ink does your screen printing machine use?

All kinds of ink can print, like the solvent ink, water-based ink and plastical

8, What's the power consumption of this roll to roll printing machine system?

It's about 40 KWH /day,  working 8 hours

9, Could you supply the training by your side?

Yes, we  supply Free Training and Installation overseas, but the round airplane ticket is on your side

• We can offer screen film, screen ink supplier and various ancillary equipment and accessories
• High requirement and High demand label, you can give to Lingtie Brand fully automatic screen printer

 11, What's the roll to roll screen printing machine price?

Tell the truth, the price is not very cheap. As you know, only a reasonable profit can guarantee high quality

12, What are the Certifications of your machines?

We have CE Certificate & ISO Certificate

13, How can you promise that Each Component, 10-years non-rusting?

We have the Self-Machining CNC Center and each process under the strict quality control,  which is one of the conditions that ensure the stability of the roll to roll screen printing system.

14, How many countries have you installed fully automatic screen printing machine so far?

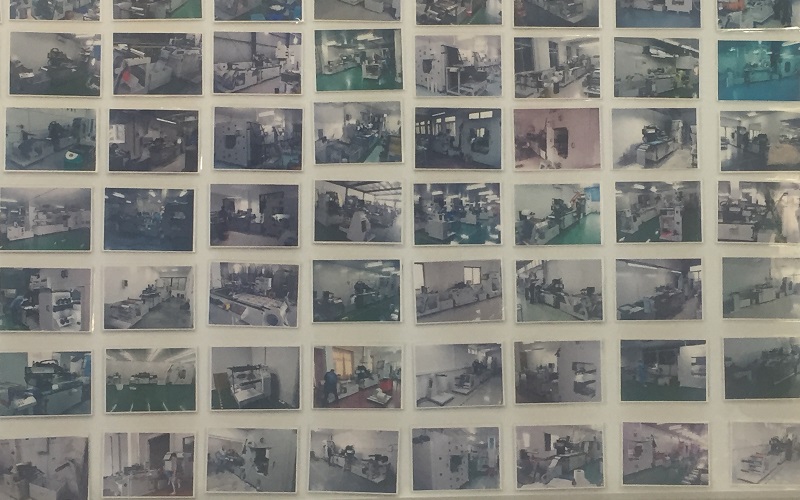

We had installed the machine more than 20 countries since 2009( get the export and import right in 2009), the below images show our machine in clients'  factory.
