Fused Silica Windows and Quartz Windows

Fused Silica material Advantages

With Good UV and IR transmission, Low thermal expansion, providing stability and resistance to thermal shock, Wider thermal operating range and High laser damage threshold make Fused Silica windows could used for Laser, Medical, imaging etc. application.


Facebook Twitter Pinterest LinkedIn 分享

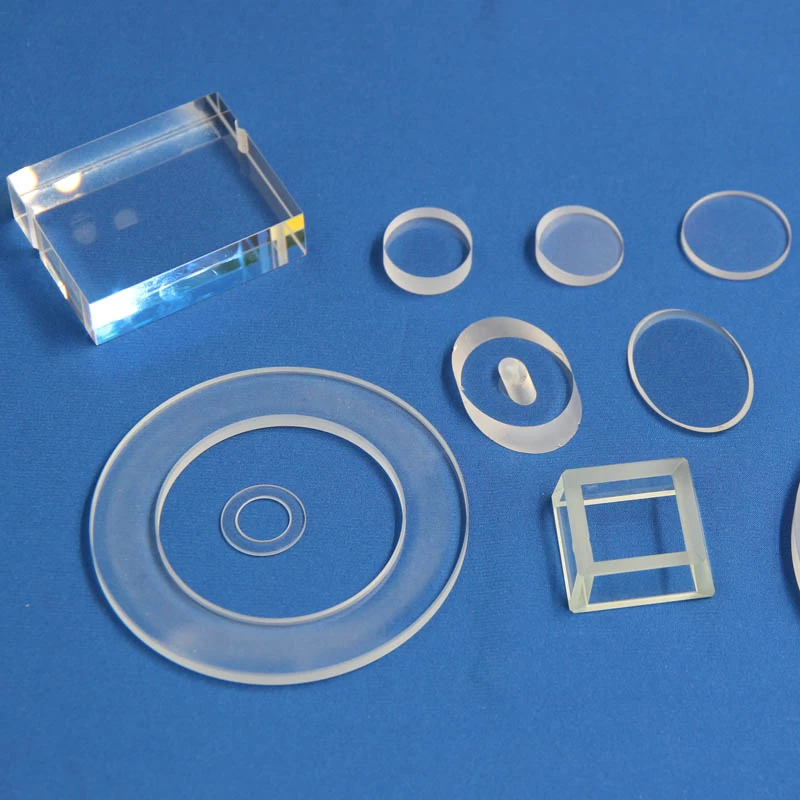

Fused Silica Windows and Quartz Windows

Fused Silica (Quartz) has transparent range from 185-2500nm. The refractive index is 1.4858 at 308nm.
There are many company offer Fused Silica material like Corning, Heraeus, Schott, Nikon NIFS and Ohara. WTS could make fused silica products according the the design by Coring 7980, 7979, 7978, Heraeus Spectrosil 200, HOQ310, Suprasil 300 and JGS2, JGS2, JGS3 etc.

Fused Silica material Advantages
1. Good UV and IR transmission
2. Low thermal expansion, providing stability and resistance to thermal shock over large temperature excursions
3. Wider thermal operating range
4. High laser damage threshold

Fused silica could be used for Fused Silica windows, Fused Silica lenses, prisms and mirror substrates.


Fused Silica Windows SPECIFICATION:

Material: UV VIS IR grade Fused Silica
Dimension Tolerance: +0.0, -0.1mm
Thickness Tolerance: ± 0.1mm
Surface quality: 60/40(Standard), 10/5(High Precision)
Clear Aperture: >85%
Flatness: λ(Standard), λ/10(High Precision) per 25mm@633nm
Parallelism: 1' (Standard),  10" (High Precision)
Bevel: <0.25mm X 45°
Coating: Upon requirement

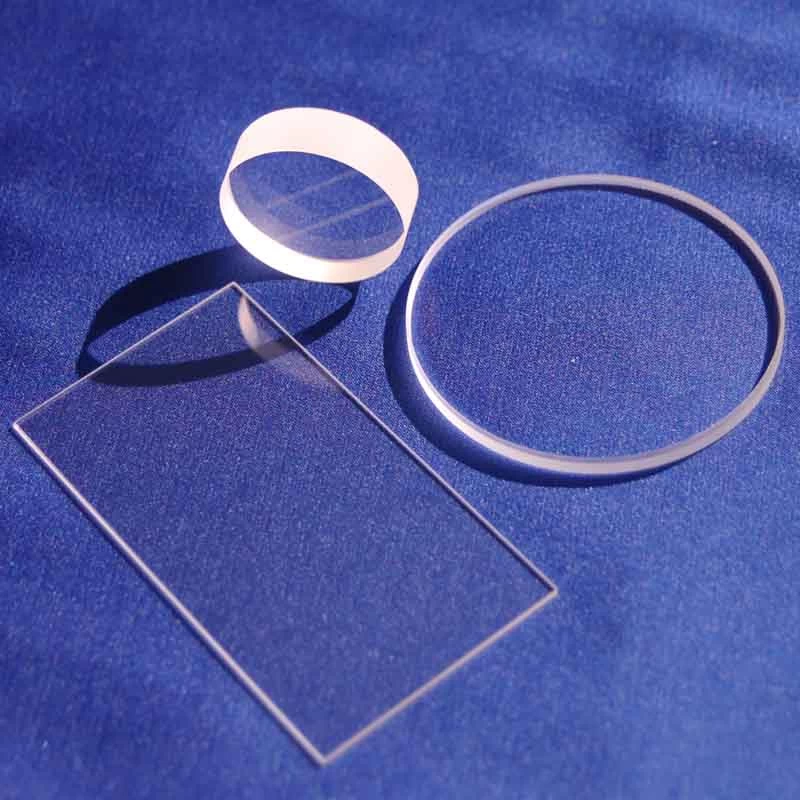

Fused Silica Windows

Typical Sizes:
Round Shape Φ5.0; Φ10.0 ; Φ12.7; Φ15.0; Φ20.0;
Diameter(mm): Φ25.4; Φ30.0; Φ38.1; Φ50.8; Φ76.2
Square Shape: 5.0x5.0 ; 10.0x10.0 ; 15.0x15.0 ;
WxH(mm) 20.0x20.0; 25.0x25.0; 50.0x50.0
Thickness(mm): 0.5; 1.0; 1.5; 2.0; 3.0;

4.0; 5.0; 6.0; 8.0; 10.0


"High Quality ,Quick Response,Timely Delivery" ! WTS Photonics Technology Co., Ltd, your best Fused Silica Windows and Quartz Windows Supplier !
