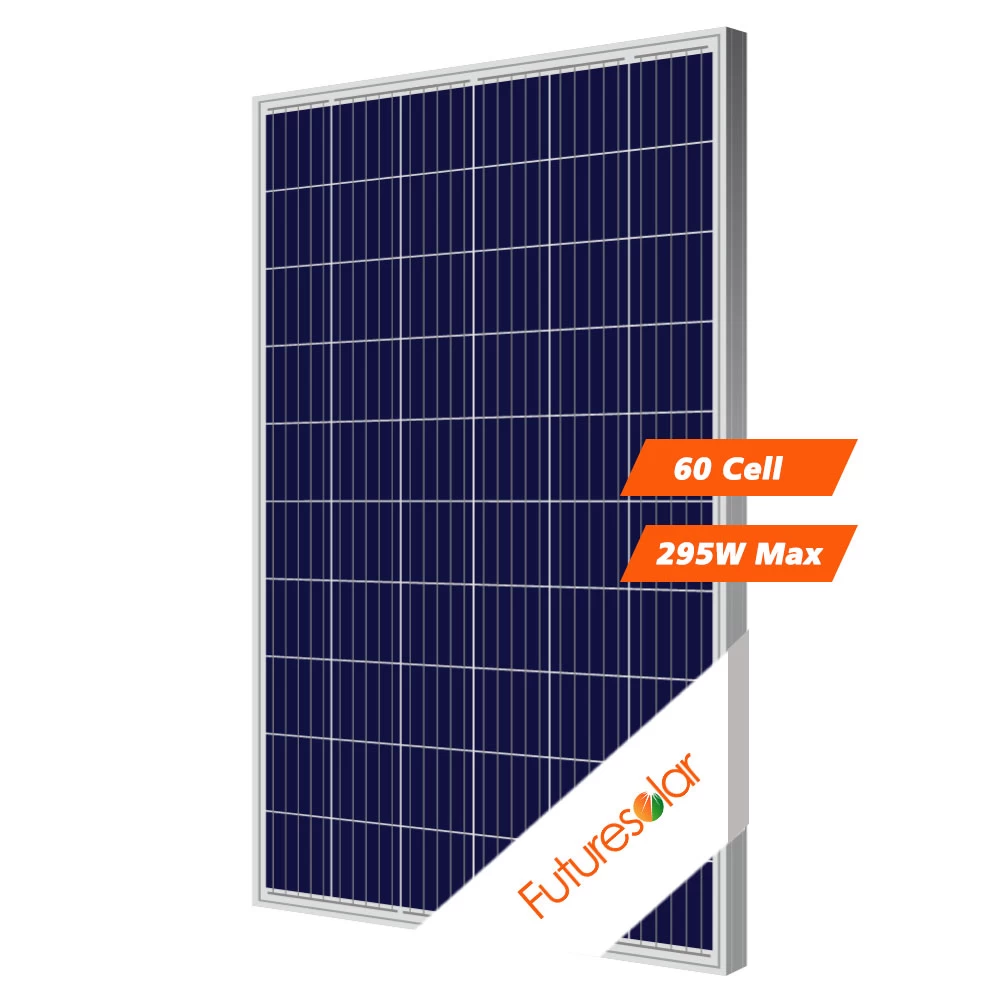

Futuresolar 60 cell poly solar panels 260w 265w 270w 275w 280w 285w 290w

Reliable

    Multi-layered sheet laminations to enhance cell performance and provide a long service life.

    Bypass diodes to minimize power drop and ensure excellent performance in low-light environments.

    TPT back sheet ensures smooth performance over a long period of time.

Durable

    Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa).

    Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades.

    Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance.



Versatile

    Can be used for many different applications; ideal option for residential and commercial rooftop systems.

    Ground mount compatible.

    Compatible with on-grid and off-grid inverters.

ELECTRICAL DATA(STC)

Module	FSMxxxP-60    xxx = 275 280 285 290 295
Peak Power Watts(Pmax/W)	275	280	285	290	295
Power Output Tolerance(W)	0 ~ +5
Maximum Power Voltage(Vmp/V)	31.2	31.4	31.6	31.8	32.0
Maximum Power Current(Imp/A)	8.82	8.92	9.02	9.12	9.22
Open Circuit Voltage(Voc/V)	38.5	38.7	39.0	39.2	39.5
Short Circuit Current(Isc/A)	9.25	9.34	9.45	9.56	9.66
Module Efficiency (%)	16.8	17.1	17.4	17.7	18.0

STC:Irradiance 1000W/m2,Cell Temperature 25°C,Air Mass AM1.5.

Detail

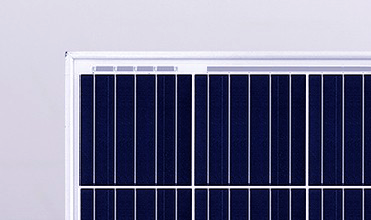

Glass

> Anti-reflective glass
> Translucency of normal luminance is increased by 2%

> Module efficiency is increased by 2%

> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

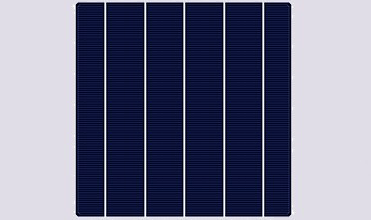

Solar Cell

> High Efficiency PV Cells

> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

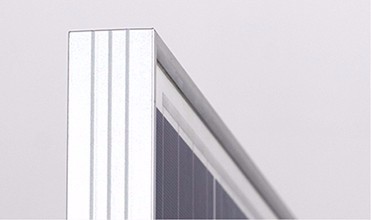

Frame

> Conventional frame

> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection

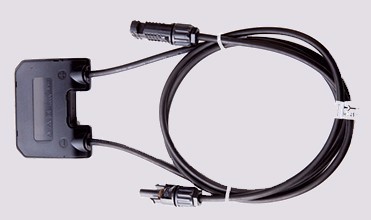

Junction box

> Conventional standalone edition and engineering custom edition

> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
