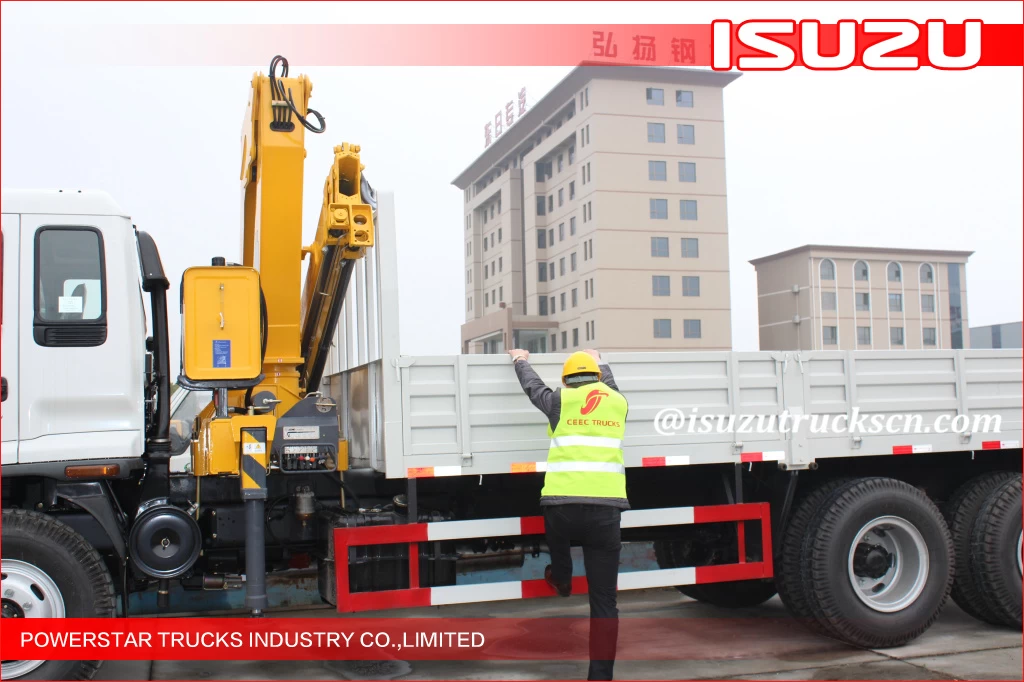

FVZ ISUZU 14 Ton Telescopic Boom Truck Mounted Crane Driven By Hydraulic
ISUZU 14 Ton Telescopic Boom Truck Mounted Crane Driven By Hydraulic, 35 T.M
- Name: Telescopic boom crane, Telescoping boom crane, Hydraulic truck crane
- Max Lifting Capacity: 14 ton
- Max Lifting Moment: 35 t.m
- Max Oil Flow of Hydraulic System: 63 L/min
- Max.Lifting height: 17.5meters
- Brand: XCMG
- Crane Weight: 4845 kg
- Oil Tank Capacity: 160 L
- Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope, telescopic boom coupling technology
- Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.
Description:
Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.
Telescopic boom crane SQ14SK4Q is lifting capacity is 14tons moment is 35 T.M.
Applications:
It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.
Specifications:
Model
|
SQ14SK4Q
|
Unit
|
Max Lifting Capacity
|
14000
|
kg
|
Max Lifting Moment
|
35
|
T.M
|
Recommend Power
|
30
|
kw
|
Max Oil Flow of Hydraulic System
|
63
|
L/min
|
Max Pressure of Hydraulic System
|
26
|
MPa
|
Oil Tank Capacity
|
160
|
L
|
Rotation Angle
|
All Rotation
|
Crane Weight
|
4845
|
kg
|
Installation Space
|
1300
|
mm
|
Choice of Chassis
|
ISUZU |
SQ14SK4Q Lifting capability diagram
|
Working radius(m)
|
2.5
|
5
|
8
|
11
|
13
|
15.5
|
Lifting capacity(kg)
|
14000
|
6000
|
3500
|
2300
|
1800
|
1200
|
