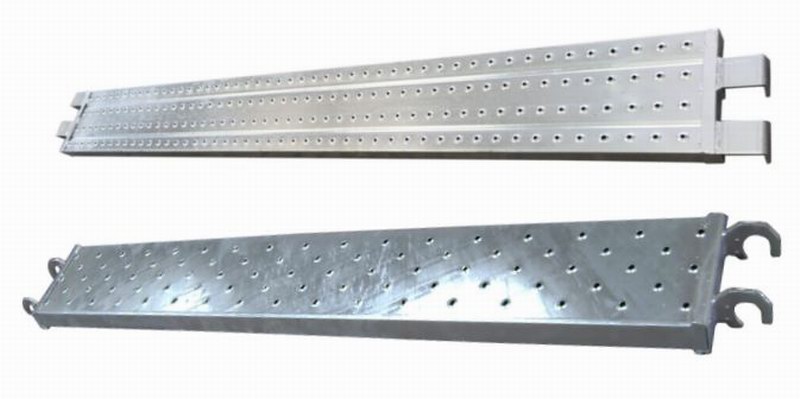

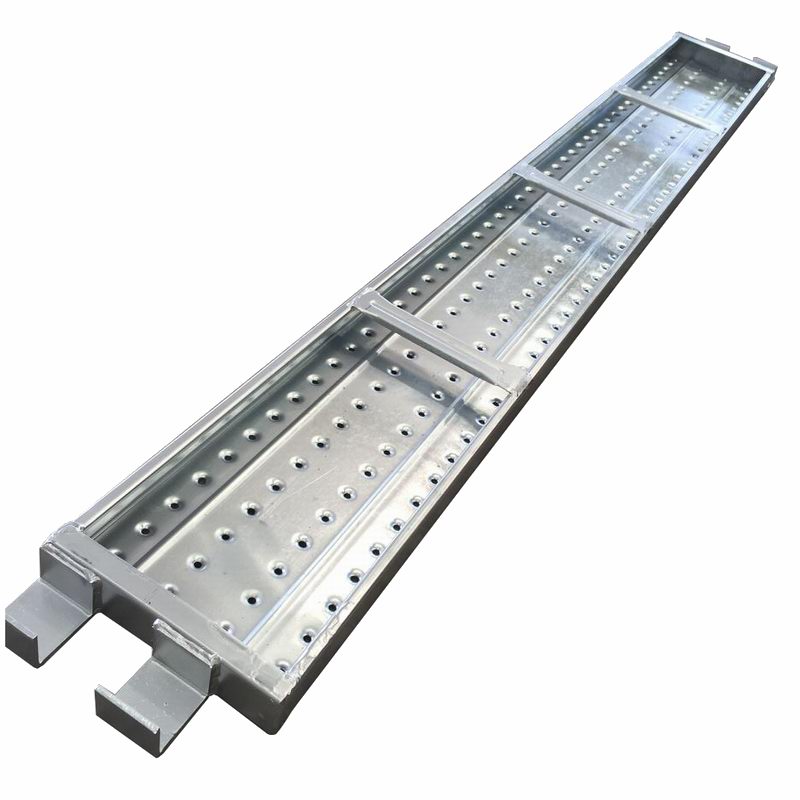

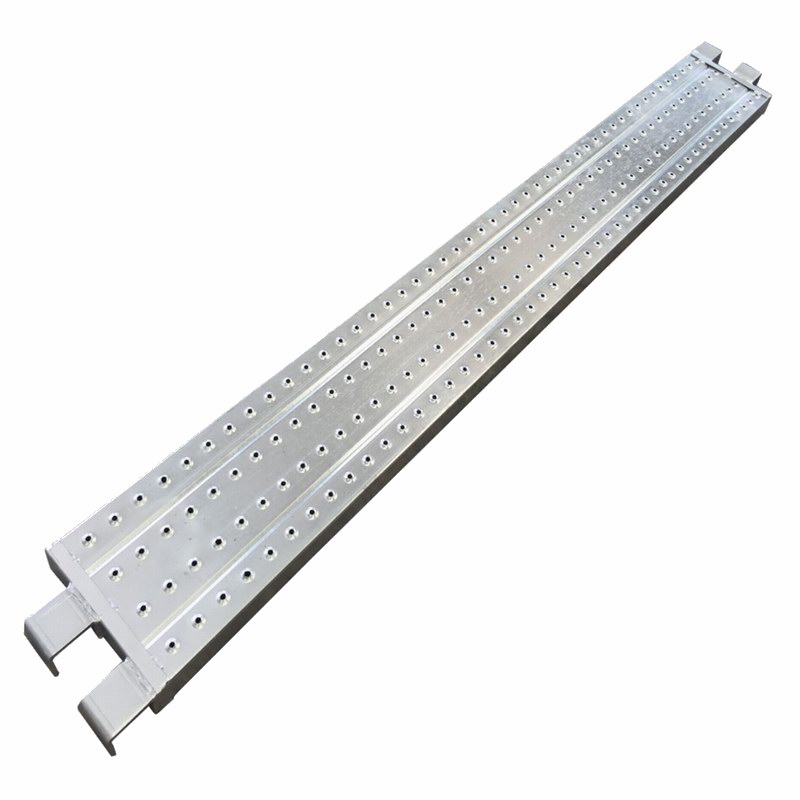

Hook Lock Steel Plank, 240mm (9.5") wide, t=1.8mm
|
Code
|
Size (Metric)
|
Size (Imperial)
|
Weight(kg)
|
Weight(lbs)
|
|
SP1.24305
|
240x3048mm
|
9.5" x 10'
|
17.81
|
39.27
|
|
SP1.24255
|
240x2548mm
|
9.5" x 8'-4 5/16"
|
15.04
|
33.16
|
|
SP1.24244
|
240x2438mm
|
9.5" x 8'
|
14.47
|
31.91
|
|
SP1.24213
|
240x2134mm
|
9.5" x 7'
|
12.88
|
28.40
|
|
SP1.24205
|
240x2048mm
|
9.5" x 6'-8 5/8"
|
12.43
|
27.41
|
|
SP1.24183
|
240x1829mm
|
9.5" x 6'
|
11.28
|
24.87
|
|
SP1.24152
|
240x1524mm
|
9.5" x 5'
|
9.54
|
21.04
|
|
SP1.24122
|
240x1219mm
|
9.5" x 4'
|
7.80
|
17.20
|
|
SP1.24105
|
240x1048mm
|
9.5" x 3'-5 1/4"
|
6.90
|
15.21
|
|
SP1.24091
|
240x914mm
|
9.5" x 3'
|
6.20
|
13.67
|
|
SP1.24061
|
240x610mm
|
9.5" x 2'
|
4.61
|
10.17
|
* Material: Steel grade Q235. Plank thickness 1.8mm,width 240mm, height 45mm.
* Surface Treatment: Hot dip galvanized is recommended, pre-galvanized, powder coated or painted is also available.

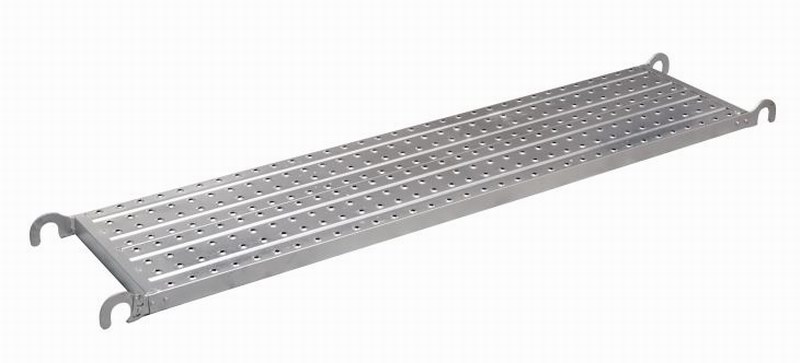

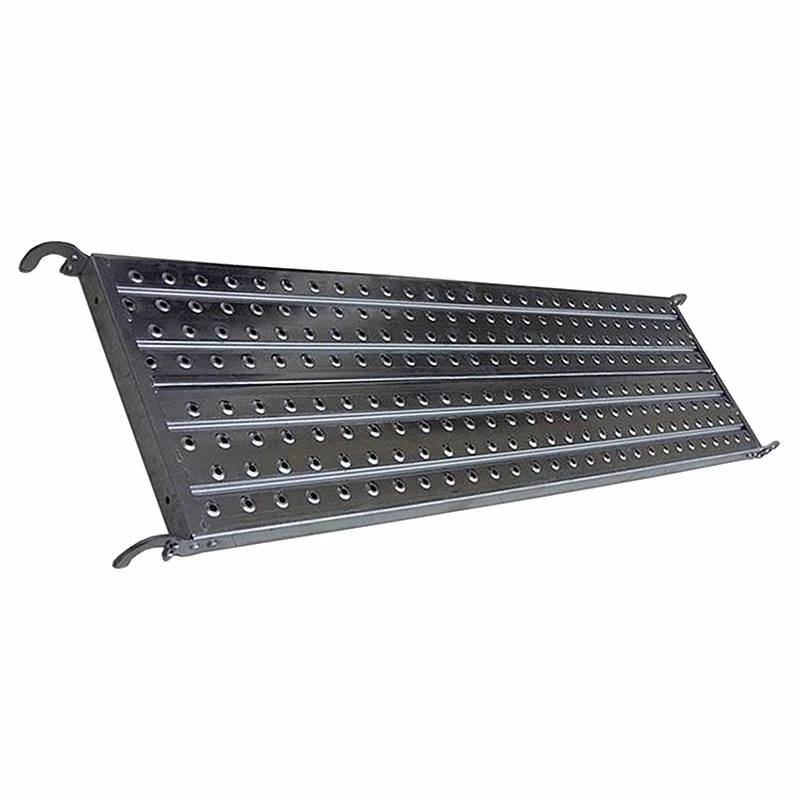

Hook Lock Steel Plank, 480mm (18.9") wide, t=1.8mm.
|
Code
|
Size (Metric)
|
Size (Imperial)
|
Weight(kg)
|
Weight(lbs)
|
|
SP1.48305
|
480x3048mm
|
18.9" x 10'
|
34.34
|
75.72
|
|
SP1.48255
|
480x2548mm
|
18.9" x 8'-4 5/16"
|
28.80
|
63.50
|
|
SP1.48244
|
480x2438mm
|
18.9" x 8'
|
27.65
|
60.97
|
|
SP1.48213
|
480x2134mm
|
18.9" x 7'
|
24.47
|
53.96
|
|
SP1.48205
|
480x2048mm
|
18.9" x 6'-8 5/8"
|
23.57
|
51.97
|
|
SP1.48183
|
480x1829mm
|
18.9" x 6'
|
21.28
|
46.92
|
|
SP1.48152
|
480x1524mm
|
18.9" x 5'
|
17.78
|
39.20
|
|
SP1.48122
|
480x1219mm
|
18.9" x 4'
|
14.27
|
31.47
|
|
SP1.48105
|
480x1048mm
|
18.9" x 3'-5 1/4"
|
12.49
|
27.54
|
* Material: Steel grade Q235. Plank thickness 1.8mm,width 480mm, height 45mm.
* Surface Treatment: Hot dip galvanized is recommended, pre-galvanized, powder coated or painted is also available.

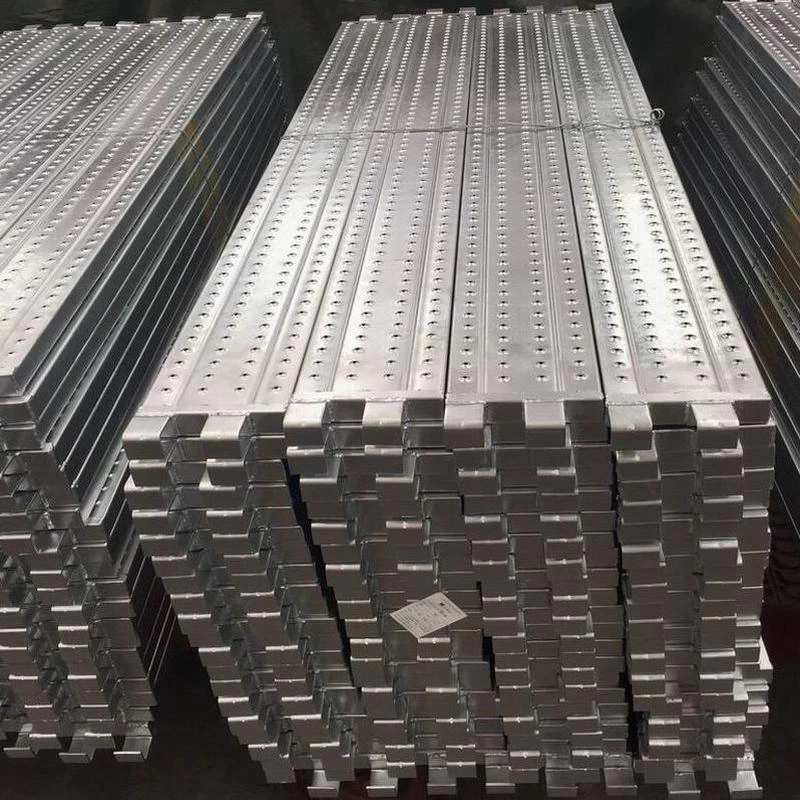

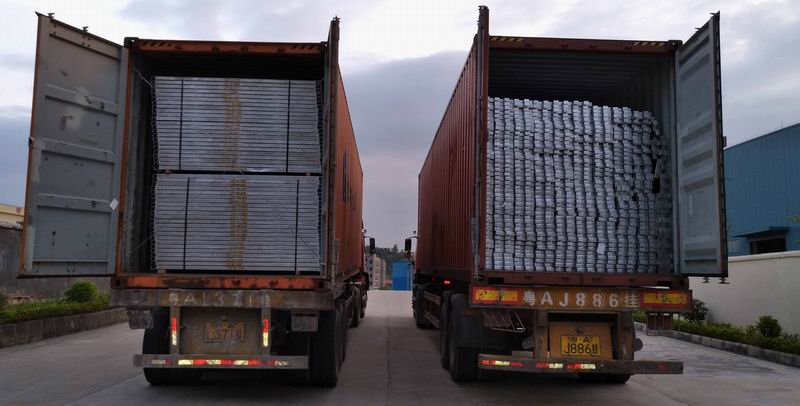

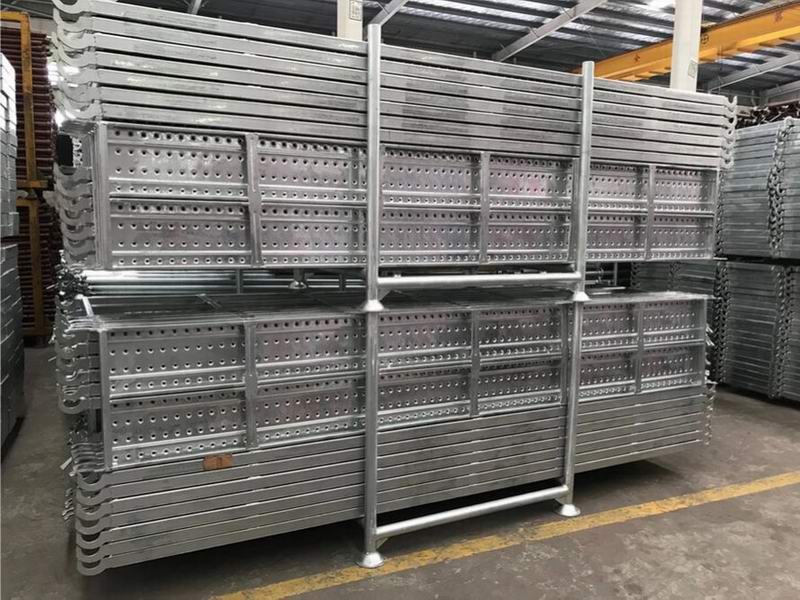

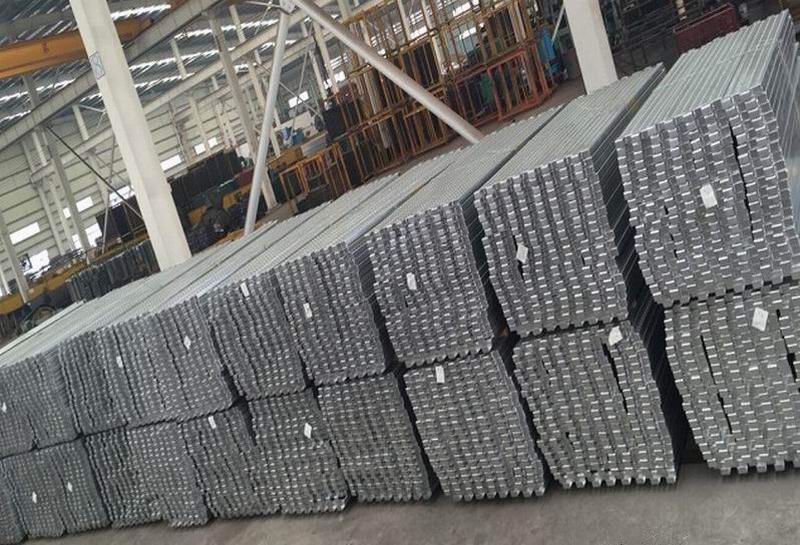

Scaffolding Planks Paackages and Container Loading.
