Garment Double axis 4 head automatic laser cutter

Garment Double axis 4 head automatic laser cutter is with double separate axis and auto feeding system, suitable for cutting roll to roll fabric、embroidered textile、cloth、felt、garment. Big working area. Auto feeder is optional. One head, two head, four head and six head are optional.



0086-18815980123  0086-13599259031  Boming laser


Garment Double axis 4 head automatic laser cutter is with feeding steel mesh, used for whole roll fabric textile. It had better work with auto feeder to achieve the continous feeding and cutting. The auto feeder is optional.

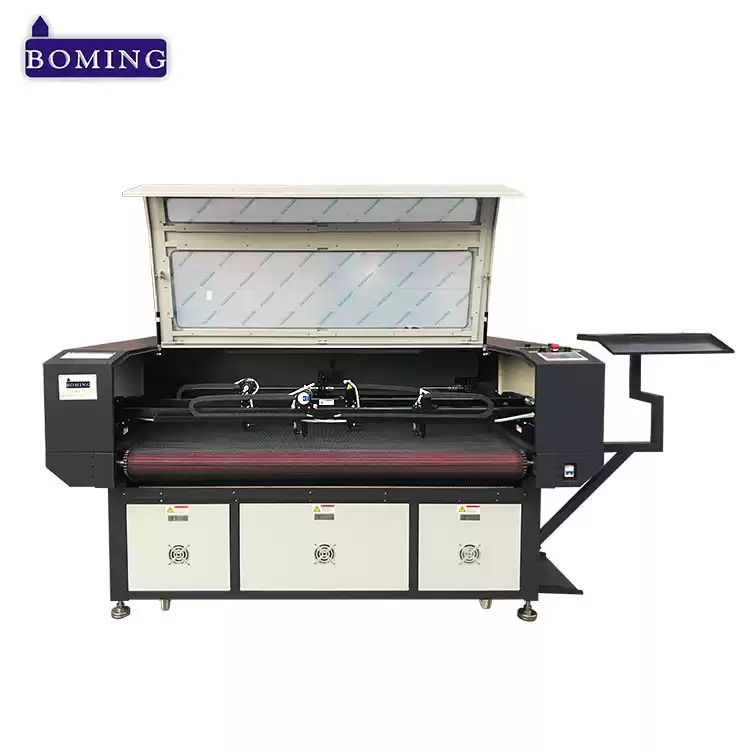

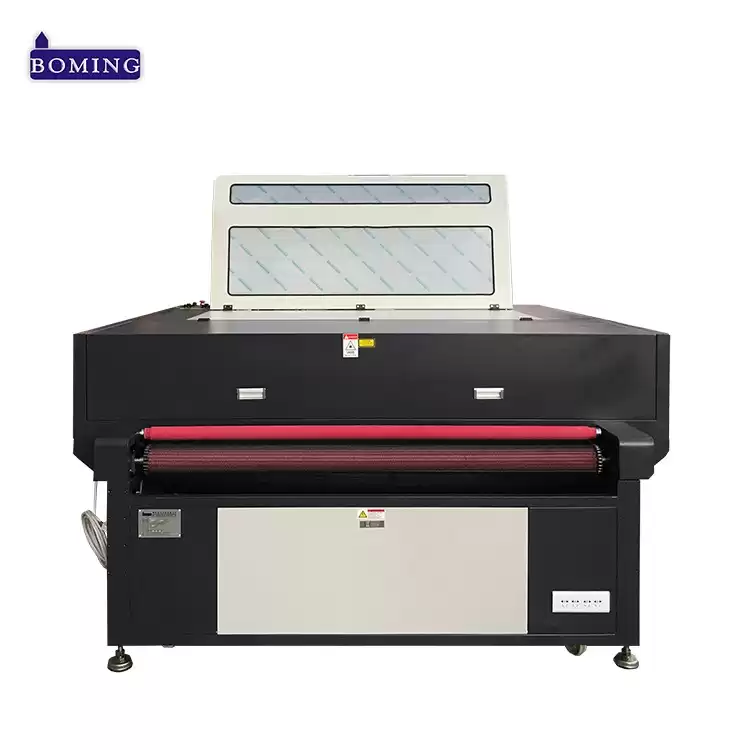

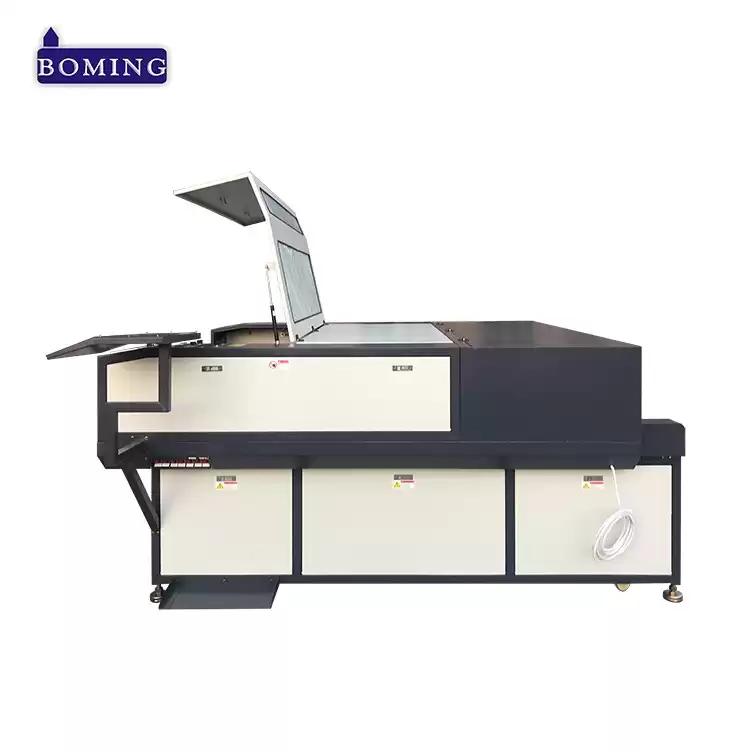

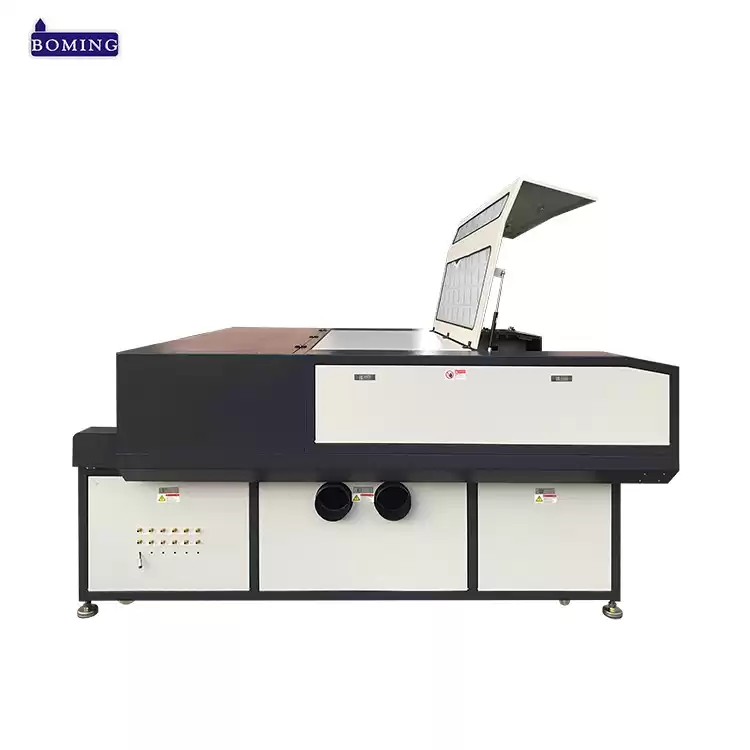

Machine pictures:

automatic feeder laser cut machine

automatic feeding laser cutting machine 1610

2 axis laser cutting machine

4 head 2 axis laser cutter




Features: of Garment Double axis 4 head automatic laser cutter

1、It feeds the materials fully automatically, the worker can operate several machines at the same time.

2、The follow-up rolling platform is developed indepently, cutting 2-6 layers according to different materials.It can achieve

more accurate, higher speed, higher efficiency cutting comparing the normal auto feeding machine

3、Choosing the 150W-180W big capacity laser tube can make the machine achieving fast stable and continous cutting in 24 hours.



Software advantages: of laser cutting machine auto feeding

1) Software comes with memory option. Machine can work offline without computer.

2) Designs can be sent to machine with one step function.

3) Most kind of design format can be accepted.

4) Machine can be accessed and operated directly from CorelDRAW software.

5) Software has powerful auto backup function.





Applicable Industries: of roll fabric laser cutting machine

The machine is widely used in the industries such as shoe,bag, garment,toy,furniture, advertisement,car accessories,sports Accessories,etc.




Applicable Materials: of laser machine cutting clothing

Suitable for the materials, such as plush,fur,paper board,insole,PU,cloth,microfiber leather,

microfiber  PU,etc.




Technical Parameters:of garment laser cutting machine

Laser Capacity

100W 130W 150W CO2 glass tube

Processing Area(mm)

1600*1000 1800*1000 1800*1200 1800*1400 2000*1000 2000*1200mm

Positional Accuracy

±0.05mm

Working way

Auto feeing

Cutting Speed

0-60m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror




Sample show:

auto feed laser cutter



How to choose our machine:


The following information is important for us to recommend you the suitable models of laser cutting/engraving machine:


1) What materials and size will you cut?


2) What laser capacity and working area size you need?


3) What industries are you in, shoe, clothes, handicraft or advertisement?


4) Your destination port, it is for checking shipping price.


5) Other relative information, please let me know.


 Professional roll-to-roll work platform, digital workflow simplifies operation. Efficient and flexible, it significantly improves processing efficiency and eliminates the cost of mechanical tools such as traditional dies. In addition, the roll to roll laser cutting machine is easy to operate, and can be operated by one person, which effectively reduces labor costs.


Our Service:

1) Guarantee for whole machine for 1 year.

2) Lifetime maintenance is free of charge.

3) We will provide the consumable parts at an agency price when you need replacement.

4) We offer English manual and CD for installing, operation and maintaining.

5) Our technician can be sent to your company to install the machine and train your workers if necessary.



   Auto feeding laser cutting machine is designed for fashion industry, which needs to cut fabrics continuously for production orders, with automatic feeding system and stainless steel conveying table, auto feeding laser cutting machine greatly saves manpower and production time, thus shortening the delivery of the factory period, expanded production capacity.


Our UV Laser PCB Cutting Machine is an excellent configuration for cutting PCBs with high precision, capable of cutting complex circuit boards with extremely tight tolerances. Our UV Laser PCB Cutting Machine is also very popular in the market due to its excellent performance.


Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.

automatic feed laser cutting machine
