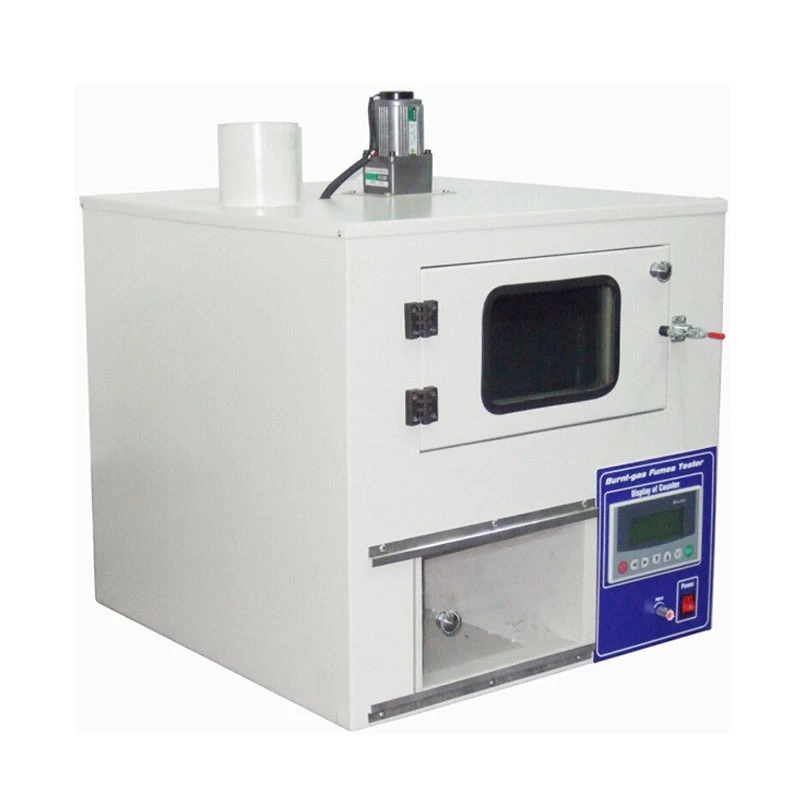

AG43-Gas Fume Chamber
Application Of Gas Fume Chamber
Gas Fume Chamber exposes the sample to the nitrogen oxides produced by the combustion of the gas and observe the color change after a certain period of time.
Standards Of Gas Fume Chamber
ATCC 23, ISO 105 G02, BS EN ISO 105-G02
Key Specification Of Gas Fume Chamber
|
Model
|
AG43 Gas Fume Chamber
|
|
Rotating
speed
|
2r/min.
|
|
Test
box
|
SUS material
|
|
Inner
diameter
|
550mm
|
|
Sample
size
|
40mmx 100mm
|
|
Test
temperature
|
＞ 60 degrees
|
|
Sample
mounting rod
|
6 pcs
|
|
Combustion
gas
|
Butane
|
|
Power
supply
|
AC220V, 50/60HZ
|
|
Dimension
|
64x63x83cm
|
|
Weight
|
80kg
|
Accessories Of Gas Fume Chamber
|
Standard
Accessories
|
Rotating test
stand
|
1 set
|
|
Standard
burner
|
1 set
|
|
Stainless
steel exposure box
|
1 set
|
|
Exhaust
equipment
|
1 set
|
