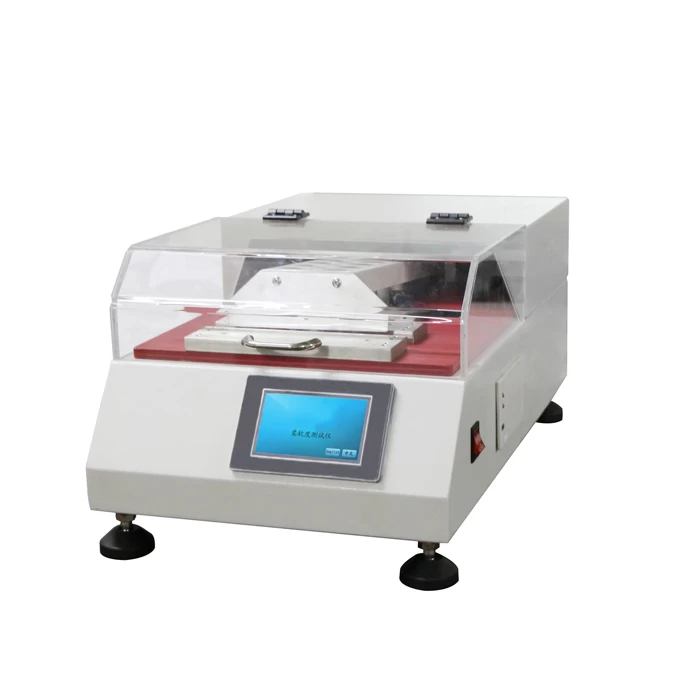

GB/T 8942 Softness Tester GT-CN05
Product Introduction
Application:
Softness tester can be used to determine the softness of high-grade toilet paper, tobacco flakes, fiber paper products and other materials.
|
Feature
- The instrument measuring device adopts the principle of leverage to reduce the data fluctuation caused by vibration.
- The transmission is stable, precise and accurate. It adopts a stepper motor, which is simple and reliable.
- High-resolution color touch screen display, simple and convenient operation.
- High-precision force sensor, the test result is more accurate.
- The test process shows real-time force values and graphs for easy to observation.
- The test group reached 30*20 times, sufficient space to save data, horizontal and vertical data were memorized separately.
- Data report function is perfect for query and printing.
- Equipped with a micro thermal printer, it can analyze and count the results of each group of data, with low noise and clear fonts.
Key Specifications
Model
|
GT-CN05
|
Testing Range
|
10-1000mN
|
Testing Resolution
|
0.1mN
|
Indication Error
|
≤±1% FS (20% or less of the upper limit of the measurement is allowed to exceed the specified range 1mN)
|
Indicative Variability
|
＜1%
|
Test Head Stroke
|
(1.2±0.5)mm (can be set)
|
Test Head Press-in Depth
|
8mm+0.5mm
|
Slit Width
|
5mm; 6.35mm; 10mm; 20mm (Width error should not exceed ±0.05mm)
|
Testing Speed
|
(1.2±0.24)mm/s
|
Printer
|
Thermal printer
|
Power Supply
|
AC 220V±10V 50Hz
|
Dimensions
|
560×340×250mm
|
Weight
|
25kg
|
Standards
|
GB/T 8942
|
