Product Role

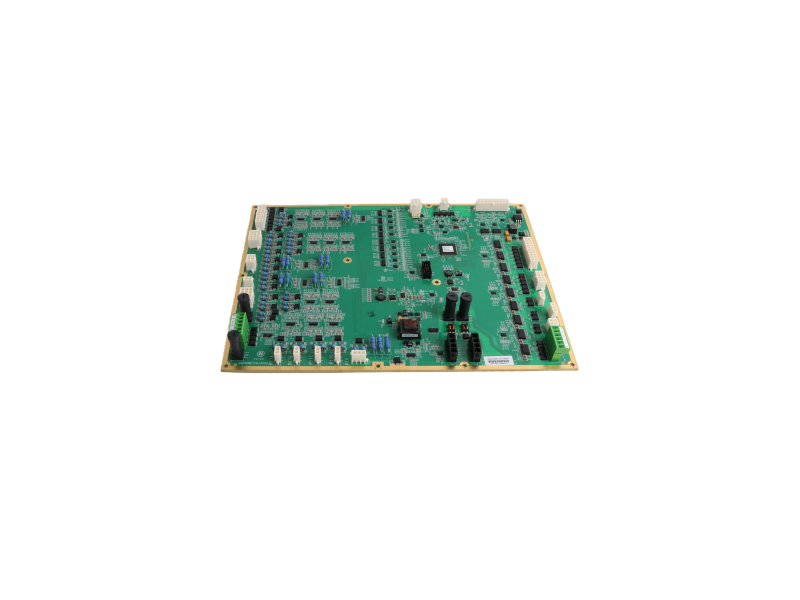

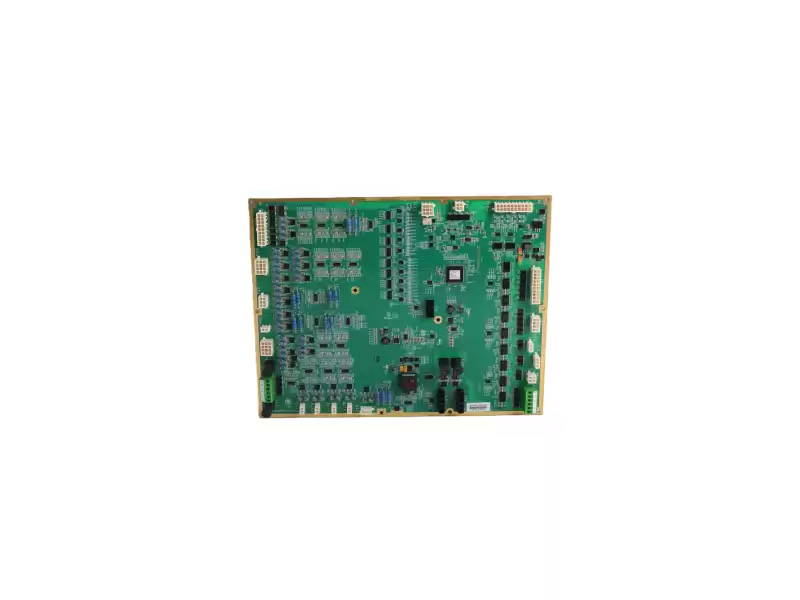

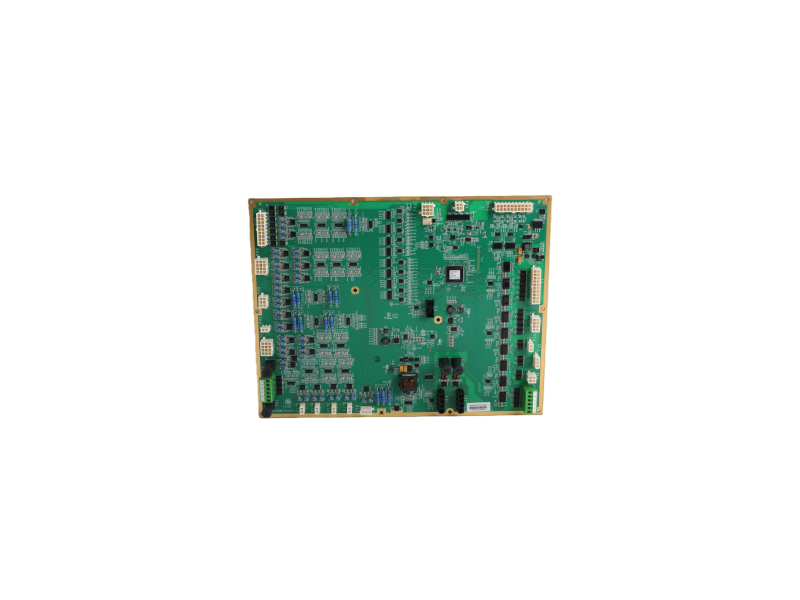

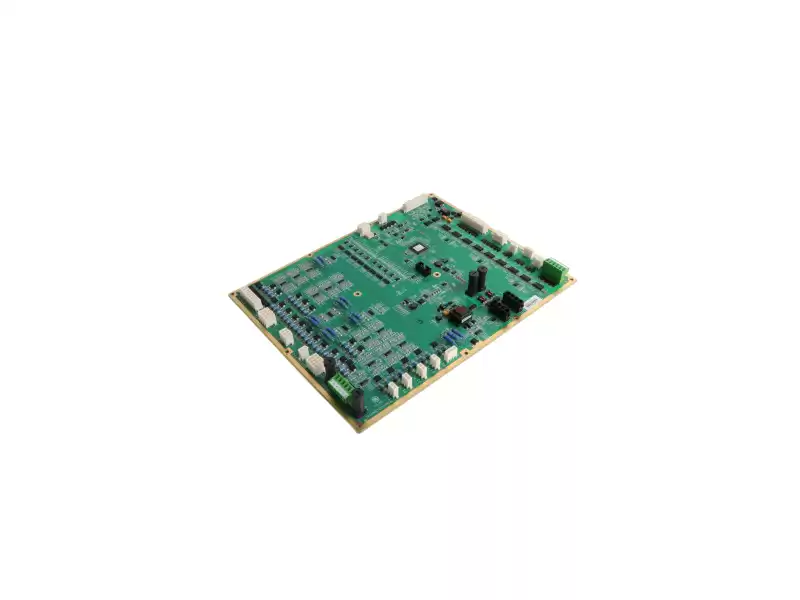

IS200WETCH1ABA is a “high-speed digital & mixed-signal” I/O terminal board in the GE Speedtronic Mark VI family. Mounted in gas/steam-turbine control cabinets, it handles fast discrete and analog marshalling, isolation and driving—one performance level above the IS200WETBH1BAA.
Key Specifications
|
Item
|
Value
|
Remarks
|
|
Supply
|
24 VDC ±10 %
|
On-board DC/DC isolated
|
|
Current / ch
|
1 A max
|
Relay & solid-state mix
|
|
Channels
|
16, software-selectable
|
DI / DO / AI
|
|
Isolation
|
250 V ch-ch; 1 500 V ch-system
|
1 min hi-pot
|
|
Temperature
|
–40 … +70 °C
|
Conformal-coated
|
|
Size
|
100 × 120 × 50 mm
|
DIN or VME mount
|
|
Weight
|
0.5 kg
|
With heatsink bracket
|
Hardware Highlights
1. 32-bit floating-point DSP co-processor, 5 ms scan of all channels
2. Dual Ethernet 10/100 M, triple-redundant ring ready
3. 65-pin header array—drop-in compatible with existing WETB cabling
4. On-board self-test LEDs; remote read-out of contact life & fuse status
Typical Uses
Fast turbine trip-valve position feedback, antisurge-solenoid driving, generator breaker status, or general 16-point mixed I/O in process-industry SIS loops.
