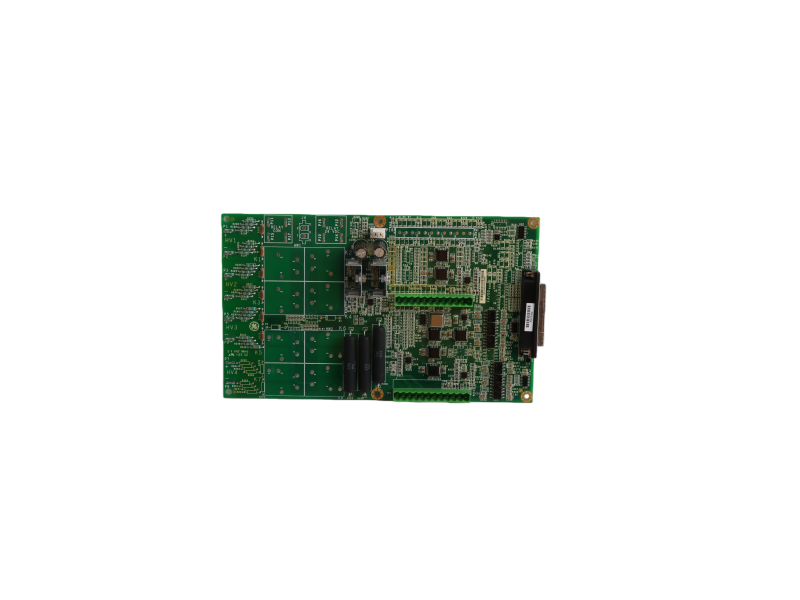

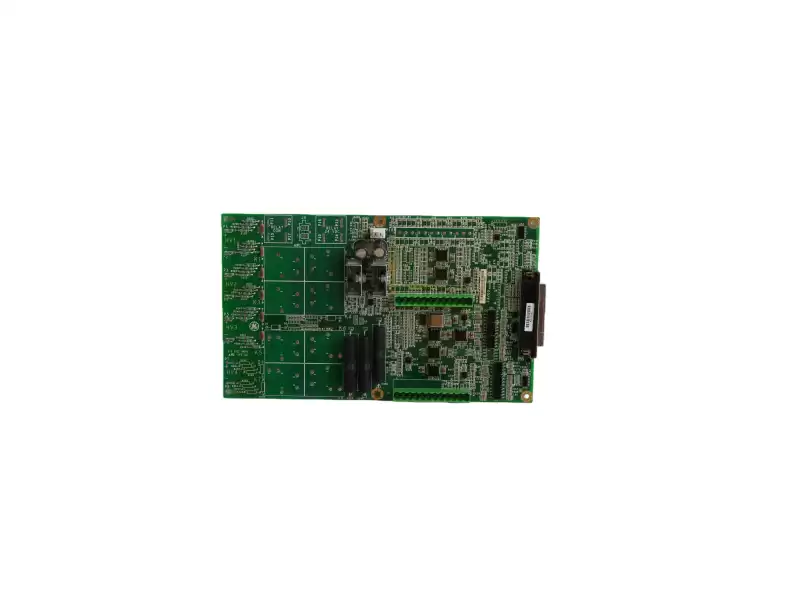

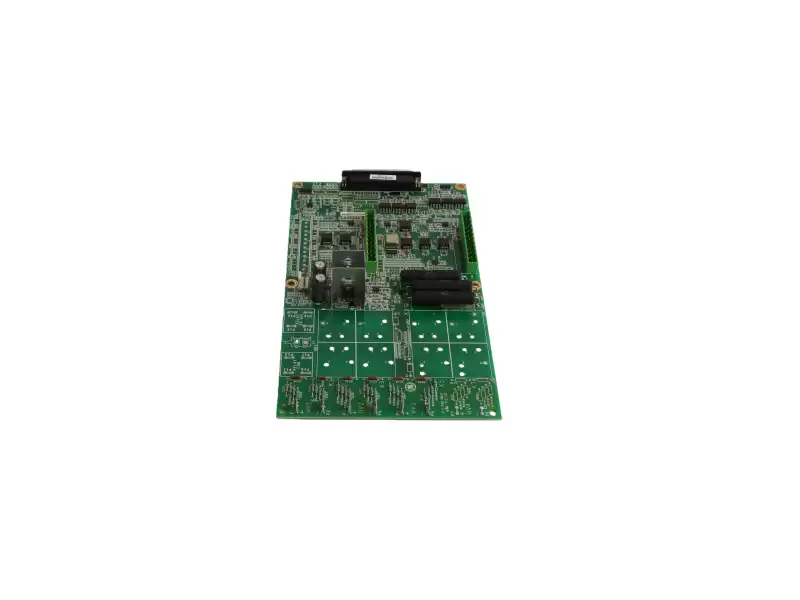

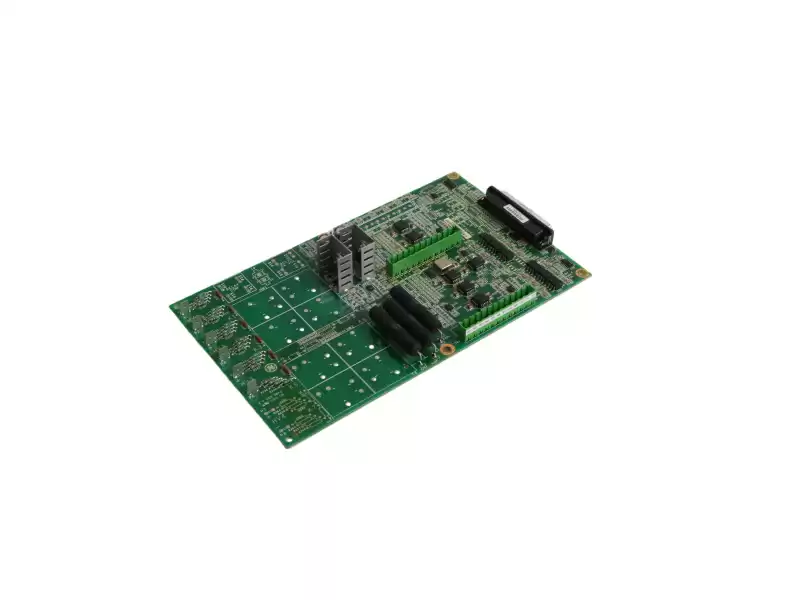

GE IS210AEAAH3BKE Turbine Terminal Board

1. Quick Facts

· Part number: IS210AEAAH3BKE

· Series: Mark VI / VIe

· Type: RST analog I/O terminal board

· Channels: up to 24 differential analog inputs (depends on fitted I/O Pack)

· Field terminals: 48 rising-clamp points, max. 6 mm²

· Connectors: 3× 40-pin vertical headers (J1/J2/J3) to I/O Pack

· Isolation: 1 500 V rms channel-to-ground

· Surge withstand: IEEE C37.90.1 4 kV fast transient

· Operating temperature: –25 … +70 °C

· Certifications: CE, UL, RoHS

2. Key Features & Application

· Plug-and-play replacement for IS210AEAAH3A/B/C or earlier IS200AEAAH1 cards.

· High-density DIN-rail footprint saves 25 % cabinet space.

· Built-in MOV & gas-tube surge protection extends I/O Pack life in harsh EHV plants.

· Gold-plated contacts <5 mΩ after 500 insertions.

· Supports both 125 V dc and 24 V dc field wetting (jumper-selectable).

· Typical use: gas/steam turbine control, wind-turbine pitch & main control, power-plant protection system (PPS) analog expansion.

3. Compatible I/O Packs

· IS200DSPXH1B – 14-bit differential analog input

· IS200AEPAH1B – 16-bit high-precision analog input

· IS200EPSMG1A – 28 Vdc power distribution
