1. Core Function

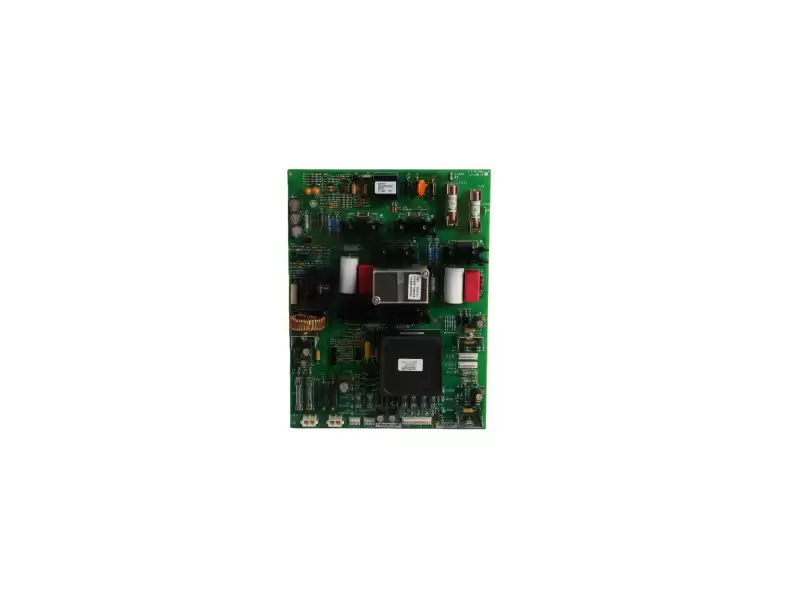

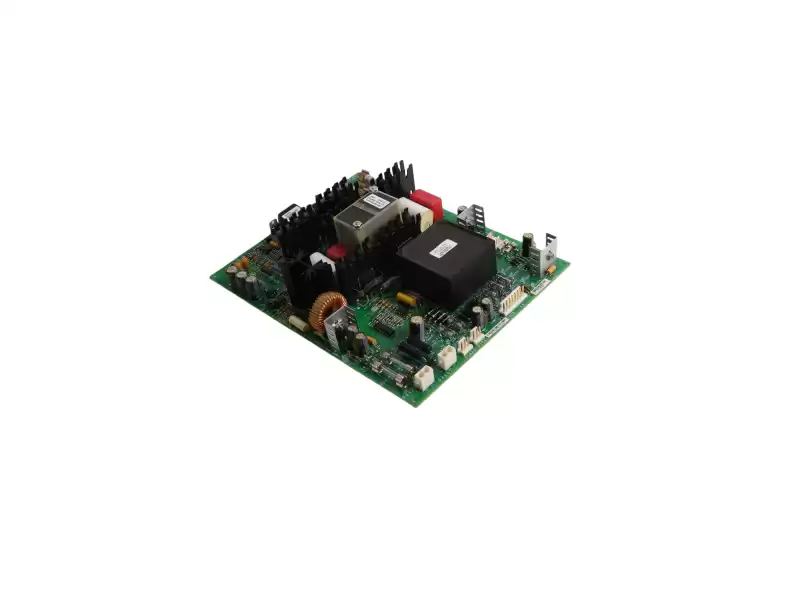

IS210AEPSG1BCB is a thermocouple terminal board for the Mark VI system.
It collects mV-level signals from field thermocouples, performs cold-junction compensation (CJC) and open-wire detection, then delivers high-accuracy temperature data to the Mark VI controller.
2. Key Specifications
|
Item
|
Value
|
|
Input channels
|
12 differential thermocouple
|
|
Cold-junction comp.
|
Built-in Pt100, ±0.5 °C
|
|
Accuracy
|
0.1 % F.S. (incl. CJC error)
|
|
Isolation
|
1,500 V rms channel-to-earth
|
|
Dimensions
|
122 mm × 82 mm × 60 mm
|
|
Weight
|
0.38 kg
|
|
Operating temp.
|
−40 … +85 °C
|
|
Certifications
|
CE / UL / CSA, SIL 2 capable
|
3. Typical Applications
Bearing-temperature loops on gas & steam turbines, gearbox-oil monitoring in wind turbines, multi-zone high-temperature reactors, etc.
4. Interchangeability
Drop-in replacement for earlier IS210AEPSG1Bx releases; only I/O map needs updating—no re-wiring required.
