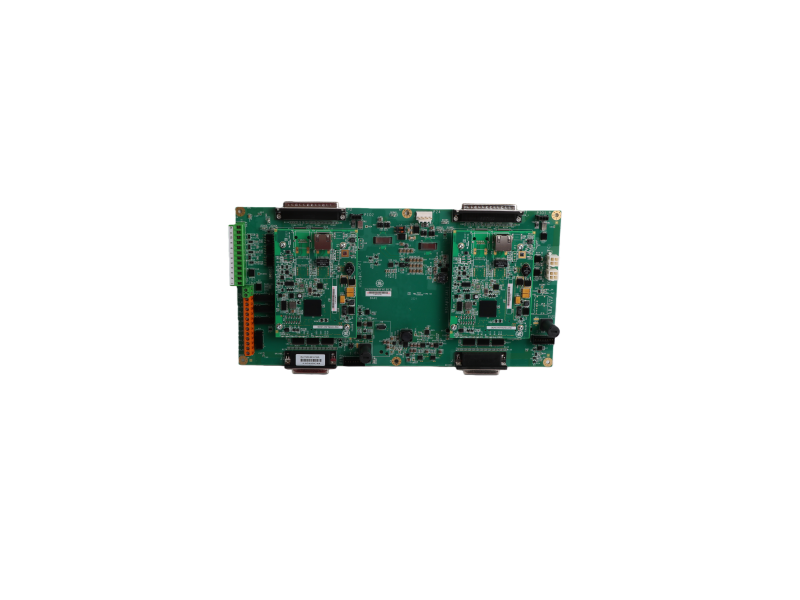

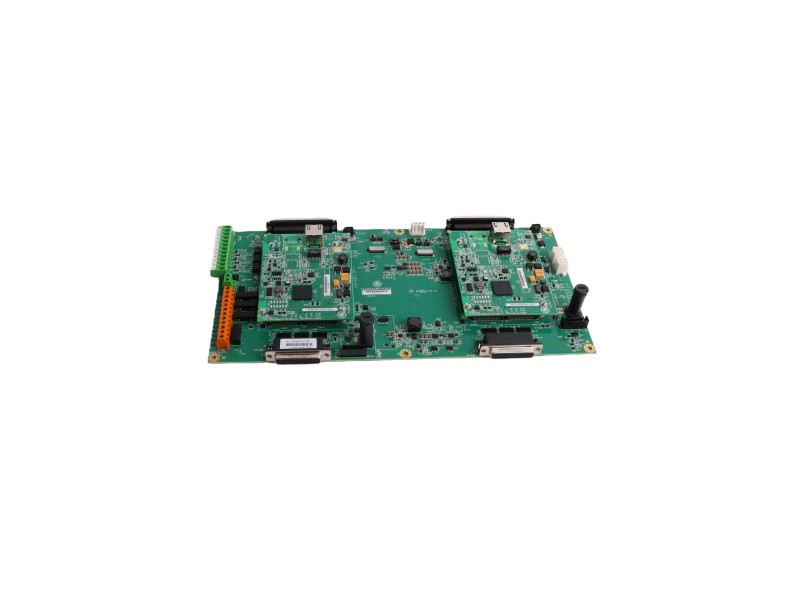

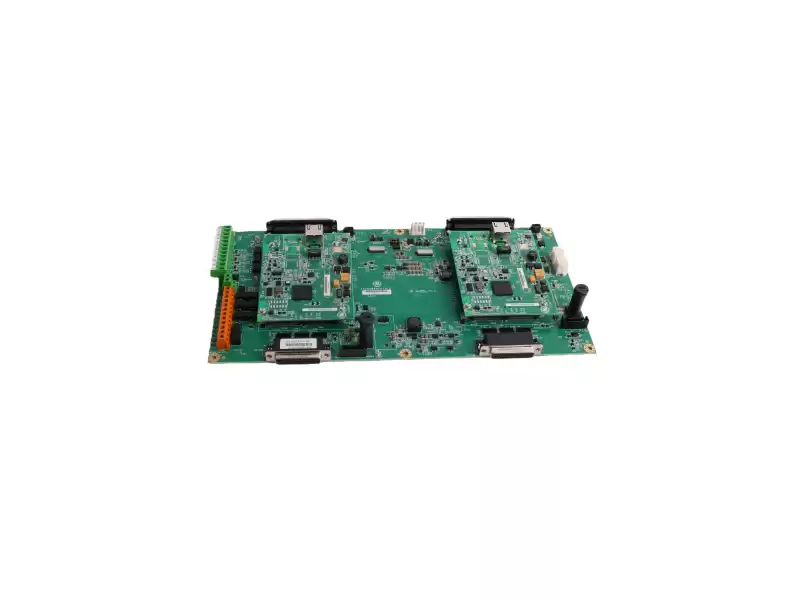

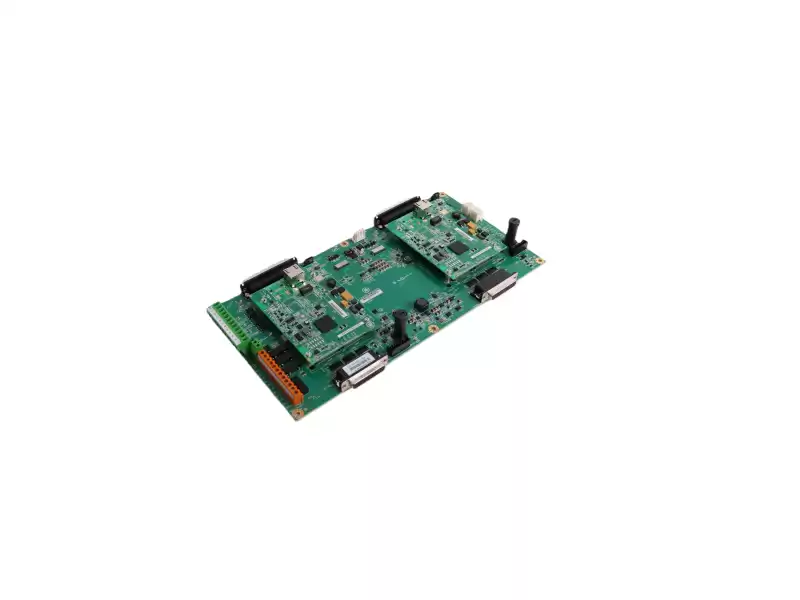

Model: IS215REBFH1BA
Family: GE Mark VI / VIe Turbine Control System
Function: 16-channel, isolated, 24 VDC digital output board
Origin: Made for GE Energy, refurbished & new-stock supplied by PLC Autocontroller, Xiamen, China.
1.Key Electrical & Mechanical Data
|
Parameter
|
Specification
|
|
Output channels
|
16, individually fused & LED status
|
|
Rated voltage
|
24 VDC (18…32 V operating)
|
|
Max load / ch
|
0.5 A, 12 W resistive (derate 50 % > 55 °C)
|
|
Off-state leakage
|
≤ 50 µA @ 32 V
|
|
Switching time
|
< 1 ms ON, < 1 ms OFF (resistive)
|
|
Isolation
|
1 000 V RMS field-to-logic
|
|
Power dissipation
|
≤ 6 W (all ch ON, 0.5 A)
|
|
Connector
|
DC-37 plug, matches Mark VI rack back-plane
|
2.Compatibility Matrix
|
System Rack
|
Firmware
|
Revision Note
|
|
Mark VI (IC660ELB921)
|
G.03.04
|
Plug-and-play, no DIP switch
|
|
Mark VIe (UCVE)
|
H.01.05
|
Requires SVI config “DO-24V-16”
|
3.Micro-FAQ
Q: Can IS215REBFH1BA hot-swap?
A: Yes—Mark VI rack supports online insertion; follow GE GEH-6421 procedure.
Q: Difference vs. IS200REBFH1BA?
A: IS215 uses higher-temp tantalum caps & copper bus-bar for 85 °C rating; firmware identical.
