1. Market Position

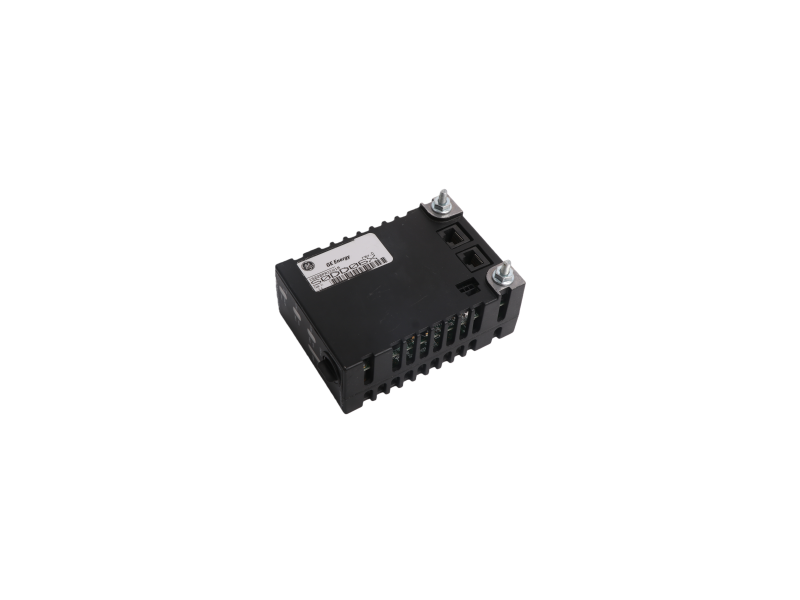

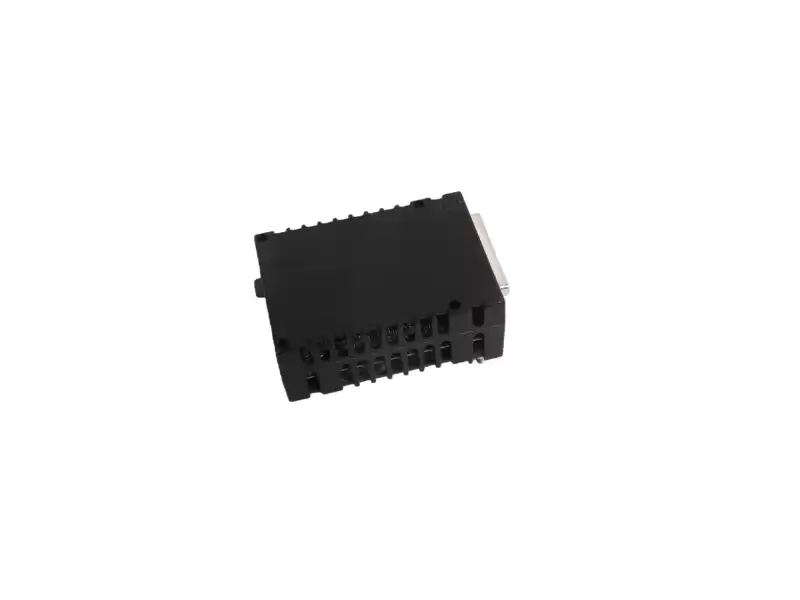

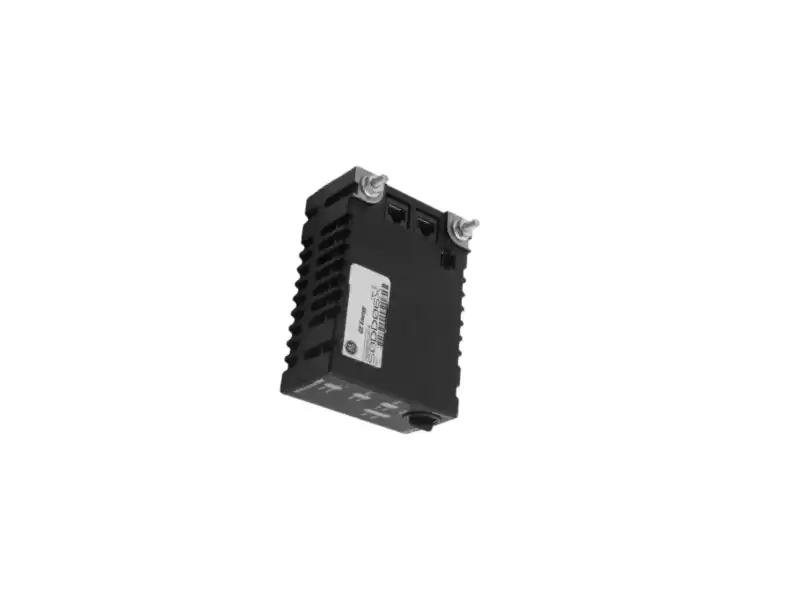

IS220PAICH1A is the “economy” analog input slice in the Mark-VIe ecosystem, used to acquire slow-changing signals such as temperature, pressure and flow for gas/steam turbines, compressors and small energy blocks.
2. Hardware Specification
² Channels: 16 differential analog inputs (current or voltage, jumper-free)
² A/D resolution: 16-bit Σ-Δ
² Input ranges: ±10 V, 0-20 mA, 4-20 mA, TC, RTD (Pt100)
² Scan rate: 10 ms for all channels
² Isolation: field-to-logic 1 500 V rms (overall)
² Accuracy: ±0.1 % of span @ 25 °C
² Protection: ±30 V over-voltage, 40 mA over-current, 1 kV surge
² Front ports: 1×RJ-45 (100 Mbps IONet), 3×LEDs (Run / Fail / Status)
² Power: +5 V @ 0.8 A from back-plane; 4 W typical
3. Typical Applications
ü Gas-turbine exhaust temperature spread monitoring
ü Steam-turbine bearing RTD temperature acquisition
ü 4-20 mA tank level loops in chemical plants
ü Pressure feedback for small wind-turbine pitch systems
4. Shipping Policy (PLC Autocontroller)
Ø Fast dispatch: in-stock units ship within 3 business days after payment
Ø World-wide couriers: DHL, UPS, FedEx, TNT, EMS – or your own forwarder
Ø Secure packaging: anti-static bag + foam + double-wall carton; special crate on request
Ø Same-day hand-over: orders cleared before 6 pm local time leave our warehouse the same day
Ø Tracking: sent immediately once goods are picked up
Ø Delivery time: typically 7-15 business days to any continent
Ø After delivery: please confirm receipt by e-mail so we can activate the warranty counter
