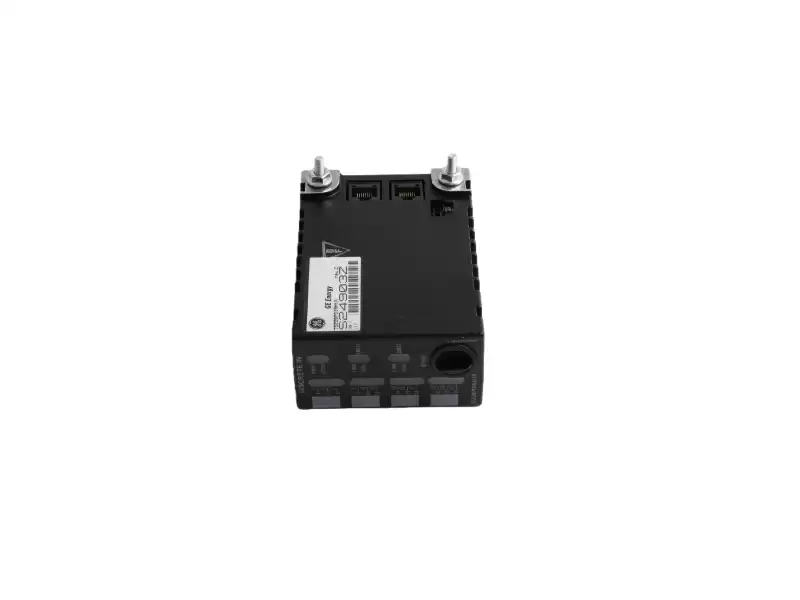

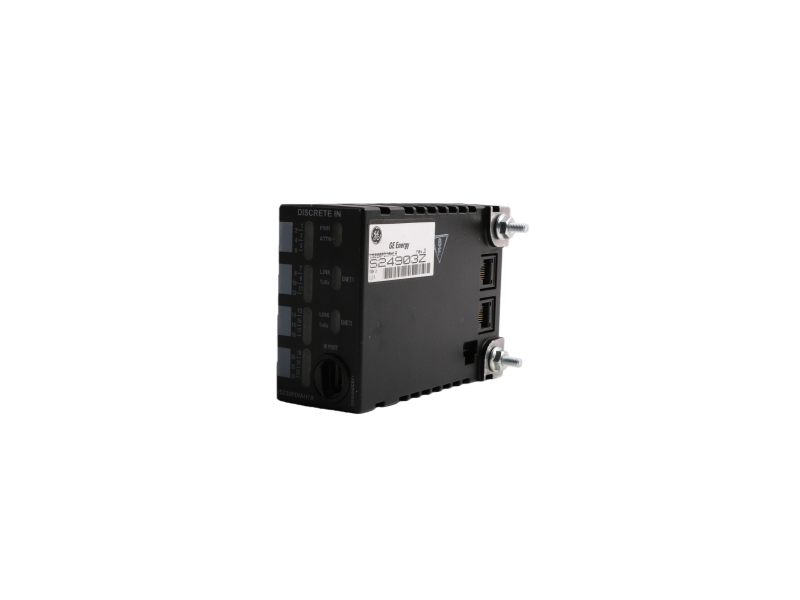

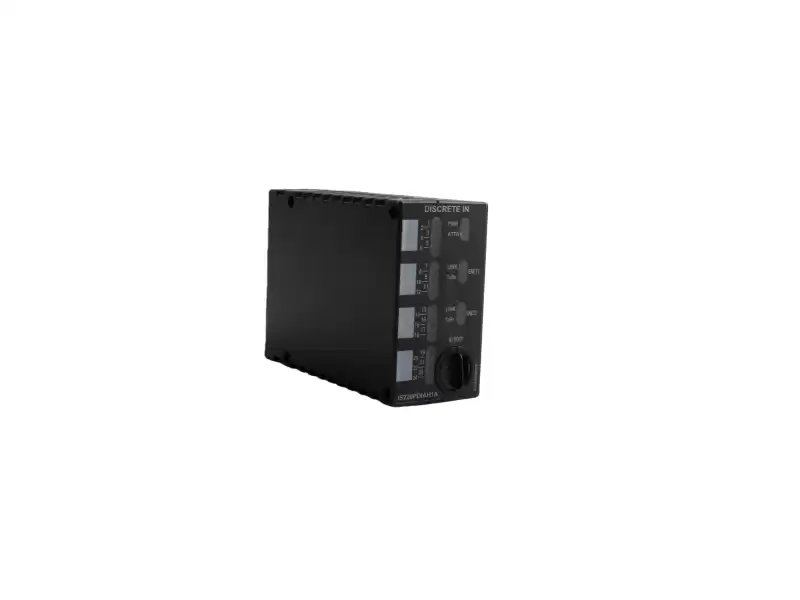

IS220PDIAH1AD IS220PDIAH1A | Contact Input (I/OPack) module
Sales Manager May | Email: ab@mooreplc.com | Phone: +8618106909650 (WhatsApp) | WeChat: dcsfcs
About IS220PDIAH1AD IS220PDIAH1A
Model: IS220PDIAH1A/IS220PDIAH1AD — GE MarkVIe series Discrete Contact Input (I/OPack) module. This module
is used in GE control systems to handle discrete contact signal inputs and features high channel count and high reliability.
Key Specifications
|
Electrical
|
Value
|
|
Model Name:
|
IS220PDIAH1AD IS220PDIAH1A
|
|
Manufacturer:
|
Honeywell
|
|
Module Type:
|
Contact Input (I/OPack) module
|
|
Number of Channels:
|
24-channel discrete contact input
|
|
Operating Temperature Range:
|
-40°C to +70°C (IS220PDIAH1A)
|
|
Input Isolation:
|
Optically isolated to 1500V (all inputs)
|
|
Network Interface:
|
Dual RJ45 Ethernet ports (100Mbps) supporting redundant architecture
|
|
Nominal Input Voltage:
|
24VDC nominal (typical)
|
Module features and advantages
|
High input channel capacity: 24 channels for centralized reception of discrete signals, helping to save installation space and cabling costs.
|
|
Strong industrial-grade environmental adaptability: Wide temperature range (-40°C to +70°C), high isolation level, suitable for harsh industrial environments.
|
|
Network redundancy design: Dual Ethernet port design supports redundant communication, improving system reliability.
|
|
High modularity and compatibility: As a GE MarkVIe system module, it can be quickly integrated with terminal boards, backplanes, and control systems.
|
Application Areas
u This module is suitable for various industrial automation scenarios, especially in projects requiring a large number of discrete signal inputs, high system reliability, and long maintenance cycles. For example:
u Discrete signal input interface for turbine control systems in power plants (gas, steam).
u Discrete signal acquisition such as alarms, valve status, and relay feedback in petrochemical, oil refining, and chemical processes.
u Field switching signal input to DCS/PLC in water treatment, wastewater treatment, and metallurgical process control systems.
u As an I/O extension or replacement spare part for GE MarkVIe systems in system upgrade and equipment modification projects.
All items are factory-new, sealed, and supported by PLC Autocontroller with same-day quotation and worldwide overnight delivery.
