1. Core Identity

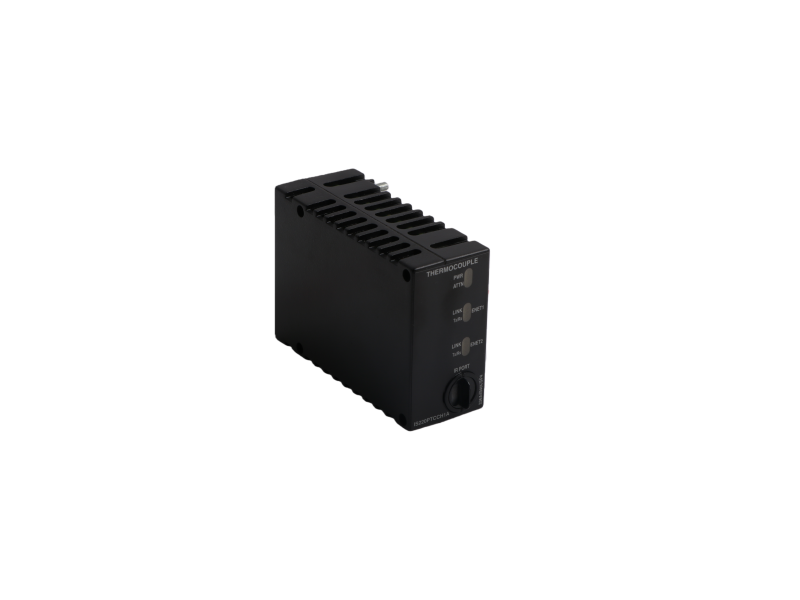

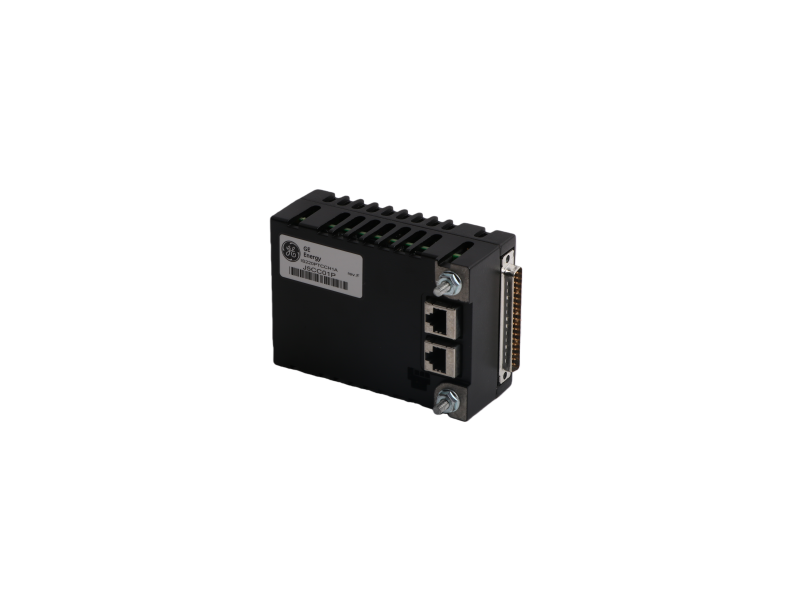

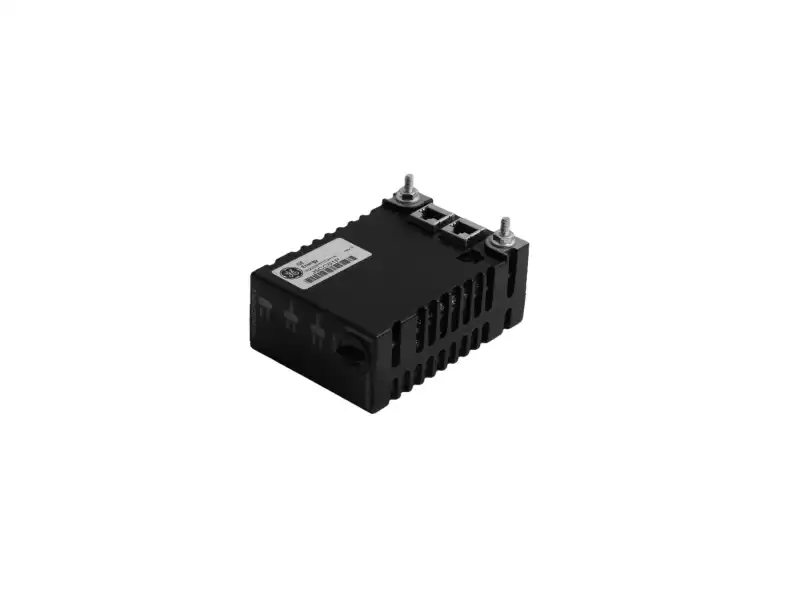

IS220PTCCH1A is a Mark VIe-series thermocouple/RTD input slice that turns millivolt-level field signals into high-resolution temperature data for gas- and steam-turbine control loops.
2. Key Specifications
|
Channel count
|
24 differential TC or 12 3-wire RTD
|
|
Sensor types
|
J, K, E, T, N, S, R, B / Pt100, Ni120, Cu10
|
|
Accuracy
|
±0.1 % of reading ±0.2 °C (RTD) ; ±1 °C (typical TC)
|
|
Update rate
|
50 ms per channel (configurable 10–1000 ms)
|
|
Isolation
|
250 V rms channel-to-bus, 1500 V surge
|
|
Diagnostics
|
Open-circuit, short-circuit, over-range flags pushed to controller
|
3. Mechanical & Power
Ø Slice width: 38 mm – single-slot on Mark VIe I/O rack
Ø Power draw: 3.8 W @ 28 VDC (redundant feed from rack back-plane)
Ø Operating temp: –40 … +70 °C (G3 conformal coating standard)
4. Typical Application Hook-up
TC extension wires land on removable spring-clamp terminal blocks (IS-TBCH1A); cold-junction compensation is integrated in the slice, eliminating external ice-point references.
5. Certifications & Compliance
CE, UL 508, ATEX Zone 2, IEC 61000-6-2/4, IEEE 1613 (electric substation), RoHS.
6. Why Stock at PLC Autocontroller
Same-day shipment from Xiamen warehouse; every unit burned-in on a live Mark VIe rack and shipped with serialized test report. 20-year turbine spares expert—talk to an application engineer in English or Chinese within 10 min.
|
